Summary of Contents for Mobel Linea LOK

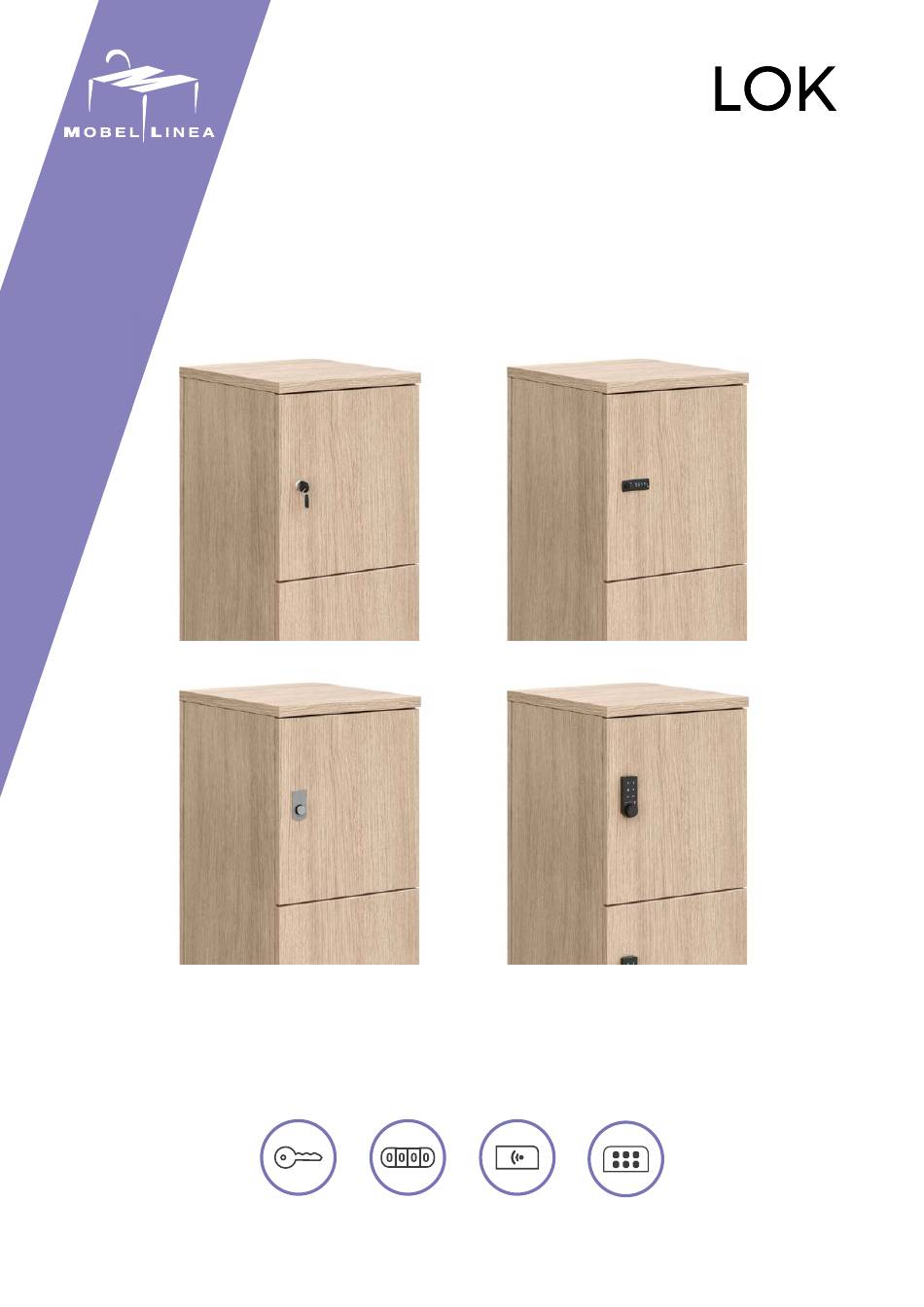

  • Page 1 USER MANUAL...
  • Page 2: Manual Key Lock

    KEY LOCK MANUAL KEY LOCK: Use the key to open and close the locker. Each key is sent with a copy. Keys copy: contact export department to require a copy of the keys or to add more lockers. Material: plastic, zamak and steel. HOW TO USE THE LOCK: 90º...
  • Page 3 4-DIGIT LOCK MANUAL COMBINATION LOCK: Dials Reset position Combine 4 digits. The factory preset combination is: 0 0 0 0 Close position Knob Reset lever Always keep your secret combination Open in a safe and accessible place for future position reference.
  • Page 4 4-DIGIT LOCK HOW TO RETRIEVE THE FORGOT COMBINATION: 90º Step 1 Step 2 Insert and turn the master key Gently rotate each dial until it stops or clockwise 90 degree. there is a “click” sound. Hold the master key firmly while you turn dials to retrieve all correct combinations.
  • Page 5 RFID CARD LOCK Identifier PROXIMITY RFID LOCK: Users can open or close lockers by simply Card pressing a proximity card against the door knob. RFID push button Each card is sent with a copy. Card copy: contact export department to require a copy of the card or to add more lockers. Order number is needed.
  • Page 6: Change Battery

    RFID CARD LOCK Battery life: 30.000 cycles. Technology: Mifare 1K / 13.56mHz. Temperature range: -20º a +70º Protection against solid and liquid substances: IP55 Protection against external impact: IK7. Protection against internal impact: IK9. CHANGE BATTERY: Step 1 Step 2 Step 3 Batteries are placed Release torx screw...
  • Page 7: Electronic Lock

    ELECTRONIC LOCK ELECTRONIC LOCK COMBINATION: Battery compartment 1 to 8 digits combination. Micro USB port Screen, (master key) 1 to 4 The factory preset combination is: 1 2 3 1 2 3 numbers Code can be of 1 to 8 digits and can be confirmed with OK button.
  • Page 8 ELECTRONIC LOCK CHANGE THE CODE: Step 1 Step 2 Press code 1 2 3 1 2 3 + OK. Press again and a red light will blink. NEW CODE Step 3 Step 4 Press the new code, it will be Press and the sound of a long “big”...
  • Page 9: Insert / Change Battery

    ELECTRONIC LOCK INSERT / CHANGE BATTERY: Step 1 Step 1 Pull up gently the battery cover. Place the battery inside the ring with positive side up. Step 2 Step 2 Insert a CR2032 battery. Check the position of the battery. Step 3 Step 3 Pull down gently the battery...
