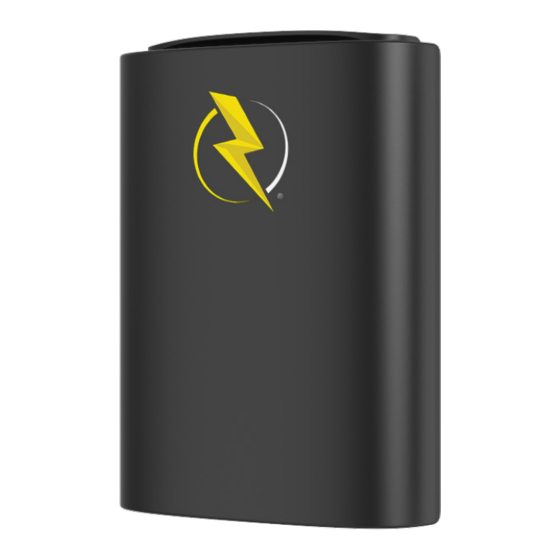

Summary of Contents for Power Tech Generators POWERTECHCS

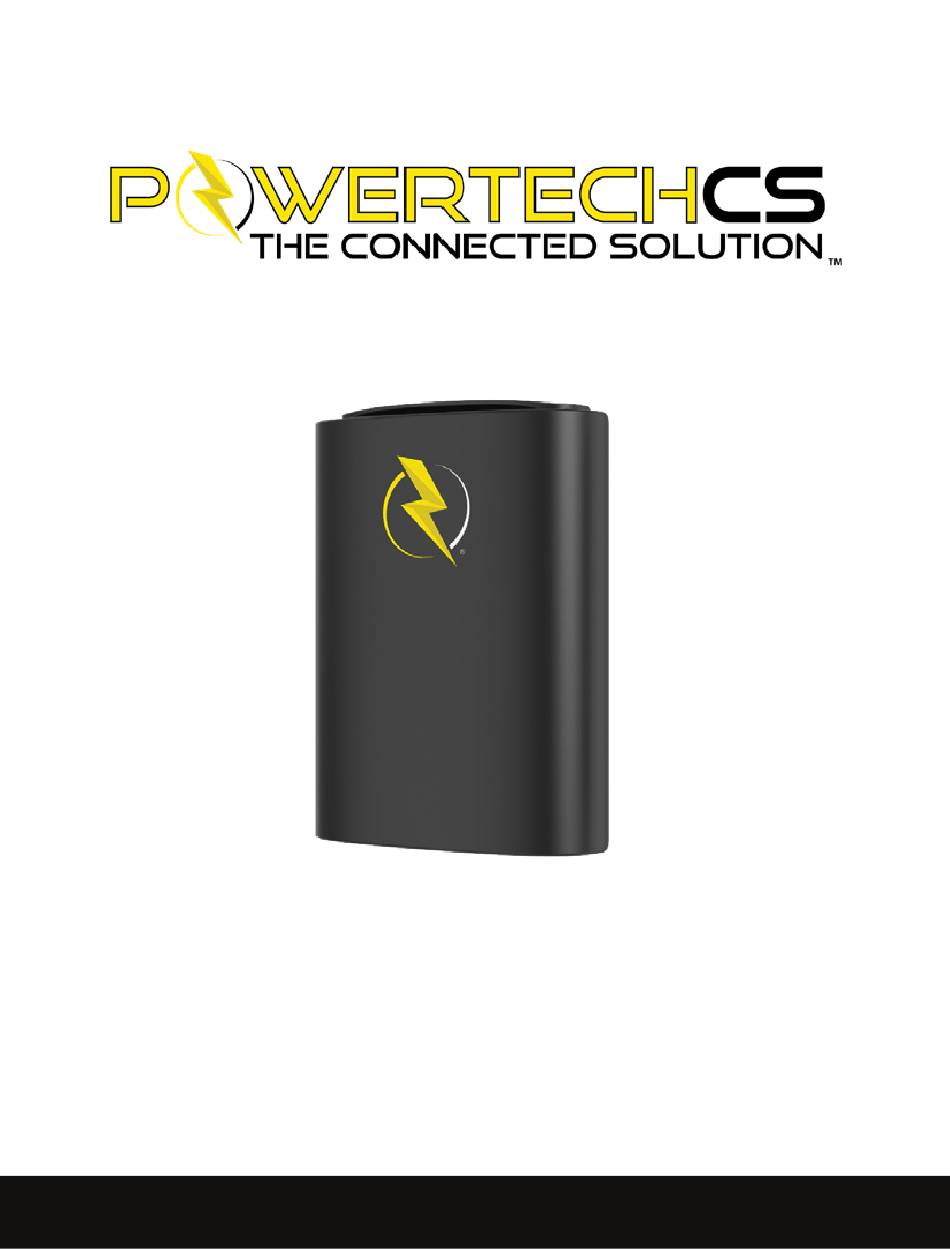

- Page 1 Wireless Sensor Guide...
-
Page 2: Table Of Contents
Table of Contents Meet the Wireless Sensors....... Wireless Sensor Installation......Mounting with Screws....... Mounting with Adhesive Strip....Battery Installation........... Battery Replacement........Pair Wireless Sensors to Main Device..... Entry Sensor..........Battery Sensor.......... Temperature Sensor......... Switch Sensor........... Operation Sensor........Technical Specifications........ -
Page 3: Meet The Wireless Sensors
The wireless sensors should be installed on a IP67 smooth flat surface. Waterproof • PowerTechCS adhesive strips are very strong and cannot be easily repositioned. Before you press 2-Year and hold it for 30 seconds, be sure the wireless Battery Life sensor is aligned correctly and is communicating with your CS Pro device. -
Page 4: Mounting With Screws
Wireless Sensor Installation Wireless Sensor Installation Mounting with Screws: Mounting with Adhesive Strip: If your surfaces are rough, dirty or prone to high heat or humidity, install your wireless • Make sure the surface is clean and dry. sensor with the supplied bracket and screws. •... -
Page 5: Battery Installation
Battery Installation IMPORTANT: Your wireless sensor comes with a CR2430 internal battery which will need to be installed prior to pairing the wireless sensor with the main device. Please be sure to follow the steps below: • Attach sensor tail (if applicable to sensor type). •... -
Page 6: Battery Replacement
Pair the wireless sensors prior to mounting in • Remove the wireless sensor from the its permanent location. mounting bracket. Go to the Settings page on the PowerTechCS • • Remove the four screws on the back of the App and select Add Wireless Sensor. -
Page 7: Entry Sensor
1/4in (6.35mm) away from the sensor. Secure the Wireless Entry Sensor into the • Mounting Bracket. NOTE: When the entry point is opened, a notification will be sent to the PowerTechCS App and an audible alarm can be triggered. -
Page 8: Battery Sensor
Pair the Wireless Module to the main device. Secure the Wireless Battery Sensor using the • supplied Mounting Bracket. NOTE: This sensor is polarity sensitive. Notifications will be sent to the PowerTechCS App if the voltage drops below or exceeds user-defined levels. -
Page 9: Temperature Sensor
Pair the Wireless Module to the main device (choose external if using tail, internal if not). Secure the Wireless Temperature Sensor • using the supplied Mounting Bracket. NOTE: Notifications will be sent to the PowerTechCS App if the temperature falls below or exceeds the preset levels. -
Page 10: Switch Sensor
Secure the Wireless Switch Sensor using the • supplied mounting bracket. NOTE: Notifications will be sent to the PowerTechCS App if the switch is closed. Do not connect the sensor leads to line power. An appropriate relay must be used to monitor line voltage items. -
Page 11: Operation Sensor
• Install the wireless sensor battery. • Pair the wireless sensor module to the PowerTechCS App. Secure the Wireless Operation Sensor using • the supplied mounting bracket. NOTE: An appropriate normally-open (N/O) relay... -
Page 12: Technical Specifications
Technical Specifications Technical Specifications Model Numbers: Warranty: • Entry Sensor: PTCS-SK-ENTRY 2-Year Limited Warranty • Battery Sensor: PTCS-SK-BATT Mounting: • Temperature Sensor: PTCS-SK-TEMP Mounting bracket with adhesive mounting • Switch Sensor: PTCS-SK-SWITCH strip and mounting screws included • Operation Sensor: PTCS-SK-OP Requirements: Requires the CSPro device and Service Plan Wireless Sensor Module:... - Page 13 634 State Road 44 Leesburg, FL 34748 1-800-760-0027 Notice: PowerTechCS Wireless Sensors are not cross compatible. Each wireless sensor is compatible only with a specific series of PowerTechCS Main Devices. Sensor compatibility is denoted on sensor packaging and on the sensor itself.
