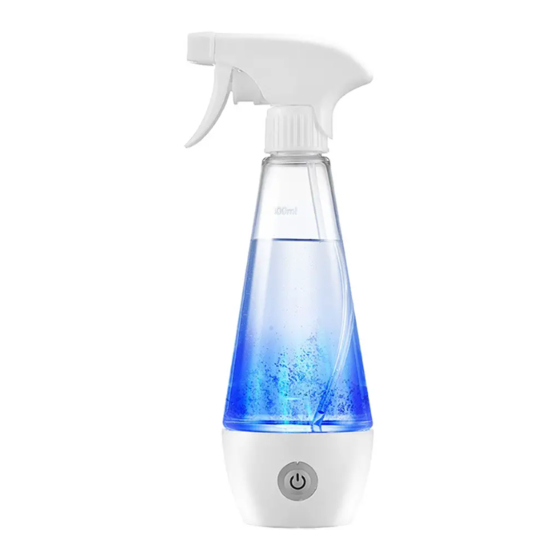

Medic Therapeutics D20 User Manual

PRODUCT BRIEF:
The Disinfectant Maker is controlled by a microcomputer that
uses commonly used table salt and water as raw materials
to quickly and conveniently create a broad-spectrum, safe
and non-toxic sodium hypochlorite disinfectant solution.
This solution effectively disinfects general objects such as
furniture, sanitary ware, utensils, floors, white clothing,
fruits, vegetables, etc.); it is safe, environmentally friendly
and non-toxic, as well as economically affordable.
COMPONENT DETAILS:
Injector
Water level line
Bottle body
Power Switch
Base
Salt spoon USB power line
PRODUCT PARAMETERS:
Product name: Sterilizing water Product mater:
manufacturing
Rated voltage:
machine
Rated current:
Product model: D20
Rated power:
Product size: 254x95x74mm
Product 188g
weight:
Capacity: 350mL
CONCENTRATION RANGE:
AMOUNT OF SALT
1 scoop (5g)
2 scoops (10g)
3 scoop (15g)
ADDITIONAL APPLICATION METHODS
OF DISINFECTANT SOLUTION:
The scope and method of use of disinfection water (The following
table is based on the national standard of Wei Jianfa [2007]265)
Allowed
concentration
Range of
(Contained with
use
available chlorine
Meter, mg / L
100~250
Base
General
object
surface 400~700
Air 500~1000
Instructions
Instructions
250
Tableware 400
ABS+PC
5V
500~800
600mA
3W
Fruits and
100~200
vegetables
Fabric 250~400
CONCENTRATION
CLASSIFICATION
RANGE
Low concentration 200-500mg/L
Medium
500-800mg/L
concentration
High concentration 800-1300mg/L
Action
Instructions
time
)
Wipe, soak, clean, flush &
10~30
disinfect.
Wipe surfaces, soak/dip
objects, rinse and spray to
disinfect. The amount of
10~30
volume needed to disinfect
will vary from different
surfaces and objects.
Spray disinfectant solution
between rooms, killing
10~30
microorganisms, such as
bacteria, in the air.
Spray and soak items, such
as utensils, to perform
> 5
disinfection cleaning and
remove residue.
Spray tableware and allow
to soak prior to performing
20
regular cleaning procedures
for optimal disinfection.
Spray tableware and allow
to soak prior to performing
30
regular cleaning procedures for
optimal disinfection.
Disinfect fruits and vegetables
with solution. Make sure to
rinse fruits and vegetables with
5~10
WATER to remove any residue
left from the disinfectant
solution PRIOR to consuming.
Soak the fabric in the Medium
concentrated disinfectant
20
solution. Make sure to rinse
after use.
USAGE METHOD:
1. Check and confirm that there are no foreign objects in
the bottle before filling it with water. Ensure that the
base and bottle are sealed tight.
2. Add fresh water to the bottle, then use the included Salt
Spoon to measure the desired scoops of salt based on
the concentration level. Pour the salt into the bottle and
shake to completely dissolve the salt in the water.
3. Continue to add fresh water to the bottle, screw
back the nozzle, and rotate the nozzle "off X" gear. At
the top, the nozzle needs to be loosened during the
electrolysis process to ensure ventilation (if the air
pressure is too tight inside the bottle, then the water
will leak from the bottom of the bottle).
4. Connect the power cord to the power hole of the
machine and connect the USB to a power supply. At this
time, a buzzer will sound to indicate connection.
5. Press the power button on the base (the buzzer will
sound) and the color of the base will change. Bubbles
will appear in the bottle, indicating that the machine is
working.
6. After reaching the working time (10 minutes), the
machine will automatically stop operating. At this time
the buzzer will sound three times, indicating that the
disinfectant that has formed is ready to be used.
7. Unplug the USB power cord from the device. Tighten
the spray head, rotate the nozzle to "spray" (
"spray ( ) gear for different spraying options. Use
the disinfectant solution correctly in accordance with
correct methods of application.
8. After emptying the disinfectant solution from the bottle,
wash the bottle with clean water and dry it.
FUNCTION OF SODIUM
HYPOCHLORITE DISINFECTANT:
The disinfectant solution produced by the bottle is sodium
hypochlorite. Sodium hypochlorite is highly effective and
powerful broad-spectrum fungicide, recognized throughout
the world and has been used for a long time as a disinfectant
solution. It can effectively kill various germs and viruses,
helping prevent disease such as hepatitis and the flu. It also
kills many harmful organisms such as molds that produce
aflatoxin. This solution is widely used as a household
cleaner and sterilization disinfectant that eliminates algae,
deodorization...etc.
) or
