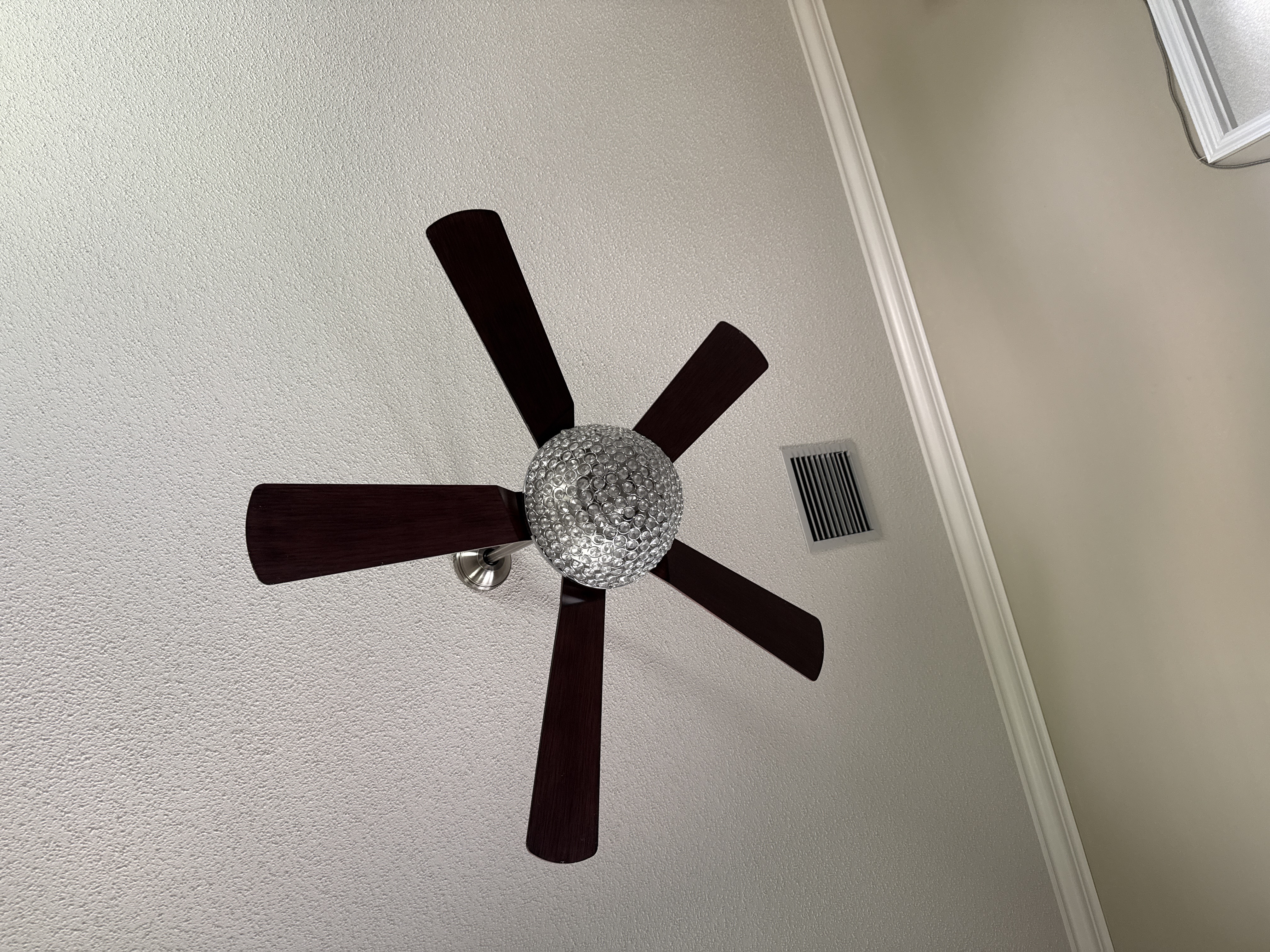

- Page 1 USE AND CARE GUIDE 52-INCH CRYSTAL CEILING FAN...
- Page 2 Table of Contents Safety Information Hanging the Fan Pre-Installation Attaching the Fan Blades Attaching the Lights HARDWARE INCLUDED Install the crystal shade Ceiling Use of remote control Care and cleaning Safety Information 1, To reduce the risk or electric shock the electricity has reduce the risk of personal injury, WARNING:TO been turned off at the circuit breaker or fuse box before...
- Page 3 Warranty The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime after the date of purchase by the original purchaser.The supplier also warrants that all other fan parts.excluding any glass or acrylic blades.to be free feom defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser.
- Page 4 Pre-Installation ( continued) HARDWARE INCLUDED � NOTE:Hardware not shown to actual size. Blade attachment screw and fiber washer components table Plastic wire nut (not to scale) Blade arm screw and lock washer Pull chain and fob (not to scale) < hand pull chain only>...
- Page 5 Installation of the hanging bracket (suspension part) :tt�LL_LLl_��t'±'!�t=: � ,\ /: ''' · • · · · · . · . • • . · . '' '' . • � · · / ..• Remove the hanger from the motor. For wooden ceiling, use wood screw to drill on the For concrete ceiling, use the percussion bit with wooden beam or the "junction box"...
- Page 6 Assembly - Hanging the Fan(continued) Making the electrical connections WARNING: IMPORT ANT: Each wire not supplied with this fan is designed to accept Use the plastic wire connectors(BB) supplied with your fan. Secure the connectors with electrical tape and ensure there are no up to one 12-gauge house wire and two wires from the fan .
- Page 7 Assembly- Attaching the Fan Blades Attaching the blades to the arms Clji' 1 :Pass the red washer through the screw. 2:Tighten the screw through the blade and tighten it on the arms. 3:Repeat the above steps to tighten the four sets of blades. 1 - -: �...
- Page 8 Assembly - Attaching the Lights 1 Connecting lamp wire Attaching the light kit fitter assembly CAUTION: To reduce the risk of electric shock, disconnect � the electrical circuit to the fa before installing the light fixture. 1. Insert the "white" line in the switching box of the motor into the "white"...
- Page 9 Assembly - Attaching the Lights Install the crystal WARN I NG: Allow the shatter resistant bowl to cool completely � before removing. CAUTION: Make sure the power is off before attaching or removing the shatter resistant bowl. CAUTION: Do not over tighten the hex nut,overtightening the hex nut may cause the shatter resistant bowl to break.
- Page 10 Use of remote control <ONLY> remote control <ONLY> I L O wl FanSpeed Low Level FanSpeed Middle Level IMEDI [Bil FanSpeed High level IST O PI FanSTOP LIGHT NO/OFF NO/OFF II8] Auto off after 1 hr Auto off after 2hr �...
- Page 11 Care and Cleaning WARN I NG:Make sure the power is off before cleaning your fan. □ Because of the fan's natural movement, some connections may become loose.Check the support connections,brackets,and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the celling. □...
