MCCOY KT14K Technical Manual

14” (356 mm) 75,000 lb-ft hydraulic power tong
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

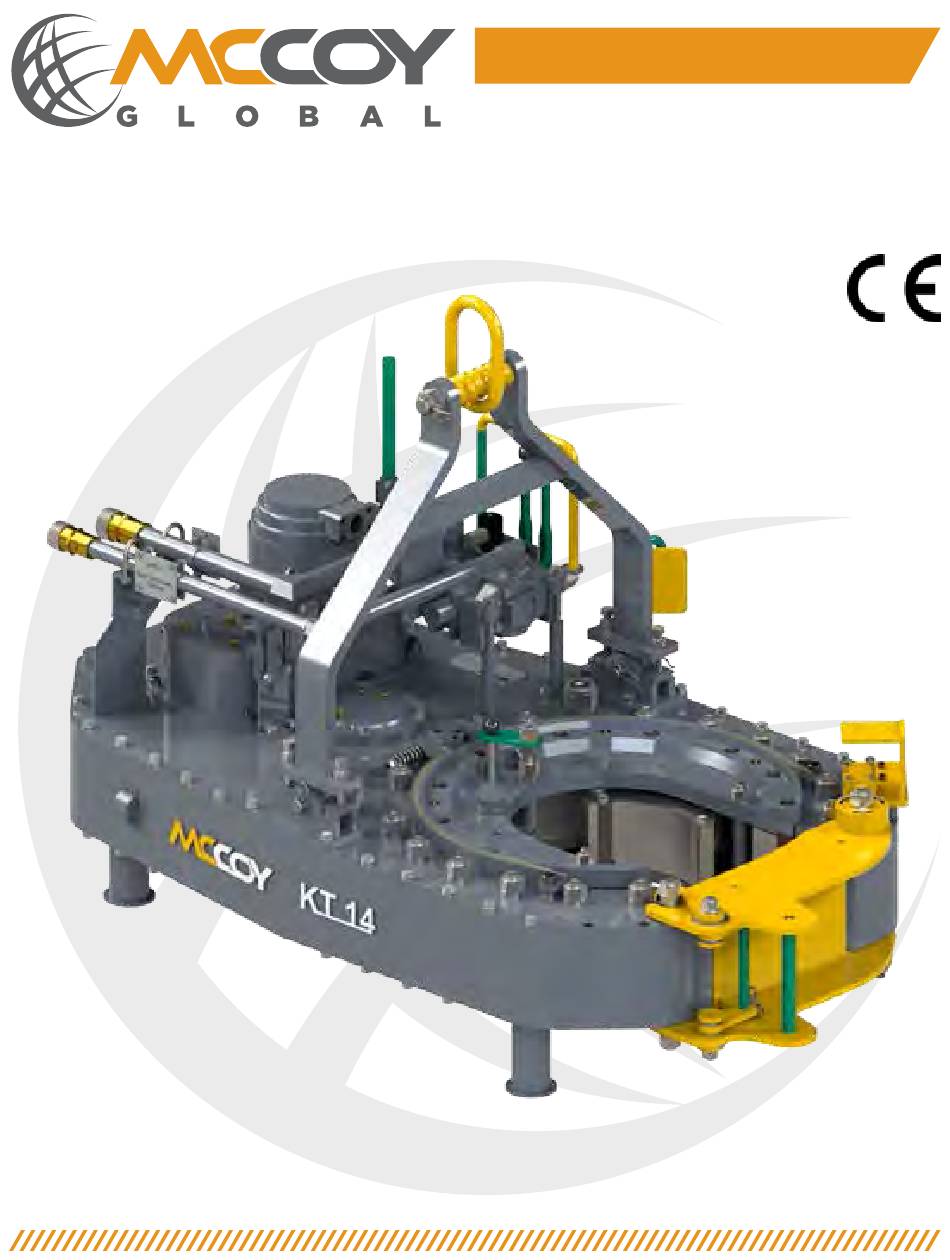

TECHNICAL MANUAL
KT14-75K
14" (356 mm) 75,000 lb-ft
Hydraulic Power Tong
SPECIFICATIONS | OPERATION | MAINTENANCE | PARTS
MCCOYGLOBAL.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KT14K and is the answer not in the manual?

Questions and answers

Related Manuals for MCCOY KT14K

Summary of Contents for MCCOY KT14K

  • Page 1 TECHNICAL MANUAL KT14-75K 14” (356 mm) 75,000 lb-ft Hydraulic Power Tong SPECIFICATIONS | OPERATION | MAINTENANCE | PARTS MCCOYGLOBAL.COM...
  • Page 3 THIS EQUIPMENT USES A DOOR SWITCH SYSTEM DESIGNED TO INTERRUPT TONG ROTATION WHEN TONG DOOR IS OPENED McCoy has made an effort ensure that all illustrations are accurate, but please note that some illustrations used in this manual may not exactly visually match your equipment.
  • Page 4 This page intentionally left blank...
  • Page 5 ING DEVICE TO SUPPORT ANY OTHER PART, ASSEMBLY OR COMBINATION OF PARTS AND ASSEMBLIES. MCCOY GLOBAL WILL NOT GUARANTEE THE ABILITY OF THE LOAD-BEARING DEVICE TO LIFT OR SUP- PORT THE EQUIPMENT DESCRIBED IN THIS MANUAL IF THERE ARE ANY MODIFICATIONS TO THE LOAD- BEARING DEVICE, OR ANY ADDITIONS TO THE EQUIPMENT DESCRIBED IN THIS MANUAL THAT ADD WEIGHT TO THE EQUIPMENT, UNLESS SUPPLIED BY MCCOY GLOBAL.
  • Page 6 This page intentionally left blank...
  • Page 7 McCoy. McCoy has made every effort to ensure the information contained in this document is accurate and current. This manual is intended to provide equipment operation and safety instructions for your equipment. However, McCoy does not warrant or guarantee that the information is either complete or accurate in every respect and the user of the manual should consult with its McCoy sales representative for any clarifications and updates.
  • Page 8 KT14-75K HYDRAULIC POWER TONG able of onTenTs SECTION ONE: INTRODUCTION Introduction & Contact Information ........................... Equipment Specifications ..............................SECTION TWO: SETUP & OPERATION INITIAL RECEIPT AND INSPECTION OF EQUIPMENT................... MAJOR COMPONENT IDENTIFICATION ......................... SLING / LOAD BEARING DEVICE SAFETY ......................2.C.1 Inspection Of Slings .............................
  • Page 9 KT14-75K HYDRAULIC POWER TONG able of onTenTs SECTION FIVE: PARTS AND ASSEMBLIES Critical Spare Parts List ..............................Recommended One-Year Spare Parts List ........................Recommended Overhaul Spare Parts List ........................Gear Train Layout ................................Support Half-Rollers ................................. Rotary Idler ..................................5.10 Pinion Idler ..................................

  • Page 10: Table Of Contents

    KT14-75K HYDRAULIC POWER TONG isT of llusTraTions Illustration 1.A.1: KT14-75K Tong ............................Illustration 1.A.2: KT14-75K Dimensions ..........................Illustration 1.A.3: KT14-75K Hazard Areas..........................Illustration 1.A.4: FARR® CE Nameplate ..........................Illustration 2.B.1: Major Component Identification 01 ....................... Illustration 2.B.2: Major Component Identification 02 ....................... Illustration 2.B.3: Major Component Identification 03 .......................
  • Page 11 KT14-75K HYDRAULIC POWER TONG isT of llusTraTions Illustration 3.I.18: Hydraulic Valve Assembly Installation ......................3.30 Illustration 3.I.19: Rigid Sling Leveling Bolt Installation ......................3.31 Illustration 3.L.1: Shipping Instructions - Pallet......................... 3.40 Illustration 3.M.2: Shipping Instructions - Wrapping Chain Sling & Strapping To Pallet ............3.41 Illustration 4.B.1: Relief Valve Troubleshooting - Temporary Gauge Installation ..............
  • Page 12 IDENTIFICATION OF WARNINGS AND OTHER NOMENCLATURE OF IMPORTANCE USED IN THIS TECHNICAL MANUAL McCoy Global uses three indicators to describe items of three degrees of importance. HAZARD to operators or equipment is represented by an exclamation point within a red triangle. identifies items of the highest importance.
  • Page 13 KT14-75K HYDRAULIC POWER TONG 1: i & s ecTion nTRoducTion pecificaTions MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 14 This page intentionally left blank...
  • Page 15 Congratulations on the purchase of your McCoy KT14-75K 14 inch tong. This unit will provide you with years of outstanding performance. Simple maintenance and care will extend its life and ensure years of excellent performance and reliability. The setup, operating, and maintenance instructions in this manual will assist you in giving your equipment the care it requires.
  • Page 16 1: I & S KT14-75K HYDRAULIC POWER TONG ntroductIon pecIfIcatIonS 39-⅜” 38” 72-½” Illustration 1.A.2: KT14-75K Dimensions ALL REPLACEMENT FASTENER (BOLTS, NUTS, CAP SCREWS, MACHINE SCREWS, ETC.) USED DURING MAINTENANCE OR OVERHAUL MUST BE GRADE 8 OR EQUIVALENT UNLESS OTHERWISE SPECIFIED.
  • Page 17 1: I & S KT14-75K HYDRAULIC POWER TONG ntroductIon pecIfIcatIonS In addition to the HAZARD areas of this equipment that are coated YELLOW, the rotating cage plate assembly poses a significant hazard when the equipment is active. Keep hands clear of the cage plate when equipment is energized. SAFE areas to handle while the equipment is energized are indicated by GREEN...
  • Page 18 KT14-75K HYDRAULIC POWER TONG ntroductIon pecIfIcatIonS II 2 G IIB T6 ©McCoy Global Inc. All Rights Reserved. Illustration 1.A.4: McCoy CE Nameplates CE compliant. Conforms with the essential requirements of the applicable Conformité Européenne directives. EU Explosive Atmosphere certified Equipment Group (surface, non-mining) Equipment Category - high level of protection Gas Group (Acetylene &...
  • Page 19 97 dB A @ 1m / 96 dB C @ 1m Jaws available (inches) All standard sizes from 4-½” to 14-⅜” (See Pg. 2.11) 85-0106HDS (Capacity = 5900 lb / 2676 kg) Recommended spring hanger DANGER ONLY USE SPRING HANGERS SUPPLIED BY MCCOY GLOBAL. MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 20 104°F (40°C) meets VG320 or AGMA 6EP specifications Grease McCoy Global recommends use of a high-quality EP multi-purpose grease with an NLGI consistency grade of "2" and an NLGI performance grade of "GC-LB" for general lubrication of bearings and metal-to-metal contact.
  • Page 21 KT14-75K H ydrauliC ower 2: c & o ecTion ommissioning peRaTion MOVING GLOBAL ENERGY FORWARD...
  • Page 22 This page intentionally left blank...
  • Page 23 INITIAL RECEIPT AND INSPECTION OF EQUIPMENT YOUR EQUIPMENT HAS BEEN THOROUGHLY TESTED AND INSPECTED AT THE FACTORY. HOWEVER, MCCOY ADVISES INSPECTING YOUR EQUIPMENT FOR SHIPPING DAMAGE UPON RECEIPT, AND TESTING YOUR TONG BEFORE RELEASING TO AN OPERATIONAL ENVIRONMENT. Perform a visual inspection following removal of all packaging material. Immediately identify any shipping damage to the shipping com- pany, and correct all damage before connecting equipment to a hydraulic power source.
  • Page 24 2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration MAJOR COMPONENT IDENTIFICATION (CONTINUED): Illustration 2.B.2: Major Component Identification 02 Item Description Manual shift assembly Rigid sling leveling adjustment Shifter / clutch access panel Hydraulic inlet line Hydraulic discharge line Hydraulic motor Motor mount Load cell / snub line tie-off...
  • Page 25 2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration MAJOR COMPONENT IDENTIFICATION (CONTINUED): Illustration 2.B.3: Major Component Identification 03 Item Description Brake band adjustment Brake band Manual backing (reversing) pin assembly Tong jaw with die inserts Cage plate MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 26: Illustration 2.C.1: Sling Angle

    ING DEVICES, UNLESS THOSE MODIFICATIONS ARE PERFORMED BY MCCOY. McCoy Global recommends following an industry-accepted standard such as OSHA, ASME B30.9-2006, or manufacturer’s guidelines when performing any rigging and overhead lifting. Use by untrained persons is hazardous. Improper use will result in serious injury or death.
  • Page 27 2.C.1 Inspection Of Slings McCoy strongly recommends the following practices: A complete inspection of new load-bearing devices and attachments shall be performed by a qualified, designated person prior to initial use. Each link and component shall be examined individually, taking care to expose and examine all surfaces including the inner link surface.
  • Page 28 • McCoy recommends that an anti-corrosive agent such as Tectyl ® 506 be applied to all external surfaces. Refer to manu- facturer data sheets for proper application and safety information. Allow the anti-corrosive coating ample time to dry - refer to manufacturer data sheets for drying times at room temperature.

  • Page 29: Illustration 2.D.1: Lift Cylinder & Spring Hanger Installation

    The lift cylinder is not orientation-specific; that is, the lift cylinder will function the same way independent of which end is connected to the crane and which end is connected to the main lifting lug of the tong (or the spring hanger, if used). However, McCoy recommends orienting the lift cylinder with the hydraulic hose connection at the bottom of the cylinder to ensure the hose is not stressed when cylinder is at full extension.

  • Page 30: Illustration 2.D.2: Lift Cylinder Hydraulic Connection

    A CLEARLY IDENTIFIED REMOTE POWER PACK EMERGENCY STOP MUST BE INSTALLED IN THE IMMEDIATE VICINITY OF THE TONG OPERATOR. McCoy Global recommends following an industry-accepted standard such as OSHA, ASME B30.9-2006, or manufacturer’s guidelines when performing any rigging and overhead lifting. Use by untrained persons is hazardous. Improper use will result in serious injury or death.
  • Page 31 Do not remove the speed-limiting orifice, and only replace with an identical orifice supplied by McCoy.

  • Page 32: Illustration 2.E.1: Hydraulic Schematic

    2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration HYDRAULICS 2.E.1 Hydraulic Schematic Disregard optional features on the following schematics that do not apply to your particular model. MOTOR LIFT OPTIONAL Illustration 2.E.1: Hydraulic Schematic DANGER DO NOT EXCEED MAXIMUM SPECIFIED FLOW OR PRESSURE. REFER TO THE SPECIFICATIONS IN SECTION 2 Item Description...
  • Page 33 2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration 2.E.1 Hydraulic Schematic (Continued): MOTOR LIFT OPTIONAL Illustration 2.E.2: Hydraulic Schematic 2.13 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 34: Illustration 2.E.3: Hydraulic Component Identification 01

    2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration 2.E.2 Hydraulic Component Identification: Illustration 2.E.3: Hydraulic Component Identification 01 Illustration 2.E.4: Hydraulic Component Identification 02 2.14 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 35: Illustration 2.E.5: Hydraulic Component Identification 03

    2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration 2.E.2 Hydraulic Component Identification (Continued): Illustration 2.E.5: Hydraulic Component Identification 03 2.E.3 Hydraulic Connections A pair of hydraulic lines - a 1-1/4” supply line and a 1” return line - connect the tong to the power unit (see illustration below). Ancillary devices (hydraulic motors, hydraulic cylinders, etc.) are connected through the valve block.

  • Page 36: Illustration 2.E.7: Hydraulic Connections 02

    The configuration of the plumbing between the motor valve section and the motor determines the direction of rotation for a given valve action. McCoy Global normally configures the plumbing on this tong so that pushing the valve control handle towards the centre of the tong supplies hydraulic pressure to the “clockwise rotation”...
  • Page 37 Jaw Availability The following table lists all jaw die kits that are available as standard stocked sizes for this model of tong. McCoy Global offers a good selection of standard jaw sizes. However, please note that we can custom-engineer and manufacture any size of jaw within the range of the tong.

  • Page 38: Illustration 2.F.1: Jaw Removal

    2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration 2.F.1 Jaw Availability (Continued): Description Part Number Description Part Number 4-1/2” Jaw Die Kit 1393-JDK-345 9-7/8” Jaw Die Kit 1393-JDK-385 5” Jaw Die Kit 1393-JDK-350 10” Jaw Die Kit 1393-JDK-188 5-1/2”...

  • Page 39: Illustration 2.F.2: Jaw Die Removal

    Additionally, incorrectly sized jaws will cause the pipe to be off-centre relative to the backup, resulting in eccentric rotation and potential pipe thread damage. Use of jaws not manufactured by McCoy is not recommended, and may result in jaw slippage jaw failure, or damage to the camming surfaces of the rotary gear.
  • Page 40 The suspension line may be extended over a pulley and balanced by a counterweight equal to the weight of the tong, or simply tied off in the derrick to form a dead line. When using a dead line arrangement it is necessary to use a McCoy spring hanger assembly (see specification page for recommended spring hanger).

  • Page 41: Illustration 2.G.1: Tong Suspension Relative To Axial Centre

    2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration 2.G.1 Suspension & Restraint (Continued): Illustration 2.G.1: Tong Suspension Relative To Axial Centre Illustration 2.G.2: Tong Suspension Relative To Vertical Centre 2.21 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 42: Illustration 2.G.3: Tong Leveling 01

    2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration 2.G.2 Tong Leveling The tong must be leveled side-to-side and front-to-rear before placing into service. The following guidelines will assist you when leveling your tong. FAILURE TO PROPERLY LEVEL TONG MAY RESULT IN JAW SLIPPAGE OR FAILURE OF JAW COMPONENTS Place a level axially (side to side) across the tong, ensuring that it is parallel with the surface of the tong.
  • Page 43 2.H.2 Operator Safety McCoy recommends that a hazard assessment of the work area be performed by a designated safety representative before commencing operations. A designated safety representative is responsible for verifying that all operators have adequate equip- ment and safety training.

  • Page 44: Illustration 2.H.1: Tong Rotation Control Valve

    2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration 2.H.3 Valve Operation (Continued): TONG MOTOR This is a proportional valve. Pushing the valve handle forward will cause the tong motor to rotate in a clockwise direction (as seen from the top of the tong). This is the desired direction of rotation for making up a joint. Pulling the valve handle in the opposite direction results in counter-clockwise rotation, which is the desired direction of rotation for breaking out a joint.

  • Page 45: Illustration 2.H.3: Tong Manual Shift Control

    2.H.5 Pre-Operational Checks McCoy recommends that the following pre-operating tests be performed prior to releasing the tong assembly to a operational environment: Connect the tong to a hydraulic power source in a controlled environment. Ensure the power unit’s operating parameters are within the specifications as identified on Pg.
  • Page 46 The following procedure outlines the correct, safe procedure for testing the door sensor/tong shutdown system on a McCoy power tong. Using the correct testing procedure ensures the sensor/shutdown system is fully functional without exposing the equipment to a shock load or personnel to a potential hazard.

  • Page 47: Illustration 2.I.1: Master Lifting Link

    2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration 2.H.6 General Comments Position rotary gear in contact with both idler gears when breaking out joints or collars where high torques are required. When making-up integral (shouldered) joints, it is essential to make up the last turn of the threads in low gear. This reduces the tendency of an instant stop or a sudden increase in torque, which induces extremely high stresses on the gear train.

  • Page 48: Illustration 2.I.2: Backing Pin Set To "Make-Up" Position

    (see Section 2.G.1). The snub line prevents the tong body from spinning in the opposite direction of the cage plate when torque begins to build in the joint. McCoy Global recommends using two snub lines when running the equipment to eliminate uncontrolled movement in either rota- tional direction.

  • Page 49: Illustration 2.I.3: Lift Cylinder Control (Raise)

    2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration 2.I.1 Making A Connection (Continued): Illustration 2.I.3: Lift Cylinder Control (Raise) Grasp the tong door handles and pull firmly to open. Since your equipment is equipped with safety doors, opening the door will inhibit rotation of the cage plate.

  • Page 50: Illustration 2.I.5: Motor Control - Make-Up

    2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration 2.I.1 Making A Connection (Continued): Manually engage the threads of the tubing connection being made up. Ensure threads are not cross-threaded. Move the tong on to the tubing joint. Use the lift cylinder to ensure the tong jaws are at the correct location above the con- nection joint.

  • Page 51: Illustration 2.I.6: Motor Control - Releasing Jaws

    2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration 2.I.1 Making A Connection (Continued): Illustration 2.I.6: Motor Control - Releasing Jaws 15. When tong jaws are free align the opening in the rotary gear with the mouth of the tong, and open the tong doors to free the tong from the drill string.

  • Page 52: Illustration 2.I.8: Setting Backing Pin To "Break-Out" Position

    2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration 2.I.2 Breaking A Connection YOUR TONG SHOULD BE PROPERLY SUSPENDED, CONNECTED TO A HYDRAULIC POWER SOURCE, AND READY TO BREAK CONNECTIONS. Ensure hydraulic power supply to the tong and backup is energized. The master link on the rigid sling must be used to suspend the tong.

  • Page 53: Illustration 2.I.9: Rotation Control - Break-Out

    2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration 2.I.2 Breaking A Connection (Continued): 10. Pull the motor control valve toward the operator to rotate the cage plate in the break-out direction. Illustration 2.I.9: Rotation Control - Break-Out 11. When the tong jaws cam on to the tubing pull the rotation control handle all the way out to break the connection. 12.

  • Page 54: Illustration 2.I.11: Lowering Tong Using Lift Cylinder Control

    2: C & o KT14-75K HYDRAULIC POWER TONG ommissioning peration 2.I.2 Breaking A Connection (Continued): 14. When the tong jaws disengage align the opening in the rotary gear with the mouth of the tong, and open the tong door to free the tong from the drill string. Unlatch and open the tong door to free the assembly from the tubing. Note that rig personnel may be required to stabilize the equipment as it completely releases from the tubing.
  • Page 55 KT14-75K HYDRAULIC POWER TONG 3: m ecTion ainTenance MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 56 This page intentionally left blank...
  • Page 57 • replacement of door cylinders • replacement of fasteners Any replaced component must be an identical component supplied by McCoy Global. Replaced fasteners must be Grade 8 or equivalent, or whatever fastener is specified by McCoy. GENERAL MAINTENANCE SAFETY PRACTICES The practices identified here are intended as a guideline.

  • Page 58: Illustration 3.E.1: Guide Ring Lubrication

    McCoy recommends the following lubrication procedure at the completion of each job prior to storage. McCoy recommends that a liberal coating of grease be applied to the cam surface of the rotary drive gear prior to jaw installation. Also, the clutch inspection plate should periodically be removed, and a liberal coating of grease applied to the clutch, drive gears and shifting shaft.

  • Page 59: Illustration 3.E.2: Support Roller Lubrication

    3: M KT14-75K HYDRAULIC POWER TONG aintenance 3.E.2 Support Rollers Apply grease to the support roller bearings through the grease fittings recessed into the top of each support roller shaft (14 locations top, 14 locations bottom). Illustration 3.E.2: Support Roller Lubrication 3.E.3 Rotary Idlers Apply grease to the rotary idler bearings through the grease fittings recessed into the top of each shaft on the top face of the...

  • Page 60: Illustration 3.E.4: Pinion Idler Lubrication

    3: M KT14-75K HYDRAULIC POWER TONG aintenance 3.E.4 Pinion Idlers Apply grease to the pinion idler bearing through the grease fittings installed in the bottom plate on either side of the nylock nut securing each half-shaft, (four locations total). Illustration 3.E.4: Pinion Idler Lubrication 3.E.5 Pinion Apply grease to the pinion bearings through the grease fittings located on the bearing caps on the top and bottom faces of the...

  • Page 61: Illustration 3.E.6: Clutch Lubrication

    3: M KT14-75K HYDRAULIC POWER TONG aintenance 3.E.6 Clutch Apply grease to the clutch bearings through the two grease fittings located on the clutch bearing cap on the bottom face of the tong, and the single grease fitting recessed into the end of the clutch shaft. (three locations total). NOTE: A protective plug may have been inserted into the end of the clutch shaft over the grease fitting prior to shipping - this plug may be removed for normal operation.

  • Page 62: Illustration 3.E.8: Shifter Component Lubrication

    3: M KT14-75K HYDRAULIC POWER TONG aintenance 3.E.8 Shifting Shaft Apply grease to the shifting shaft and top shifting shaft bushing. The shaft and shifting yoke can be accessed through the cover plate on the side of the tong. Access shifter components through this panel Illustration 3.E.8: Shifter Component Lubrication 3.E.9...

  • Page 63: Illustration 3.E.10: Door Spring Cylinder (Exploded)

    1 shot grease McCoy recommends that a liberal coating of grease be applied to the cam surface of the rotary drive gear prior to jaw installation. Also, the clutch inspection plate should periodically be removed, and a liberal coating of grease applied to the clutch, drive gears and shifting shaft.

  • Page 64: Illustration 3.F.1: Brake Band Adjustment

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ADJUSTMENTS 3.F.1 Brake Band Adjustment The brake bands must be periodically adjusted to continue to provide smooth and efficient jaw cam action. Inadequate cage plate tension will allow the cage plate to rotate with the rotary gear, resulting in poor gripping of the pipe or casing due to improper “camming”...

  • Page 65: Illustration 3.F.2: Shifter Detent Force Adjustment

    Periodic calibration of the torque gauge is recommended to assure accurate torque readings. When having the torque gauge serviced and calibrated, it is critical to note the arm length of the tong, as indicated in the “Specifications” section. McCoy rec- ommends that the torque gauge assembly be calibrated yearly.
  • Page 66 16. Remove the four bolts securing the lay gear bearing cap, and pull the bearing cap straight up. IF THE BEARING REMAINS ATTACHED TO THE LAY GEAR SHAFT AFTER THE BEARING CAP IS PULLED, MCCOY GLOBAL SERVICE DEPARTMENT RECOMMENDS LEAVING IT IN PLACE UNTIL THE TOP TONG PLATE IS REMOVED.
  • Page 67 IF THE BEARING REMAINS ATTACHED TO THE PINION GEAR SHAFT AFTER THE BEARING CAP IS PULLED, MCCOY GLOBAL SERVICE DEPARTMENT RECOMMENDS LEAVING IT IN PLACE UNTIL THE TOP TONG PLATE IS REMOVED.
  • Page 68 ASSEMBLY PROCEDURES Although the assembly of McCoy hydraulic power tongs is straightforward, and can be accomplished without the use of special tools, the instructions in this subsection are presented as a guide only and are similar to the assembly sequence our technician would use while assembling the tong in our plant.

  • Page 69: Illustration 3.I.1: Bottom Support Roller Assembly Drawing

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): IMPORTANT ASSEMBLY INFORMATION DO NOT TORQUE NYLOCK NUTS. NYLOCK NUTS ARE NOT USED FOR CLAMPING PURPOSES AND SHOULD ONLY BE TIGHTENED UNTIL METAL-TO-METAL CONTACT IS MADE AND VERTICAL MOTION IS ELIMINATED. OVER- TIGHTENING WILL RESULT IN PREMATURE BUSHING FAILURE AND WILL INHIBIT ROTATION, AND MAY IMPART EXCESS STRESS ON ROTATING COMPONENTS.

  • Page 70: Illustration 3.I.2: Bottom Support Roller Installation

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): Install fourteen support roller assemblies around the tong opening in the bottom plate, and secure each with a 1” UNC hex nut and 1” lock washer (see illustration 3.I.2). Illustration 3.I.2: Bottom Support Roller Installation Thread two 1/2”...

  • Page 71: Illustration 3.I.4: Pinion Assembly Drawing

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): 10. Press two needle bearings (PN 1393-53) into the low clutch gear (PN 101-5921). Ensure the outer race of the bearings are flush with the inner shoulders of the gear. 11.

  • Page 72: Illustration 3.I.5: Pinion Idler Assembly Drawing

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): 20. Press the inner race of the lower pinion bearing (PN 1393-93) on to the end of the pinion gear shaft oriented so the shoulder on the race is pressed against the shoulder on the gear shaft. 21.

  • Page 73: Illustration 3.I.6: Pinion Bearing Race Installation

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): 29. Remove the inner race from the top pinion bearing (PN 1393-93). Install on to the top end of the pinion gear shaft, with the shoulder on the race is oriented toward the gear. Use a flat block and a mallet to evenly tap the race on to the shaft until the shoulder of the race comes in to contact with the pinion gear spacer.

  • Page 74: Illustration 3.I.8: Top Support Roller Assembly Drawing

    If old dowel pins are in place, remove them before installation of the top plate. If the dowel pins are in any way damaged or deformed McCoy recommends replacing them with new ½” x 1-½” hardened dowel pins. If necessary clean the dowel pin holes.

  • Page 75: Illustration 3.I.9: Top Plate Fastener Installation

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): 37. Use a temporary lifting sling and crane to maneuver the top plate weldment into position (weight = 490 lbs/223 kg), and place on to the side body. Insert the four positioning dowel pins (PN 09-0172) through the top plate into their respective holes in the side body. Use a hammer to tap the dowel pins until they are flush with the top plate.

  • Page 76: Illustration 3.I.10: Lay Gear Assembly Drawing

    52. Locate the two un-threaded holes in the top plate on either side of the motor mount location. If old dowel pins are in place, remove them before installation of the motor mount. If the dowel pins are in any way damaged or deformed McCoy recommends replacing them with new ⅜”...

  • Page 77: Illustration 3.I.11: Shifting Fork Assembly Drawing

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): 58. Securely fasten the shifting fork to the shifting shaft using three ¼” UNC x ⅜” thin nylock nut. ASSEMBLY NOTE: Apply red Loctite to all three set screws when installing (see illustration 3.I.11, shifting fork assembly drawing). DETAIL A INSTALL SET SCREW WITH LOCTITE...

  • Page 78: Illustration 3.I.12: Cage Plate Spacer Installation

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): 65. Secure two cage plate spacers (PN 101-3630) and the rear cage plate bolt (PN 1393-36) to the bottom cage plate using ¾” lock washers and ¾” UNC hex nuts. Front Cage Plate Spacer Rear Cage...

  • Page 79: Illustration 3.I.13: Safety Door Cam & Lower Reinforcement Installation

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): 72. Install the safety door cam (PN 101-5988) on to the top door plate over the shoulder bushing using three ¼” UNC x 2” hex bolts and ¼” lock washers. Install the bottom door pivot reinforcement (PN 101-5989) over the shoulder bushing using two ¼” UNC x 1-¼” hex bolts and ¼”...

  • Page 80: Illustration 3.I.14: Door Latch Installation

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): 73. Install door latch assembly. Refer to illustration 3.I.14 during latch installation: Slide a latch lever bushing (PN 101-5997) over each door latch pin (PN 101-5986). Assemble latch handle (PN 101-5984) and two latch levers (PN 101-5985). Note that the components are press-fit only. iii.

  • Page 81: Illustration 3.I.15: Door Installation

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): 74. Insert the door latch post (PN 101-6068) through the top and bottom plate, just to the right of the tong opening at the front of the tong. Slide a latch spacer (PN 101-5991) over the top and bottom of the latch post, and secure the top and bottom with a 1” UNC hex nylock nut (see illustration 3.I.15).

  • Page 82: Illustration 3.I.16: Safety Door Switch Installation

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): 76. Attach one side of the door spring stop cylinder (1037-A4-144) to the door pivot reinforcement using a ⅝” x 1-¾” hex socket UNC shoulder bolt, short mounting lug (PN 101-6000) and ½” lock washer. 77.

  • Page 83: Illustration 3.I.17: Hydraulic Support Installations

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): 82. Mount the two hydraulic valve mount weldments (PN 101-1442) to the top plate using one ⅜” UNC x 1” hex bolt and ⅜” lock washer per weldment (see illustration 3.I.17). 83.

  • Page 84: Illustration 3.I.18: Hydraulic Valve Assembly Installation

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): 89. Use a crane and temporary lifting sling to transport the assembled hydraulic valve bank to the top plate of the tong (weight = 90 lbs / 40.9 kg). Bolt the assembled hydraulic valve bank to the valve supports installed in Step 73 using two ½” UNC x 4-½” hex bolts and four ½”...

  • Page 85: Illustration 3.I.19: Rigid Sling Leveling Bolt Installation

    3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): 90. Install the rigid sling. If not already done, slide the master lifting link (PN 02-9128) over the adjustment helix (PN 1095-220), and install the adjust- ment helix in the rigid sling weldment (PN 101-5583) using the rigid sling helix pin (PN 1095-218) and a 1-¼” UNC thin nylock nut.
  • Page 86 3: M KT14-75K HYDRAULIC POWER TONG aintenance ASSEMBLY PROCEDURES (CONTINUED): 91. Install grease fittings in tong: Install one ¼” straight thread grease fitting (PN 02-0097) into the top of each roller cup half-shaft mounted in the top and bot- tom plates (28 locations total). Install one ⅛”...
  • Page 87 DAILY INSPECTION & MAINTENANCE CHECKLIST (POWER TONG) McCoy Global recommends that the following inspection and maintenance procedures be performed before each use, and at least once per day when the tong is in steady use, in the order in which they are listed.
  • Page 88 3: M KT14-75K HYDRAULIC POWER TONG aintenance Perform a complete greasing of the tong - refer to Maintenance section of the technical manual Ensure main supply and return connections to the tong are fully made up. Re-connect the remainder of the hydraulic lines, and, if applicable, the electrical line to the turns counter.
  • Page 89 Prepare areas to be painted to ensure they are free of grease, dirt, or solvent. Touch up using a solvent-based acrylic paint - “McCoy Grey” is paint color number RAL7015, “McCoy Yellow” (hazard areas) is RAL1007, and McCoy Green is RAL6029 (contact McCoy sales for paint number for custom paint applications).
  • Page 90 Extend all hydraulic cylinders, and inspect cylinder rods for signs of mechanical damage, flaking, or rust. McCoy recom- mends that damaged cylinders be replaced prior to storage.
  • Page 91 NEVER OPERATE YOUR EQUIPMENT WITH A BYPASSED OR MALFUNCTIONING SAFETY DOOR McCoy recommends that an anti-corrosive agent such as Tectyl® 506 be applied to all external unpainted surfaces (and chain slings) EXCEPT cylinder rods, jaw rollers, and rotary gear camming surfaces. Refer to manufacturer data sheets for proper application and safety information.
  • Page 92 Inspect all paint - locations in which the paint has been damaged must be repaired prior to storage. Prepare areas to be painted to ensure they are free of grease, dirt, or solvent. Touch up using a solvent-based acrylic paint - “McCoy Grey” is paint number RAL7015.
  • Page 93 Apply grease or heavy oil to all exposed cylinder rods. McCoy recommends that an anti-corrosive agent such as Tectyl ® 506 be applied to all external surfaces EXCEPT cylinder rods (including chain slings). Refer to manufacturer data sheets for proper application and safety information.

  • Page 94: Illustration 3.L.1: Shipping Instructions - Pallet

    Place the equipment on a sturdy pallet constructed of 4” x 4” cross-members and 2” x 4” flooring. McCoy recommends placing a 2” x 6” board across the width of the tong under the legs (see Illustration 3.M.1). Ensure the pallet is large enough to accom- modate the wooden crate containing the tong accessories.

  • Page 95: Illustration 3.M.2: Shipping Instructions - Wrapping Chain Sling & Strapping To Pallet

    1 mil polyethylene wrap. Use the wrap to conform the plastic cover to the general shape of the equipment, but do not wrap so tight that sharp edges on the equipment perforate the cover. McCoy recommends enclosing the equipment in a sturdy shipping crate which is securely fastened to the pallet. 3.41...
  • Page 96 These procedures are essential for ensuring proper equipment preparation and operation. The following procedures also assume that the decommissioning and storage procedures recommended by McCoy Global have been strictly observed. Remove all protective plastic wrapping. If there are desiccant packs with the assembly, they may be disposed of with the regular garbage.
  • Page 97 3: M KT14-75K HYDRAULIC POWER TONG aintenance Perform a full functional test of the equipment including, if applicable, backup components and float frame components. Report and correct any hydraulic leaks from the hydraulic valve bank, or from any hydraulic cylinders that are used. If using a frame-mounted tong and backup system, raise the tong off the beams that it is resting upon.
  • Page 98 This page intentionally left blank...
  • Page 99 KT14-75K HYDRAULIC POWER TONG 4: T ecTion RouBleshooTing MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 100 This page intentionally left blank...
  • Page 101 Load cell is measuring incorrectly torque measurement troubleshooting in Section 6 of this manual Load cell has been damaged. Replace load cell, or return to McCoy for repair and re-calibration MCCOY GLOBAL GUARANTEES CALIBRATION OF A LOAD CELL/TORQUE GAUGE ASSEMBLY FOR A PERIOD OF ONE YEAR.

  • Page 102: Illustration 4.B.1: Relief Valve Troubleshooting - Temporary Gauge Installation

    4: T KT14-75K HYDRAULIC POWER TONG roubleshooTing RELIEF VALVE IS INCORRECTLY SET OR NOT FUNCTIONING POSSIBLE PROBLEM SOLUTION(S) Relief pressure set too low, resulting in in- sufficient tong torque Adjust setting (See following procedure): Relief pressure set too high, resulting in crushed pipe or gear train failure If your tong is equipped with a system pressure indicator proceed to step “f”.
  • Page 103 4: T KT14-75K HYDRAULIC POWER TONG roubleshooTing RELIEF VALVE IS INCORRECTLY SET OR NOT FUNCTIONING (CONTINUED): POSSIBLE PROBLEM SOLUTION(S) Debris on valve seat Relief cannot be adjusted to maximum system pres- Valve spring is broken sure (high fluid bypass results in low system pressure Valve spring has lost spring force due to continuous tension PROCEDURE: Isolate your tong from hydraulic power, and depressurize following the procedure in section 3.D...
  • Page 104 4: T KT14-75K HYDRAULIC POWER TONG roubleshooTing SAFETY DOOR DOES NOT OPERATE OR IS MALFUNCTIONING POSSIBLE PROBLEM SOLUTION(S) Safety door switch requires adjustment. Adjust switch as per section 3.F.5 Safety door switch has failed Test safety door switch for proper function and replace if necessary Contamination in hydraulic lines Ensure all three flexible hydraulic lines to safety door switch are free-flowing Pilot-to-open valve in safety door valve block is...
  • Page 105 Shifter has malfunctioned and the tong is not shift- Inspect and repair shift mechanism as necessary ing to high gear Ensure hydraulic fluid meets McCoy Global specifications Hydraulic fluid viscosity too high Ensure hydraulic fluid is appropriate for climatic conditions, especially during cold-...
  • Page 106 4: T KT14-75K HYDRAULIC POWER TONG roubleshooTing FAILURE OF JAWS TO GRIP PIPE POSSIBLE PROBLEM SOLUTION(S) Dies have become too dull to provide adequate grip Replace dies Double-check jaw size to ensure they are rated for the diameter of pipe or Incorrect jaws are being used casing being run Ensure dies loaded in the jaws are appropriate for the type of pipe or casing...
  • Page 107 4: T KT14-75K HYDRAULIC POWER TONG roubleshooTing FAILURE OR DIFFICULTY OF TONG TO SHIFT POSSIBLE PROBLEM SOLUTION(S) Bent or broken shifter yoke Inspect components through inspection door. Replace shifter yoke if necessary. Bent or broken shifter shaft Replace Locking nuts on shifting shaft have loosened and posi- Reposition yoke and re-tighten locking nuts tion of yoke has changed Inspect yoke and inspect for damage.
  • Page 108 If your hydraulic troubleshooting procedures involve flow and pressure tests at the power unit, McCoy Global recommends construction of a test rig that can easily be connected to the main suction and discharge ports of the power unit.
  • Page 109 KT14-75K HYDRAULIC POWER TONG 5: p & a ecTion aRTs ssemBlies MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 110 The quantities listed in the table on page 5.2 are total quantities that McCoy recommends having on hand at all times. See individual parts &...
  • Page 111 The quantities listed in the table on page 5.3 are total quantities of each part that McCoy recommends stocking. See individual parts & assem- blies pages to see the quantity of each part required for each assembly.
  • Page 112 The quantities listed in the table on page 5.4 - 5.5 are total quantities of each part that McCoy recommends stocking for the purpose of overhaul- ing your tong. See individual parts & assemblies pages to see the quantity of each part required for each assembly.
  • Page 113 5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies MISC TONG PARTS (CONTINUED) Description Part Number Qty. Required Door spring stop cylinder 1037-A4-144 Master lifting link 02-9128 Rigid sling helix pin 1095-218 Rigid sling hanger pin 997-955 BEARINGS & BUSHINGS Description Part Number Qty.

  • Page 114: Illustration 5.1: Gear Train Iso View

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.1: Gear Train ISO View MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 115: Illustration 5.2: Gear Train Top & Side View

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.2: Gear Train Top & Side View Item Type Description Part Number Assembly Lay gear assembly (Pp. 5.18 - 5.19) LGA-14-75K Assembly Pinion assembly (Pp. 5.14 - 5.15) PA-14-75K Assembly Top support half-roller (Pp.

  • Page 116: Illustration 5.3: Support Half-Rollers Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.3: Support Half-Rollers MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 117: Illustration 5.4: Support Half-Rollers

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.4: Support Half-Rollers Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul Assembly Top half-roller 101-6191 Part ¼” UNF straight grease fitting 02-0070 Part 1” UNC hex nut 09-5826 1”...

  • Page 118: Illustration 5.5: Rotary Idler Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.5: Rotary Idler Exploded 5.10 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 119: Illustration 5.6: Rotary Idler Gear Assembly

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.6: Rotary Idler Gear Assembly Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul Grease fitting, ⅛” NPT Part 02-0005 1-½” UNC nylock nut Part 09-5739 Part Idler pad 101-6029...

  • Page 120: Illustration 5.7: Pinion Idler Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.7: Pinion Idler Exploded 5.12 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 121: Illustration 5.8: Pinion Idler Gear Assembly

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.8: Pinion Idler Gear Assembly Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul ¼” UNC x ½” hex socket flat head countersunk Part 09-4003 Part Retaining plate 101-5932 Part...

  • Page 122: Illustration 5.9: Pinion Gear Assembly Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.9: Pinion Gear Assembly Exploded 5.14 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 123: Illustration 5.10: Pinion Gear Assembly

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.10: Pinion Gear Assembly Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul ⅛” NPT 90° grease fitting Part 02-0093 Part ½” UNC x 1-½” hex bolt 09-1170 ½”...

  • Page 124: Illustration 5.11: Clutch Gear Assembly Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.11: Clutch Gear Assembly Exploded 5.16 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 125: Illustration 5.12: Clutch Gear Assembly

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.12: Clutch Gear Assembly Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul ¼” UNC x 1” hex socket flat head machine screws Part 09-4007 Part Clutch shaft retainer plate 1393-50-04 Part...

  • Page 126: Illustration 5.13: Lay Gear Assembly Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.13: Lay Gear Assembly Exploded 5.18 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 127: Illustration 5.14: Lay Gear Assembly

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.14: Lay Gear Assembly Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul ⅛” NPT 90° grease fitting Part 02-0093 ⅛” NPT grease fitting Part 02-0005 ⅜”...

  • Page 128: Illustration 5.15: Shifter Assembly Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.15: Shifter Assembly Exploded 5.20 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 129: Illustration 5.16: Shifter Assembly

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.16: Shifter Assembly Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul Weldment Shifter handle 101-1749 ⅜” x 1-½” clevis pin Part 09-7116 Part Shifting shaft 101-6009 Part Shifter detent ball...

  • Page 130: Illustration 5.17: Cage Plate Assembly Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.17: Cage Plate Assembly Exploded 5.22 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 131: Illustration 5.18: Cage Plate Assembly

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.18: Cage Plate Assembly Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul Backing pin knob Part 02-0017 Backing pin retainer Part 1393-40 Backing pin Part 1393-39 ⅛”...

  • Page 132: Illustration 5.19: 3-½" To 5-½" Jaw Assembly Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.19: 3-½” to 5-½” Jaw Assembly Exploded 5.24 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 133: Illustration 5.20: 3-½" To 5-½" Jaw Assembly

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.20: 3-½” to 5-½” Jaw Assembly Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul ⅜” UNC x ½” flange head machine screw Part 02-9292 Part Standard 5”...

  • Page 134: Illustration 5.21: 6-⅝" To 13-⅝" Jaw Assembly Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.21: 6-⅝ through 13-⅝, 14-⅜ Jaw Assembly Exploded 5.26 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 135 5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.22: 6-⅝ through 13-⅝, 14-⅜ Jaw Assembly Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul ⅜” UNC x ½” flange head machine screw Part 02-9292 Part Standard 5”...

  • Page 136: Illustration 5.23: 14" Jaw Assembly Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.23: 14” Jaw Assembly Exploded 5.28 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 137: Illustration 5.24: 14" Jaw Assembly

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.24: 14” Jaw Assembly Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul ⅜” UNC x ½” flange head machine screw Part 02-9292 Part Standard 5” die insert 13-0008-500-0 Part Jaw Weldment...

  • Page 138: Illustration 5.25: Motor & Mount Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.25: Motor & Mount Exploded 5.30 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 139 5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.26: Motor & Mount Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul Part ¾” UNC x 1-¾” Hex Bolt 09-1292 Weldment Torque/Pressure Gauge Mount Weldment 101-6075 Part 10-24 x ¾”...

  • Page 140: Illustration 5.27: Hydraulic Supports Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.27: Hydraulic Supports Exploded 5.32 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 141: Illustration 5.28: Hydraulic Supports

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.28: Hydraulic Supports Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul Part ½” UNC x 2-½” Hex Bolt 09-1176 ½” Lock Washer Part 09-5119 ⅜” UNC U-Bolt 1-½” I.D. Part 101-2075 ⅜”...

  • Page 142: Illustration 5.29: Brake Bands Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.29: Brake Bands Exploded 5.34 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 143: Illustration 5.30: Brake Bands

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.30: Brake Bands Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul Brake Band Spring Part 1404-29-04 Part ½” UNC Hex Nut 09-9124 ¾” x 1” Hex Socket UNC Shoulder Bolt Part 09-0190 ⅜”...

  • Page 144: Illustration 5.31: Door Latch Assembly Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.31: Door Latch Assembly Exploded 5.36 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 145 5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.32: Safety Door Components Exploded Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul ¾” UNC Nylock Nut Part 1429-39-02 Part ¾” Narrow Flat Washer 09-5013 Part Latch Claw 101-5982...

  • Page 146: Illustration 5.33: Door Assembly Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies 11 8 12 13 Illustration 5.33: Door Assembly Exploded 5.38 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 147: Illustration 5.34: Door Assembly

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.34: Door Assembly Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul 1” UNC Hex Nylock Nut Part 09-5725 Part Door Latch Post 101-6068 Part Door Latch Spacer 101-5991 Weldment Door Weldment...

  • Page 148: Illustration 5.35: Rigid Sling Exploded

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.35: Rigid Sling Exploded PROPERLY TORQUE ALL FASTENERS SECURING LOAD-BEARING COMPONENTS (CHAIN SLINGS, RIGID SLINGS, BACKUP LEGS). 5.40 MOVING GLOBAL ENERGY FORWARD echnical anual...

  • Page 149: Illustration 5.36: Rigid Sling

    5: P & a KT14-75K HYDRAULIC POWER TONG arts ssemblies Illustration 5.36: Rigid Sling Recommended Spares (Per Assembly) Item Type Description Part Number Critical One-Year Overhaul Master Link Part 02-9128 1-¼” UNC Thin Nylock Nut Part 09-1484 Part R-Clip 02-0981 Weldment Rigid Sling Weldment 101-5583...
  • Page 150 This page intentionally left blank...
  • Page 151 KT14-75K HYDRAULIC POWER TONG 6: T ecTion oRque easuRemenT MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 152 This page intentionally left blank...

  • Page 153: Illustration 6.A.1: Torque Gauge

    6: T KT14-75K HYDRAULIC POWER TONG orque easureMenT BASIC TORQUE MEASUREMENT Basic torque measurements are performed using a simple hydraulic measurement system. A hydraulic load cell connects to a calibrated torque gauge through a reinforced flexible hydraulic hose. The torque gauge is factory-calibrated to display accurate torque measure- ments for a tong or tong and backup assembly with a particular arm length.
  • Page 154 6: T KT14-75K HYDRAULIC POWER TONG orque easureMenT BASIC TORQUE MEASUREMENT (CONTINUED:) The images on the preceding page are for illustration purposes only and may not accurately represent the torque gauge and load cell that have been supplied with your equipment. Please note that the parts listed in the following table are correct for accurate torque measure- ment while using the equipment for which this manual is supplied.

  • Page 155: Illustration 6.A.4: Tension Load Cell Exploded

    6: T KT14-75K HYDRAULIC POWER TONG orque easureMenT This is the standard tension load cell supplied by McCoy Item Type Description Global. Contact our sales department for information Assembly Tension Load Cell, 4.08 in about optional application-specific tension load cells.

  • Page 156: Illustration 6.A.6: Turn Counter Encoder Mount Exploded

    200-count EX encoders supplied by McCoy Global for use with WINCATT . For use with all ® configured McCoy tongs with the exception of models 80-0001-X (SL4500 “slim” tongs). Illustration 6.A.6: Turn Counter Encoder Mount Exploded MOVING GLOBAL ENERGY FORWARD...
  • Page 157 6: T KT14-75K HYDRAULIC POWER TONG orque easureMenT TROUBLESHOOTING Under normal operating conditions, and with proper maintenance, the torque gauge and load cell system are designed to give lasting trouble-free performance. Faulty indication on the gauge will very often define a fault within the gauge. IF TROUBLESHOOTING REVEALS THAT THERE IS INSUFFICIENT FLUID IN THE SYSTEM, BEFORE RECHARGING, CHECK THAT ALL SYSTEM COMPONENTS ARE FREE FROM DAMAGE.
  • Page 158 UN-CONTAINED SPILLAGE OF THE HYDRAULIC FLUID IN THIS SYSTEM MAY CONTRAVENE GOV- ERNMENTAL ENVIRONMENTAL REGULATIONS, OR THE ENVIRONMENTAL REGULATIONS AND POLICIES OF YOUR COMPANY. MCCOY GLOBAL HIGHLY RECOMMENDS PLACING YOUR LOAD CELL IN A CONTAINMENT BASIN BEFORE PROCEEDING WITH THE BLEEDING & REFILLING PRO- CESS.
  • Page 159 6: T KT14-75K HYDRAULIC POWER TONG orque easureMenT 6.C.3 Reference Checking Your Torque Measurement System (Continued): Tension Load Cell (continued): Perform a simple calculation to determine the expected indication on the torque gauge based on the known hoisted weight. This is a calculation that must be performed using imperial units (eg., pounds and feet). The calculation is: [KNOWN WEIGHT] x [ARM LENGTH (in feet)].
  • Page 160 This page intentionally left blank...
  • Page 161 The manufacturer information contained in this section has been obtained from publicly available web sites and has been provided for information purposes only. McCoy Global does not guarantee the accuracy of the information contained in this section. All original copyrights claimed by the manufacturer(s) apply.
  • Page 162 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn POWER to be the Best! HYDRAULICS, INC. HYDRAULICS, INC. MOTOR SELECTION GUIDE Features of the 37 Series Standard Motor: Standard Motor - 3000 PSI (Code 61) Six fixed displacement motors ranging from 12 in to 37 in 4-Port double motors from 24 in...
  • Page 163 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn Performance Data VANE CROSSING VANE - With it's vane crossing vane design, the Rineer motor produces much higher volumetric and Charts shown are for 26 and 37 CID. See website at mechanical efficiencies than is possible with a standard vane www.rineer.com for additional charts.
  • Page 164 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn Envelope - Double Key CASE DRAIN AND CROSS PORT LEAKAGE The combined case drain and cross port leakage of the 37 Series motor is STARTING AND STALL TORQUE approximately 1 GPM per 1,000 PSI. This will vary with the oil viscosity and The Rineer motor produces torque curves which are virtually flat, with internal clearance selection.
  • Page 165 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn Model Code M037 - A2 / A4 -037 -TBB -000 Special Code Designator M037 = Motor Series Seal - Package Selection Port Options: A2 = Std. 2 port w/ 4-Bolt Flange ports Bearing Package Selection 30 = Keyed Shaft A4 = 4-Port model w/...
  • Page 166 This page intentionally left blank...
  • Page 167 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn Repair Manual 37 Series 57 Series HYDRAULICS, INC. HYDRAULICS, INC. MOVING GLOBAL ENERGY FORWARD echnical anual Made in USA Data Sheet RM375030 5/30/02...
  • Page 168 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 169 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn SERIES 37 EXP. VIEW, STD. "A" STYLE PART NO. DESCRIPTION ITEM 0370111 SEAL PLATE SNAP RING 0370152 SEAL PLATE 0370175 SEAL, SHAFT, TCN 0370114 O-RING, SEAL PLATE 0370730 SNAP RING, BEARING 6 0370711 BALL BEARING 0370702 SHAFT, SPLINED...
  • Page 170 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn WARNING: RINEER RECOMMENDS FOLLOWING ALL STANDARD SHOP SAFETY PRACTICES SPECIFICALLY INCLUDING WEARING OF EYE PROTECTION. Removal of 37 Series Seal Carrier Plate (Remove only as necessary) 1) Remove snap ring. Bearings from both shafts can now be removed in the following WARNING: manner:...
  • Page 171 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn WARNING: RINEER RECOMMENDS FOLLOWING ALL STANDARD SHOP SAFETY PRACTICES SPECIFICALLY INCLUDING WEARING OF EYE PROTECTION. 1) Remove the rotor. Remove rotating group 2) Remove both the rotor from front housing as and the stator vanes. shown.
  • Page 172 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn WARNING: RINEER RECOMMENDS FOLLOWING ALL STANDARD SHOP SAFETY PRACTICES SPECIFICALLY INCLUDING WEARING OF EYE PROTECTION. Wave springs in the 57 series ROTOR: Normal wear do not need to be replaced. results in polishing of rotor Certain model codes do not faces which does not contain wave springs, while...
  • Page 173 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn Information: Bolt Torque - Seal Kits: Main Bolts (5/8-11): 200 ft. lbs. Standard 37 series seal kit Seal Plate (3/8-16) #0370973 (57 series only): 45 ft. lbs. Standard 37 thru-key seal kit Grease used for bolt threads #0370962 and o-ring retention:...
  • Page 174 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn 7.14 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 175 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn 7.15 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 176 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn 7.16 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 177 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn 7.17 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 178 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn 7.18 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 179 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn 7.19 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 180 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn 7.20 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 181 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn 7.21 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 182 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn 7.22 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 183 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn 7.23 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 184 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn 7.24 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 185 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn 7.25 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 186 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn 7.26 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 187 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn 7.27 MOVING GLOBAL ENERGY FORWARD echnical anual...
  • Page 188 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn Capacity: Pilot-to-open, spring biased closed, unbalanced 60 gpm (240 L/min.) poppet logic element Functional Group: Model: Products : Cartridges : Corrosion Resistant : Logic Element : Unbalanced Poppet, LKHC Pilot-to-open, Switching Element, Spring biased closed, External Pilot Port 3 pilot source Product Description These unbalanced poppet, logic valves are 2-way switching elements that are...
  • Page 189 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn These valves have positive seals Stainless steel cartridge options P or W   between port 3 and port 2. are intended for use within corrosive environments with all external components manufactured in stainless steel or titanium.
  • Page 190 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn Capacity: Direct-acting, pressure reducing valve 80 gpm (320 L/min.) Functional Group: Model: Products : Cartridges : Reducing : 3 Port : Direct Acting Reducer PRJR-LAN Product Description Direct-acting, pressure reducing valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1.
  • Page 191 7: OEM D KT14-75K HYDRAULIC POWER TONG OcuMEntatiOn Full reverse flow from reduced pressure (port 1) to Leakage specified in Technical Data is out of port 3 inlet (port 2) may cause the main spool to close. If with a supply pressure of 2000 psi (140 bar) and the reverse free flow is required in the circuit, consider valve set at mid range.
