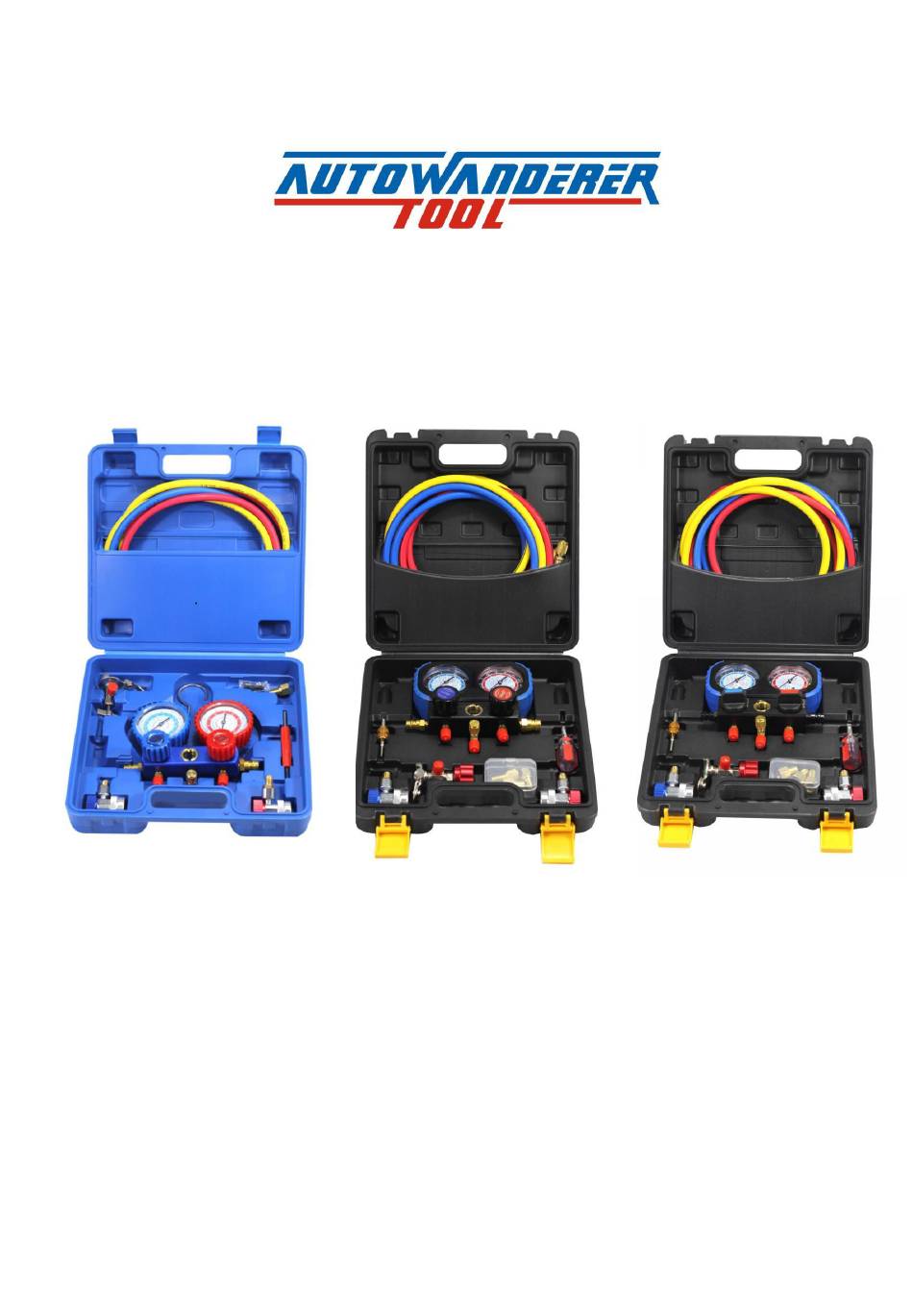

- Page 1 A/C Diagnostic Manifold Gauge Set for Refrigerants Charging AWT-1105B AWT-1105A AWT-1105C (R134A, R22, R410A, R404A) (R134A, R22, R12, R404A) (R134A, R22, R410A, R404A) Please read the manual carefully before operation and implement it according to relevant regulations.
- Page 2 IMPORTANT SAFETY INFORMATION WARNING! 1. Check the integrity of the product. If the parts are damaged before each use, do not use them and replace them in time. 2. Always wear ANSI-approved safety goggles,and ensure there are no other people around who are not wearing safety equipment when using this product.
- Page 3 should use this product. 15. When warming up an engine in preparation for checking of the A/C system, make sure the vehicle’s transmission is placed in “Park” and the emergency brake is applied. 16. Refrigerant can cause severe frostbite if it comes in contact with skin. Follow the safety warnings and instructions provided by the refrigerant manufacturer.
- Page 4 LP: Low Pressure HP: High Pressure...
- Page 5 PREPARATION OPERATION WARING: ONLY USE REFRIGERANT MARKED ON THE GAUGE WITH THIS A/C MANIFOLD GAUGE SET. AWT-1105A: (R134A, R22, R12, R404A) AWT-1105B: (R134A, R22, R410A, R404A) AWT-1105C: (R134A, R22, R410A, R404A) 1. Check the integrity of the product and the accuracy of the gauge needle (calibrate by adjusting the calibration screw)before using.
- Page 6 RECOVERY / EVACUATION 1. Turn on the refrigerant recovery system / vacuum pump. 2. Open both Coupler (3, 4), open LP Manifold Valve (1), HP Manifold Valve (2). 3. Read the amount of vacuum on the Blue LP Gauge. 4. Shut off the refrigerant recovery system / vacuum pump when the vacuum level reaches the manufacturer’s recommended level.
