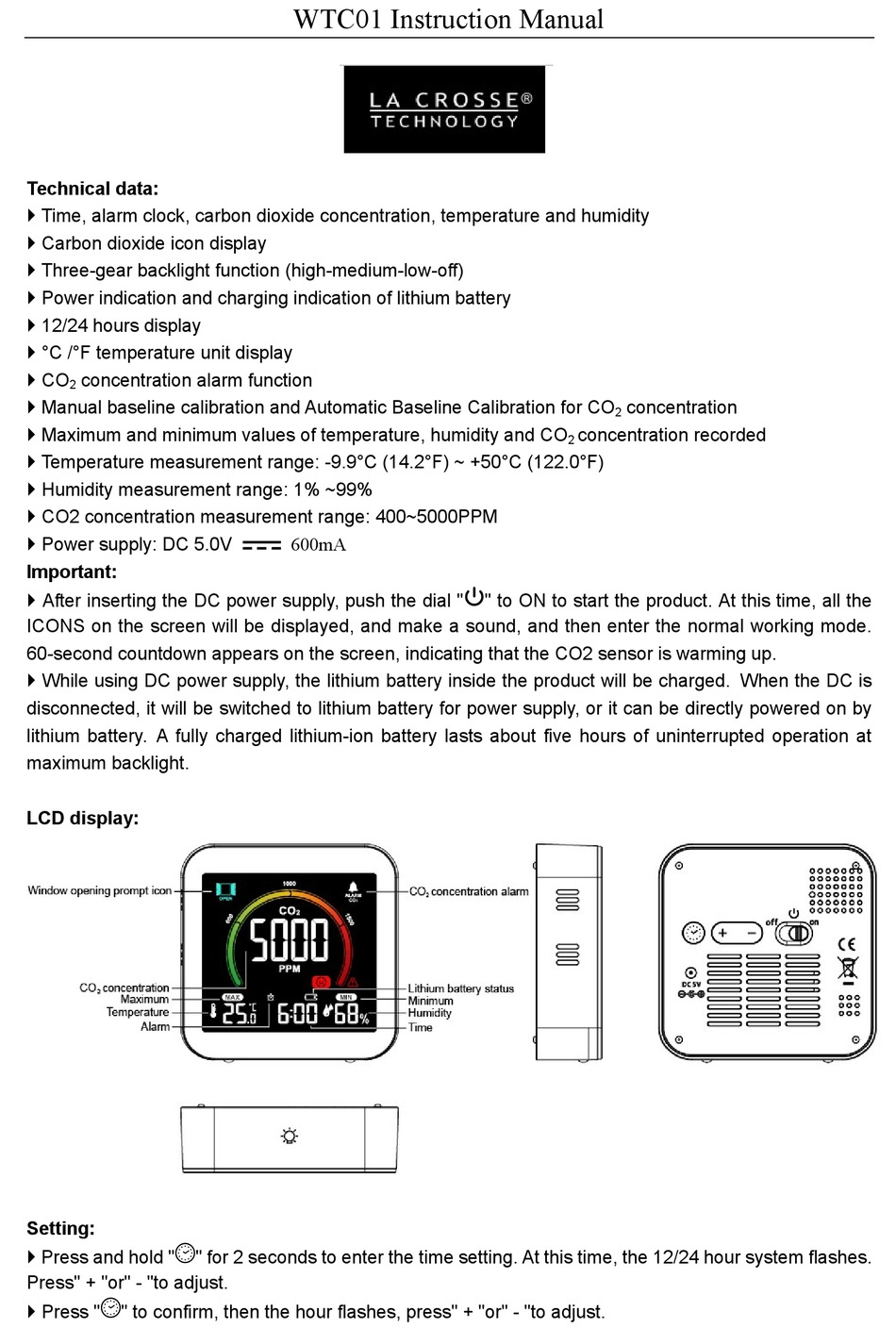

WTC01 Instruction Manual

Technical data:

 Time, alarm clock, carbon dioxide concentration, temperature and humidity
 Carbon dioxide icon display
 Three-gear backlight function (high-medium-low-off)
 Power indication and charging indication of lithium battery
 12/24 hours display
 °C /°F temperature unit display
 CO
concentration alarm function
2
 Manual baseline calibration and Automatic Baseline Calibration for CO
concentration
2
 Maximum and minimum values of temperature, humidity and CO
concentration recorded
2
 Temperature measurement range: -9.9°C (14.2°F) ~ +50°C (122.0°F)
 Humidity measurement range: 1% ~99%
 CO2 concentration measurement range: 400~5000PPM
 Power supply: DC 5.0V
600mA

Important:

 After inserting the DC power supply, push the dial "
" to ON to start the product. At this time, all the
ICONS on the screen will be displayed, and make a sound, and then enter the normal working mode.
60-second countdown appears on the screen, indicating that the CO2 sensor is warming up.
 While using DC power supply, the lithium battery inside the product will be charged. When the DC is
disconnected, it will be switched to lithium battery for power supply, or it can be directly powered on by
lithium battery. A fully charged lithium-ion battery lasts about five hours of uninterrupted operation at
maximum backlight.
LCD display:

Setting:

 Press and hold "
" for 2 seconds to enter the time setting. At this time, the 12/24 hour system flashes.
Press" + "or" - "to adjust.
 Press "
" to confirm, then the hour flashes, press" + "or" - "to adjust.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WTC01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for La Crosse Technology WTC01

  • Page 1 WTC01 Instruction Manual Technical data:  Time, alarm clock, carbon dioxide concentration, temperature and humidity  Carbon dioxide icon display  Three-gear backlight function (high-medium-low-off)  Power indication and charging indication of lithium battery  12/24 hours display  °C /°F temperature unit display ...
  • Page 2 WTC01 Instruction Manual  Press " " to confirm, then the minute flashes, press" + "or" - "to adjust.  Press " " to confirm, then the alarm hour flashes, and press" + "or" - "to adjust.  Press "...
  • Page 3 WTC01 Instruction Manual activities and good ventilation environment. It is not applicable to agricultural greenhouses, farms, warehouses and other places. Description:  According to the change of carbon dioxide concentration, if it rises within one hour or more than or equal to 100 ppm, the arrow points up;...
  • Page 4 WTC01 Instruction Manual socket-outlet shall be installed near the equipment and shall be easily accessible. •This product is not to be used for medical purposes or for public information. •The specifications of this product may change without prior notice. •This product is not a toy. Keep out of the reach of children.
  • Page 5 WTC01 Instruction Manual 67118 GEISPOLSHEIM FRANCE...
