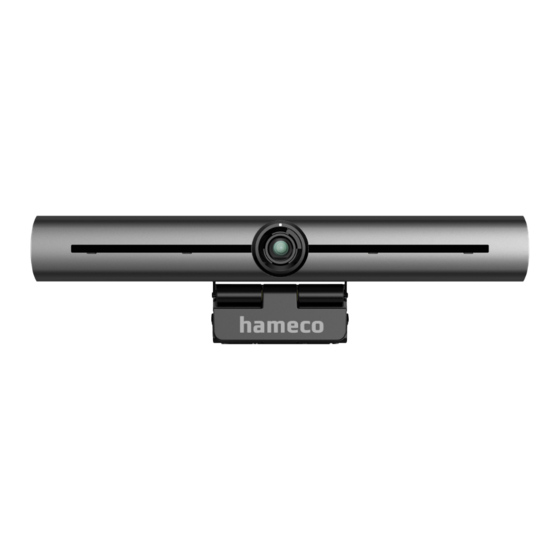

- Page 1 AI 4K UHD Video Conference Camera HV-45 User Manual www.hameco.eu...
- Page 2 HV-45 user manual ATTENTION This manual introduces functions, installation and operations for the camera in details. Please read this manual thoroughly before installation and use. How to Use To prevent damage to this product or any product connected to it, this product can only be used within the specified range.
-
Page 3: Table Of Contents
HV-45 user manual Attentions 1.Fast Installation 1.1 Camera Interfaces..............4 1.2 Camera Operation..............4 2. Product Overview 2.1 Product Introduction..............5 2.1.1 Dimension................5 2.1.2 Accessory................5 2.2 Main Features................6 2.3 Technical Specifications............7 2.4 Interfaces Instruction............... 9 2.4.1 External Interfaces.............. -
Page 4: Fast Installation
HV-45 user manual 1. Fast Installation 1.1 Camera Interfaces Figure 1.1 Product Interfaces 1. Camera lens 3. Built-in MIC 5. Positioning hole 2. Bracket 4. Tripod fixing hole 6. USB 3.0 interface 1.2 Camera Operation 1) Product Installation: Fix the device on LCD screen, top of computer; directly put it on desk or on tripod mounting. -
Page 5: Product Overview
HV-45 user manual 2. Product Overview 2.1 Product Introduction 2.1.1 Dimension 2.1.2 Accessories Figure 2.2 Camera Dimensions Check and confirm all accessories are provided as listed in sheet 2.1. User manual 1 Wireless remote controller 1 piece Accessories USB 3.0 cable 1 piece... -
Page 6: Main Features
HV-45 user manual 2.2 Main Features This product is a new 4K UHD ePTZ video conference camera. It is built with AI functions, which can automatically frame all people in the meeting and make them at the middle of the scene. It also has perfect functions and superior performance, which adopts ad- vanced ISP processing algorithms so as to provide vivid images with evenly clear bright- ness, strong color layering, high resolution, and fantastic color rendition. - Page 7 HV-45 user manual 2.3 Technical Parameters Model HV-45-SG-1 HV-45-SG-2 HV-45-SG-3 Camera Parameters Image Sensor 1/2.8 inch High Quality 4K CMOS Sensor Effective 8.28MP 16:9 Pixels Video output 1* USB3.0, Type B, support audio output over USB3.0 port Audio input...
- Page 8 HV-45 user manual Focus Fixed Exposure Auto / Manual/SAE/Bright Auto framing On/Off/Sensitivity Backlight compensation On/Off Dual Stream On/Off ≥50dB USB Feature Windows 7(1080p at the most), Windows 8.1, Windows 10 ; macOS™ Operation Systems 10.10 or higher, Linux (Require to support UVC.)
-
Page 9: Interfaces Instruction
HV-45 user manual Dimension 222mm×93.25mm×56.5mm Weight Around 0.53kg Application Indoor User Manual; Warranty card, remote controller, USB3.0 cable, Accessory packing list 2.4 Interfaces Instruction 2.4.1 External Interface Figure 2.4 Wiring Diagram www.hameco.eu... -
Page 10: Application Instruction
HV-45 user manual 3. Application Instruction 3.1 Remote Controller 3.1.1 Keys Instruction 1. Indicator light 2. Standby Key Press button once to enter the standby mode, and press it again to restart the output video. 3. Menu Enter/exit the OSD menu or return to the previous menu. -
Page 11: Key Instruction
HV-45 user manual 3.1.2 Applications Pairing: When the remote control is powered on, press the “Zoom In” + “Zoom Out” button simultaneously within 30cm of the camera, release the button after the LED flashes for 3 seconds, enter the pairing mode, the pairing is successful, the LED lights up for 2 seconds and then goes out. - Page 12 HV-45 user manual 4. Set, call, clear, preset Number keys: 1, 2, 3 1.Save the preset position: long press (within 3s-5s) one of the number keys 1 to 3 to preset a preset position corresponding to the number key.
-
Page 13: Main Menu
HV-45 user manual 3.2 Menu Introduction 3.2.1 Main Menu Press the [MENU] key, the menu content will be displayed on the screen, and use the scroll arrow to point to the selected item MENU Setup Exposure Color Image Noise Reduction... - Page 14 HV-45 user manual Anti-Flicker: OFF/50Hz/60Hz for options (only EXPOSURE available in Auto/ Bright modes) Gain Limit: 0~15(only available in Auto /Bright Mode Auto mode) DRC: Off,1~8 SAE: 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/180, Flicker 50Hz 1/250, 1/350, 1/500, 1/1000, 1/2000, 1/3000,...
-
Page 15: Version
HV-45 user manual 3.2.6 Noise Reduction Move the pointer to FOCUS in the Menu, click the NOISE REDUCTION and enter the (NOISE REDUCTION) as follows: 2D noise reduction: auto, off, 1~7 NOISE 3D noise reduction: off, 1~8 NR-2D NR-3D [ ]Select [←... -
Page 16: Maintenance And Troubleshooting 4.1 Maintenance
HV-45 user manual 4. Maintenance and Troubleshooting 4.1 Camera Maintenance 1) Please disconnect the camera if it is not used for a long time. 2) Use soft cloth or tissue to clean the camera cover. 3) Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent if needed. -
Page 17: Product Disposal
HV-45 user manual 5. Compliance statement This device complies with the related CE standards. 6. Product disposal Safety For your own safety, this product should only be used with CE and RoHS approved equipment. Using this headset with non-approved equipment would void the warranty of this product.
