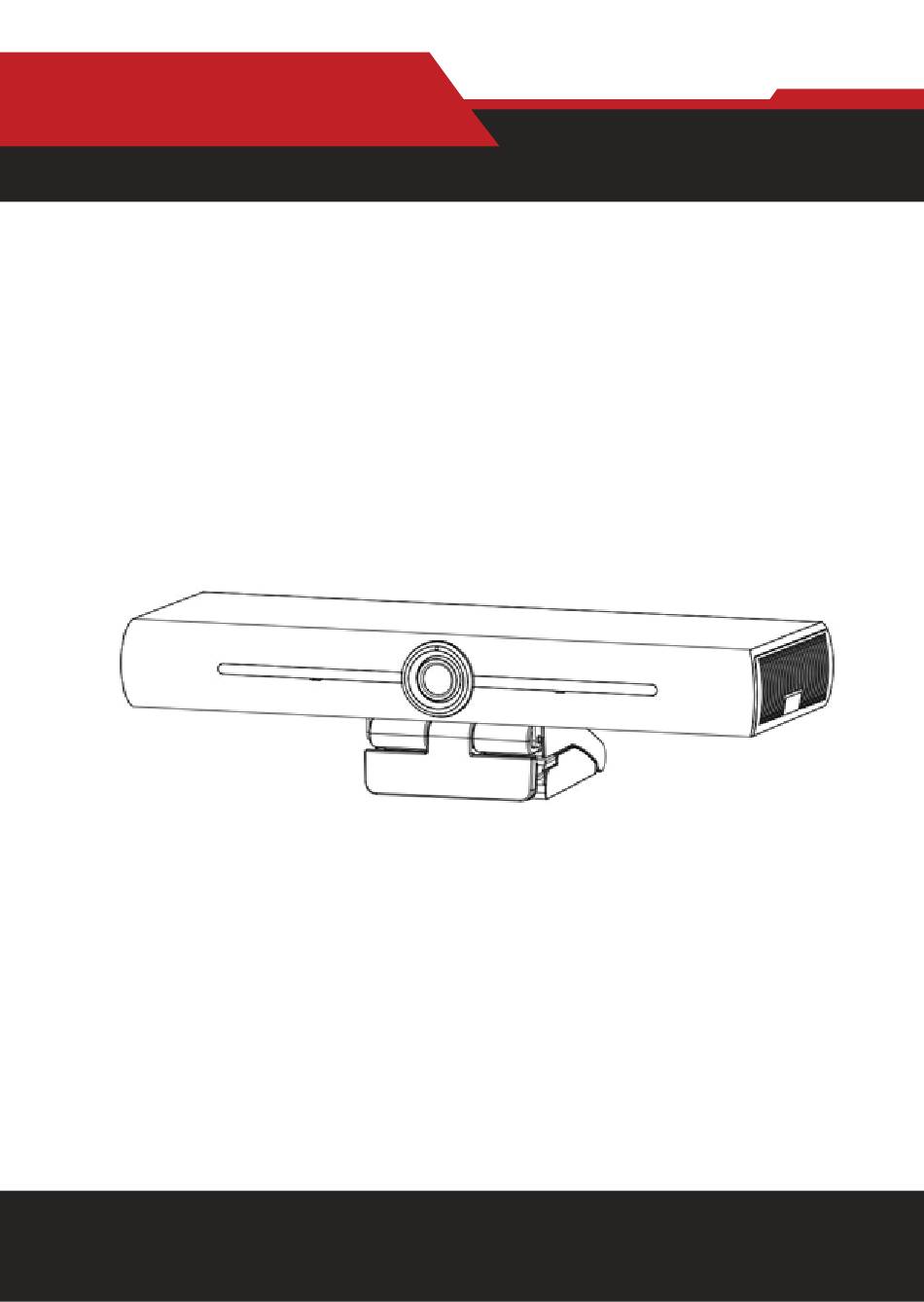

- Page 1 AI 4K UHD Video Conference Camera HV-45 (HM) User Manual V1.0 www.hameco.eu...
-
Page 2: Table Of Contents
HV-45 User Manual Content Attention ..................3 1. Fast Installation ............... 3 1.1 Camera Interface ..............4 1.2 Camera Operation ..............4 2. Product Overview ..............2.1 Product Introduction .............. 2.1.1 Product Model ..............5 2.1.2 Dimensions ................5 2.1.3 Accessories ................ -
Page 3: Attention
HV-45 User Manual ATTENTION This manual introduces functions, installation and operations for the camera in detail. Please read this manual thoroughly before installation and use. 1.How to Use To prevent damage to this product or any product connected to it, this product can only be used within 1). -
Page 4: Fast Installation
HV-45 User Manual 1. FAST INSTALLATION 1.1 CAMERA INTERFACE Figure 1.1 camera interface 1.camera lens 2.bracket 5. positioning hole 6. USB 3.0 output interface 3. built-in MIC 1.2 Camera Operation 1. Product Installation: Fix the device on an LCD screen, on top of a computer;... -
Page 5: Product Overview
HV-45 User Manual 2. PRODUCT OVERVIEW 2.1 Product Introduction 2.1.1 Product Model hameco HV-45 AM -- 83° VCM Motor Lens HM -- 120° Fixed Lens 2.1.2 Dimensions 2.1.3 Accessories User manual 1 Wireless remote controller 1 piece USB3.0 cable 1 piece... -
Page 6: Main Features
HV-45 User Manual 2.2 Main Features This product is a new 4K UHD ePTZ video conference camera. It is built with AI func- tions, which can automatically frame all people in the meeting and place them in the middle of the scene. It also has perfect functions and superior performance,... - Page 7 HV-45 User Manual Model Number Camera Parameter Image Sensor 1/2.5 Inch High Quality 4K CMOS Sensor 8.28MP 16:9 Video output port 1* USB3.0, Type B, support audio output over USB3.0 Audio input 2 built-in MIC pickups View Angle 93.5°(D)/83°(H)/ 53.1°(V) 126°(D)/120°(H)/85°(V)
- Page 8 HV-45 User Manual Auto framing Backlight compensation Dual stream >55dB USB Feature Operation Systems higher, Linux (Require to support UVC.) Video Compression format YUY2, MJPG, H.264, H.265 Audio over USB3.0 Support USB communication UVC, UAZ protocol PTZ control Support EPTZ Hardware requirement /USB3.0 port ( USB 3.0 is needed for 4K)
-
Page 9: Interface Instruction
HV-45 User Manual 2.4 Interface Instruction 2.4.1 External Interface The interface illustration is as Figure 2.4 below: www.hameco.eu... -
Page 10: Application Instructions
HV-45 User Manual 3. APPLICATION INSTRUCTIONS 3.1 Remote Controller 3.1.1 Key Instructions 1. Standby Key: After pressing for 3 seconds, the camera will be in standby mode. Press again for 3 seconds, and the camera will self-test again and go back to the HOME po- sition. -
Page 11: Applications
HV-45 User Manual 10. Menu Setting Open or close the OSD menu Enter / exit the OSD menu or return to the previous menu 11. Address Setting * # F1 * # F2 : Camera Address No. 4 12. Key Combination Functions... - Page 12 HV-45 User Manual 3) Presets 1. Preset setting: To set a preset position, the users should press set a relative preset. Note: 10 preset positions in total are available by remote controller. 2. Preset calling: Press a number key 0-9 directly to call a relative preset.
-
Page 13: Menu Setting
HV-45 User Manual 3.2 Menu Setting 3.2.1 Main Menu MENU using the scroll arrow to point at or highlight the selected items. press 2. Image Style Setting: press 3. Exposure Setting HOME (EXPOSURE SET) as follows: Mode: Auto, Manual, Shutter priority, Iris priority... - Page 14 HV-45 User Manual 4. Color Setting as follows: WB Mode: Auto, Manual, One Push, 3000K, 3500K, 4000K, 4500K, 5000K, 5500K, 6000K, COLOR RG Tuning: mode) WB Mode Auto BG Tuning: RG Tuning mode) BG Tuning Red Gain: Saturation 100%...
- Page 15 HV-45 User Manual 6. Focus Setting FOCUS MODE Focus Mode: Auto, manual, one-push Focus Mode Auto AF-Zone: Up, middle, down, overall AF Zone Center AF-Sensitivity: High, middle, low AF Sensitivity Select Change Value 7. Noise Reduction Setting HOME (NOISE REDUCTION) as follows,...
- Page 16 HV-45 User Manual 8. Auto Framing Setting AUTO FRAMING Auto Framing Close Select Change Value 9. Dual Stream Setting 10. Version Move the pointer to VERSION VERSION CAM Version 1.0.0 2019-7-31 Focus Version 1.0.6 2018-8-21 Select Change Value 11. Restore Default...
-
Page 17: Maintenance And Troubleshooting
HV-45 User Manual 4. MAINTENANCE AND TROUBLESHOOTING 4.1 Maintenance 1) Please disconnect the camera if it is not used for a long period time. 2) Use a soft cloth or tissue to clean the camera cover. 3) Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent if needed. -
Page 18: Product Disposal
HV-45 User Manual 5.PRODUCT DISPOSAL Safety For your own safety, this product should only be used with CE and RoHS approved equipment. Using this product with non-approved equipment would void the warranty. Disposal of your product Municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials to reduce the impact on human health and the environment.
