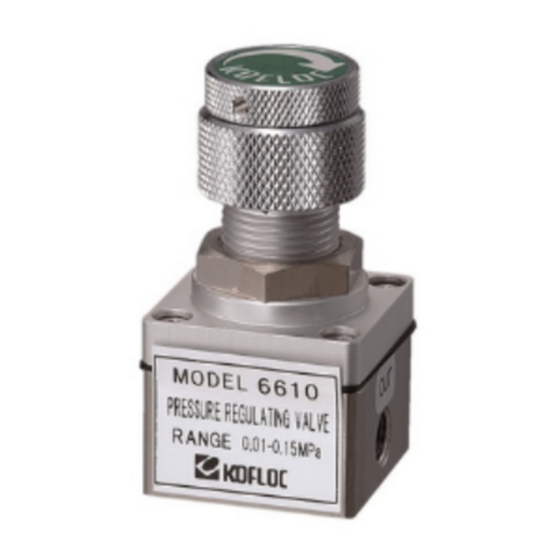

- Page 1 FJ400035G1 Created on 2021/12/20 Pressure Regulating Valve MODEL 6610 Instruction Manual Thank you for your selection of “KOFLOC Pressure Regulating Valve”. Prior to use, read this manual thoroughly to ensure your new valve will operate to its fullest capacity.
- Page 2 ・Any failures which may occur during this period and are attributable to our workmanship will be corrected free of charge. ・KOFLOC shall bear no responsibility whatsoever for breakage or troubles of equipment resulting from neglect of the precautions presented in this manual or use of the pressure regulating valve in manners not described herein.
- Page 3 ① Use the pressure regulating valve within the range of the specification. ② Prior to introducing gas, turn the adjust knob of the valve counterclockwise fully. Then introduce gas. ③ This Model 6610 does not guarantee zero stop. Where zero stop is required, use a stop valve. - 2 -...
- Page 4 FJ400035G1 Created on 2021/12/20 【Specifications】 Fluid Various gases Primary side 0.4MPa(G) maximum pressure Secondary side 0.01MPa to 0.15MPa(G) regulating pressure Maximum flow rate 5L/min Minimum. operating 0.1MPa or over pressure difference Materials of areas SUS316,SUS304,FKM,PTFE,PCTFE,SUS303, in contact with gas Hard glass Pressure resistance 0.8MPa(G) Reproducibility...
- Page 5 KOFLOC specification. ② Scope of warranty If the KOFLOC product fails during the warranty period due to a cause attributable to KOFLOC, KOFLOC shall, at its option and expense, provide a replacement product or repair the failed product at the KOFLOC factory.
