- Page 1 DUST EXTRACTOR DUST EXTRACTOR INDUSTRIAL ELECTRO-PNEUMATIC DUST EXTRACTOR M-CLASS & L-CLASS INSTRUCTION MANUAL Art.No.: 910-8***...
-
Page 2: Table Of Contents
PROMA-X DUST EXTRACTOR Industrial Electro-Pneumatic Dust Extractor page DESCRIPTION IMPORTANT SAFETY INFORMATION Explanation of symbols and signs used Important safety information DISPLAY AND CONTROL ELEMENTS COMMISSIONING Before every use Switching on and off Switching on the vacuum cleaner Setting the suction hose diameter Adjusting the suction power Switching off the vacuum cleaner OPERATING MODES... - Page 3 CLEANING REPAIR Exchange pneumatic connections TROUBLESHOOTING AND REPAIR GENUINE ACCESSORIES TECHNICAL DATA TESTS AND APPROVALS DUST CLASS DECLARATION OF CONFORMITY version: date of issue: 04/02/2022 revision date: PAGE 3 | PROMA-X DUST EXTRACTOR...
-
Page 4: Description

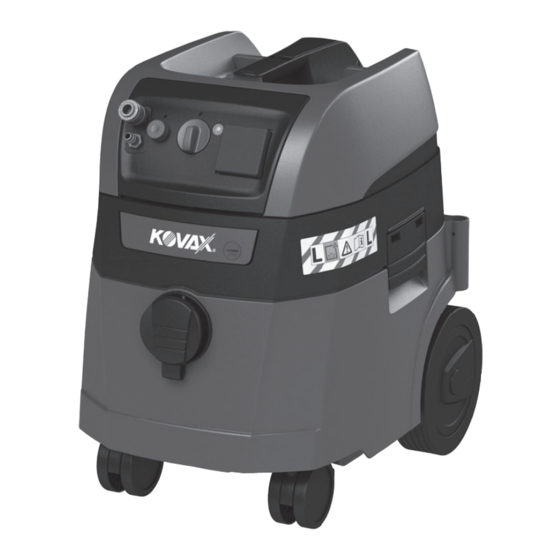

DESCRIPTION 1. Cable hook 11. Rotary slide inside 2. Handle 12. Castor 3. Switch plate 13. Container 4. Rotary switch* 14. Wheel 5. Fill level* 15. Latch 6. Plug socket 16. Motor housing 7. Speed control* 17. Support plate 8. Setting suction hose diameter* 18. -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION Explanation of symbols and signs used SYMBOL / SIGNAL WORD DISCRIPTION This is the warning symbol. It warns against possible risk of injury. Follow all instructions which are marked with this sign to avoid injury or death. The warning symbol always appears in association with the signal words DANGER, WARNING and CAUTION. -
Page 6: Important Safety Information
IMPORTANT SAFETY INFORMATION DANGER Risk of explosion and fire! Do not use the vacuum cleaner to vacuum up the following: • flammable or explosive solvents • materials soaked in solvents • potentially explosive dusts • liquids such as petrol, oil, alcohol, diluents •... - Page 7 IMPORTANT SAFETY INFORMATION vacuum cleaner after use and disinfect it to avoid microbial contamination. Do not use any steam jets or high-pressure cleaners for cleaning. Only operate the vacuum cleaner under supervision. Disconnect the vacuum cleaner from the mains in the event of a longer work interruption. Do not clean fi lter cartridges using compressed air. WARNING Never exceed marked maximum input pressure on the dust extractor (116 PSI/8 bar).
-
Page 8: Display And Control Elements
DISPLAY AND CONTROL ELEMENTS Switch position Function Description Vacuum cleaner is switched off • Plug socket under voltage • Plug socket under voltage Vacuum cleaner starts immediately • Filter cleaning function switched off • Plug socket under voltage • Filter cleaning at start-up and automatic fi lter cleaning function after differential pressure detection Standby mode... -
Page 9: Commissioning
COMMISSIONING Before every use Make sure that the following conditions are met: � Vacuum cleaner, mains cable, suction hose and accessories are not damaged. � All filters have been inserted and are not damaged. Switching on and off The plug socket on the vacuum cleaner remains always under voltage, regardless of the main switch position. WARNING Danger of injury by automatically starting power tool! Switch off power tool or pneumatic tool before connecting to the vacuum cleaner. -
Page 10: Setting The Suction Hose Diameter
COMMISSIONING Setting the suction hose diameter* Set suction hose diameter at the switch. � CAUTION Selector switch for minimum air volume flow signal (horn and light) on vacuum cleaners with dust class „M“ In the modes >AR< and >IR< the following setting is made, depending on the diameter of the hose: Selector switch for suction hose inner diameter Volume air flow Ø... -
Page 11: Permanent Filter Cleaning
PERMANENT FILTER CLEANING The vacuum cleaner is fitted with an electromagnetic filter cleaning system, which can be used to clean any attached dust from the filter cartridges. The folded filter cartridges are cleaned alternately one after the other so that continuous work is guaranteed. -
Page 12: Emptying The Container
EMPTYING THE CONTAINER NOTE Only permitted for dust with workplace exposure limits > 1 mg/m Switch off the vacuum cleaner, pull out the mains plug. � Open the latches. � Remove the cover and suction hose from the container. � Empty the container by pouring out. -
Page 13: Insert Fleece Filter Bag
EMPTYING THE CONTAINER Insert fl eece fi lter bag NOTE Only use fl eece fi lter bags for dry vacuum cleaning. Slide the fl ange completely over the intake socket � NOTE Operating the rotary slide Turn the red rotary slide inside to position CLOSE to the stop �... -
Page 14: Changing The Filter
CHANGING THE FILTER Changing the folded filter cartridges Clean the filter cartridges before changing them. � Turn the lock on the latch through 90° in a counter-clockwise direction with a coin or similar object and push the latch � to the rear. Fold up the cover. �... -
Page 15: Maintenance
MAINTENANCE NOTE Switch off the vacuum cleaner and pull out the mains plug before carrying out any maintenance work. For maintenance by the user, the vacuum cleaner must be - dismantled, - cleaned and - maintained, as far as possible without creating any danger to the maintenance personnel or other. Precautionary measures Suitable precautionary measures include: - Cleaning before dismantling... -
Page 16: Cleaning
CLEANING NOTE Acids, acetone and solvents can damage parts of the vacuum cleaner. Clean container and accessories with water. � Wipe the top section with a damp cloth. � Allow the container and accessories to dry. � REPAIR WARNING Improperly repaired vacuum cleaners pose a hazard for the user! Have repairs carried out by qualified personnel only, e.g. - Page 17 TROUBLESHOOTING AND REPAIR Vacuum cleaner does Mains plug not in socket Plug mains plug into socket not start No mains voltage Check fuse Mains connection cable defective Replace Cover not properly closed Close Water sensor switched off Empty container Vacuum cleaner in standby mode Set switch to >I<...
-
Page 18: Genuine Accessories
2 Way Union Plus Connector for connecting 2 suction hoses 9100822 regardless of hose diameter, for the same work independently. Length: 16 cm Push Handle Plus Set push handle incl. pin plug, for all Kovax 9100825 vacuum cleaners. TECHNICAL DATA Voltage 220-240... -
Page 19: Tests And Approvals
TESTS AND APPROVALS Electro-technical tests must be carried out in accordance with the accident prevention regulations (DGUV V3) and in accordance with DIN VDE 0701 Part 1 and Part 3. These tests are required in accordance with DIN VDE 0702 at regular intervals and after repair or modifi cation. -
Page 20: Declaration Of Conformity
DECLARATION OF CONFORMITY Kovax Europe B.V. | 7602 KC Almelo | The Netherlands We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EC Directives, both in its basic design and construction as well as in the version put into circulation by us. - Page 21 PAGE 21 | PROMA-X DUST EXTRACTOR...
