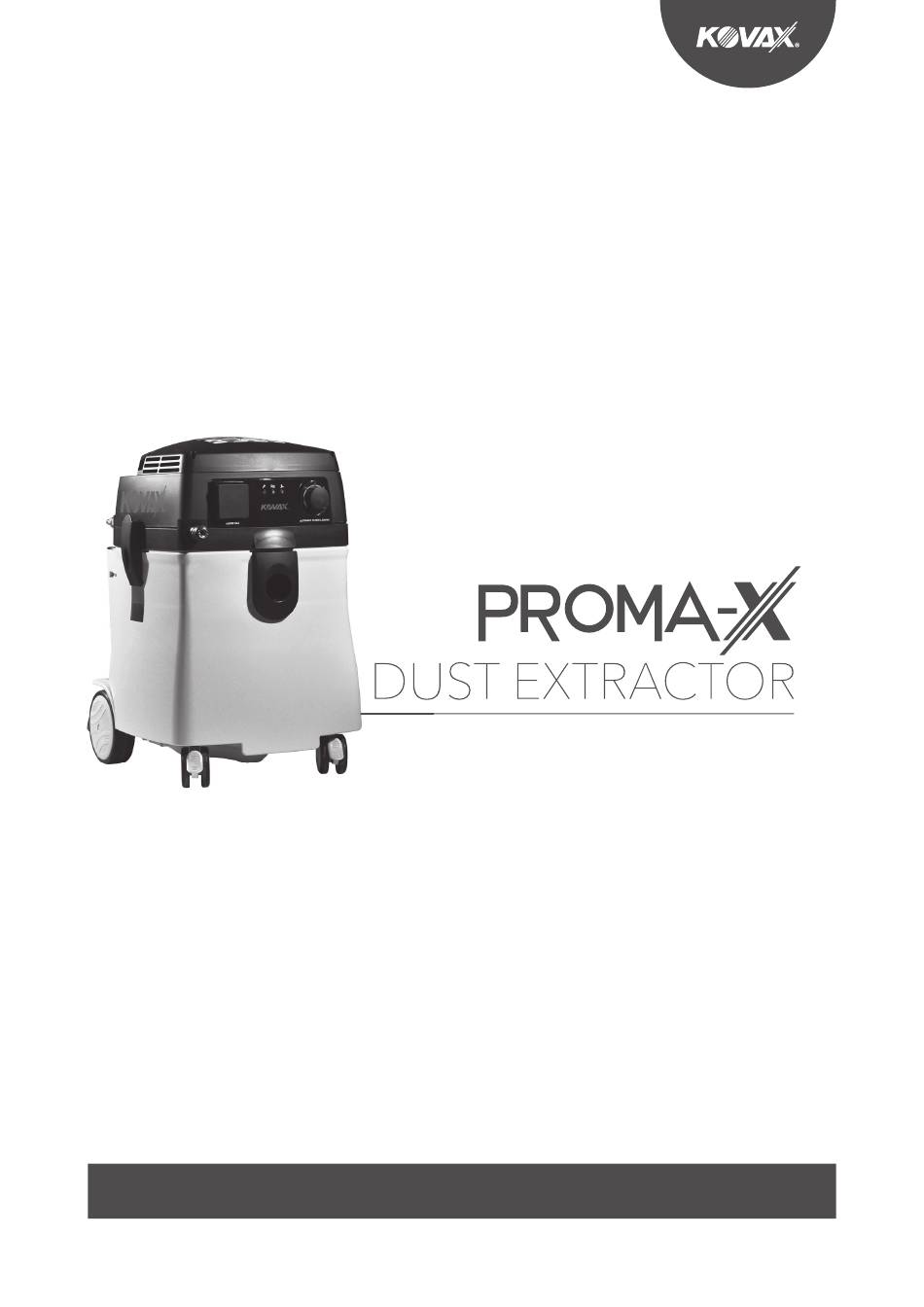

- Page 1 INDUSTRIAL ELECTRO-PNEUMATIC DUST EXTRACTOR - M-CLASS & L-CLASS INSTRUCTION MANUAL M-class Art.No.: 910-0810 | L-class Art.No.: 910-0820...
-
Page 3: Table Of Contents
Suction hose setting (M-class only) Acoustic alarm (M-class only) Wet vacuum Liquid level indicator MAINTENANCE Service indicator Ordinary operations check Bag replacement Filter replacement Disposal information TROUBLESHOOTING & SOLUTIONS 14 version: date of issue: 28/07/2017 revision date: PAGE 3 | PROMA-X DUST EXTRACTOR... -
Page 4: Overview
THE PACKAGE CONTAINS: - THE MACHINE EQUIPPED WITH POWER CORD; - 1 VACUUM HOSE (19); - 1 PAPER DUST BAG (30); - 1 SWIVELLING NOZZLE + N 2 FRONT WHEELS + N 2 RUBBER HOSE CUFFS. PAGE 4 | PROMA-X DUST EXTRACTOR... -
Page 5: Declaration Of Conformity
Kovax Europe B.V. | 7602 KC Almelo | The Netherlands We declare under our sole responsibility that the products ProMa-X Industrial Electro-pneumatic Dust Extractor M-class & L-class, to which this declaration relates is in conformity with the Essential Requirements of Safety of the following Directives: 2006/42/CE;... -
Page 6: Warning
- The electrical safety of the tool is granted only by using original Kovax parts. - Check the tool, filters, dust bag, power cord and fittings regularly for wear. - Page 7 - Flammable or explosive liquids (i.e. petrol, thinners, etc.). - Aggressive liquids or substances (i.e. acids , bases, solvents, etc.). ADDITIONAL SAFETY WARNINGS - All maintenance must be carried out by trained personnel. For service, contact your Kovax Dealer. PAGE 7 | PROMA-X DUST EXTRACTOR...
-
Page 8: Specific Use & Technical Specifications
CAPACITY OF DUST COLLECTION BAG MAX 5 KG CONTAINER CAPACITY 45 L POWER CONTROL SWITCH MAN - O - AUT PNEUMATIC SECTION INLET AIR PRESSURE 6 BAR MAX COMPRESSED AIR FLOW 1450 L/MIN INLET FITTING 3/8” G FEMALE PAGE 8 | PROMA-X DUST EXTRACTOR... -
Page 9: Getting Started
GETTING STARTED PAGE 9 | PROMA-X DUST EXTRACTOR... -
Page 10: Power Supply
- Insert the tool plug into the front panel socket (16) (pic. 3). - Connect the tool to the swivelling nozzle with the hose (19) (pic. 5). - Do not plug electric tools exceeding the power indicated on the front panel. PAGE 10 | PROMA-X DUST EXTRACTOR... -
Page 11: Pneumatic Tool Connections
For operator’s safety the appliance for M-class dust are provided with an indicator which operates in case of the air velocity through the hose falling below 20 m/sec. Check the hose diameter and set the correct value on the front panel throttle (32) (pic. 23). Always use genuine Kovax hoses. PAGE 11 | PROMA-X DUST EXTRACTOR... -
Page 12: Acoustic Alarm (M-Class Only)
The indicator turns on for scheduled service to keep the machine working conditions. When warning light is on contact Kovax to check and service the appliance and reset the warning light. The prolonged use of the vacuum cleaner with the warning light on can cause more maintenance operation. -
Page 13: Bag Replacement
- fit new filter cartridges in the filter frame (pic.18) and reassemble it on the vacuum head. use genuine kovax spare parts only. contact kovax for part codes. Kovax Europe B.V. will not be held responsible for direct or indirect damages resulting from non-compliance with the requirements of this manual. Disposal... -
Page 14: Troubleshooting & Solutions
Contact Kovax Insuffi cient Power for pneumatic tool Insuffi cient compressed air feeding Check air passage Red indicator on Ordinary maintenance limit exceeded Contact Kovax Yellow indicator on Max. liquid level exceeded Empty the bin PAGE 14 | PROMA-X DUST EXTRACTOR... - Page 16 Kovax Europe B.V. Bedrijvenpark Twente 49 7602 KC Almelo The Netherlands www.kovax.eu...
