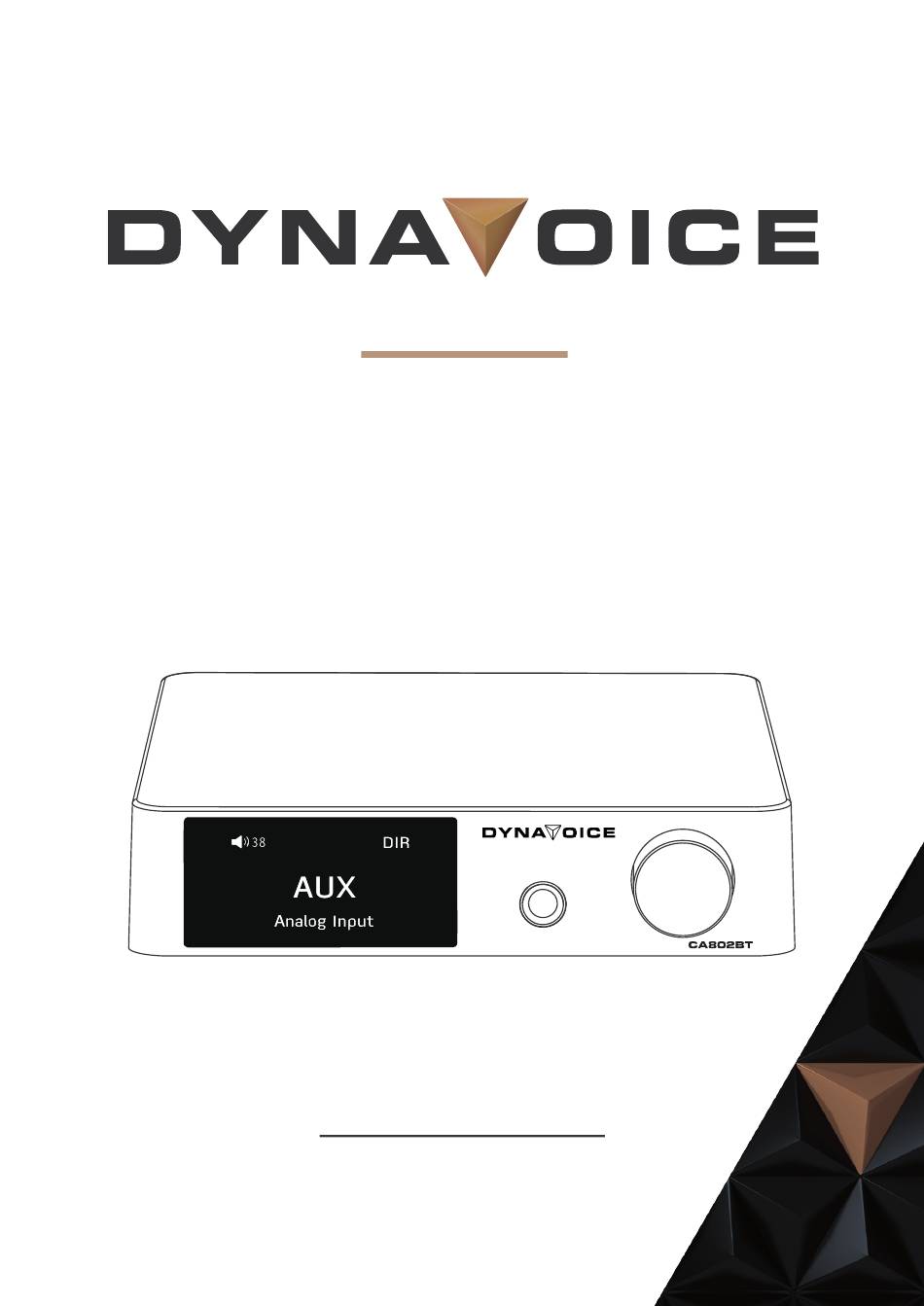

- Page 1 EXPERIENCE THE NORDIC SOUND User manual Model: CA802BT...
- Page 2 This is where we design and engineer Dynavoice. The Dynavoice logo is a seal of quality. It guarantees that what you now have in your possession comes from a passion for music and sound with you, the listener, in focus.

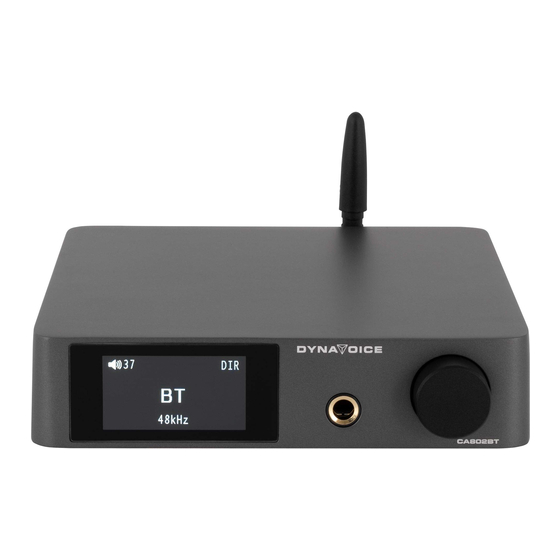

- Page 3 Features Dynavoice Challenger CA802BT • One piece aluminium die-cast chassis • High performance/efficiency (class D) power amplifier chip by Infineon • USB, optical, coaxial inputs • Pre out for subwoofer • APTX Bluetooth 5.0 receiver • Low distortion volume control chip by NJRC (NJW1194) •...
-
Page 4: Table Of Contents
Table of content Important safety information ......................Unpacking/before you start ........................ Functions ................................Main unit front ..........................Main unit back ..........................Remote control ..........................Operating instructions ..........................10-12 Connecting your amplifier........................Technical specifications.......................... -
Page 5: Important Safety Information
Unplug the amplifier during lightning storms or when unused for long periods of time. All Dynavoice products are designed and manufactured to meet the highest quality standard. Refer all servicing to qualified service personnel. Servicing is required when the product has been dama-... -
Page 6: Unpacking/Before You Start
When life happens and you move to a new home, you will want to take your Dynavoice products with you. The easiest way to do this is in the original packaging so if possible - keep the box and the packing material. -
Page 7: Functions
Functions Main unit front CA802BT 1. Multi-function knob 3. Display 2. 6,35mm Headphone jack 4. Remote sensor 1. Multi-function knob Press and hold to toggle ON/OFF. Press once for menu, turn left/right to adjust volume / switch menu function. 2. 6,35mm Headphone jack Connect headphones, see Operation instructions for menu directions. -
Page 8: Main Unit Back
Main unit back /R IN COAXIAL 5. Bluetooth Antenna 10. USB input 6. Coaxial IN / Right line input 11. Right speaker output 7. Left channel input 12. Left speaker output 8. Optical Audio input 13. Power input (DC 24V) 9. - Page 9 9. Subwoofer Out Connect an RCA jack mono signal cable from your active subwoofer. 10. USB input 32bits 384KHz USB audio with driverless technology. 11. Right speaker output Please pay attention to the + and – marking on the amplifier speaker connections. Not doing so may affect the sound in a negative way.
-
Page 10: Remote Control
Remote control The remote control requires 2x AAA batteries, make sure that there are no obstructions between the amplifier and the remote signal. Power ON/OFF Mute/Long press Display dimmer to BT reconnect Menu/OK Up/down select Function switch EQ switch Output switch Input switch Volume + Volume -... -
Page 11: Operating Instructions
Menu button on the remote control. Connecting the Bluetooth Select Bluetooth in the Input menu. Turn on the “Bluetooth pairing” feature for the phone/music player. Search and select “CA802BT” The phone/music player will confirm “connected” when pairing is successful. Troubleshooting If the phone/music player doesn’t pair, use the “Bluetooth clear”... - Page 12 Output setting OUTPUT • Speakers • Headphones Speakers Headphones Toggle and press OK to access required menu. EQ settings • Direct Direct • Tone • Bass Tone • Super Bass Bass • Rock Super Bass • Soft Rock • Clear Soft Clear Toggle and press OK to access...
- Page 13 Color COLOR • White • Red White • Green • Blue Green • Yellow Blue • Cyan Yellow • Orange Cyan • Purple Orange Purple Toggle to select the display color of your choice. BT list clear BT list clear Turn the multifunction knob or press up or down on the remote to discon- Turn to clear...
-
Page 14: Connecting Your Amplifier
Connecting your amplifier Below you will find some examples on how to connect your speakers to your new Dynavoice ampli- fier. These are some basic type of connections, please consult your local Dynavoice dealer if you feel unsure. Single-wiring The standard way to connect your speaker is following the positive (+) and negative (-) markings on the speaker to your amplifier creating a single-wiring connection. -
Page 15: Technical Specifications
For info on Alternative arrangements may apply your nearest recycling point, check in other jurisdictions. with your local waste authority. ©2020, Winn Scandinavia AB Dynavoice and Experience the Nordic Sound are trademarks of Winn Scandinavia AB, registered in Sweden and other countries... - Page 17 Thank you for choosing Dynavoice! For further information and contact, please visit our website dynavoice.se, or our Facebook page facebook.com/Dynavoice.
