Summary of Contents for DYNAVOICE CL-28

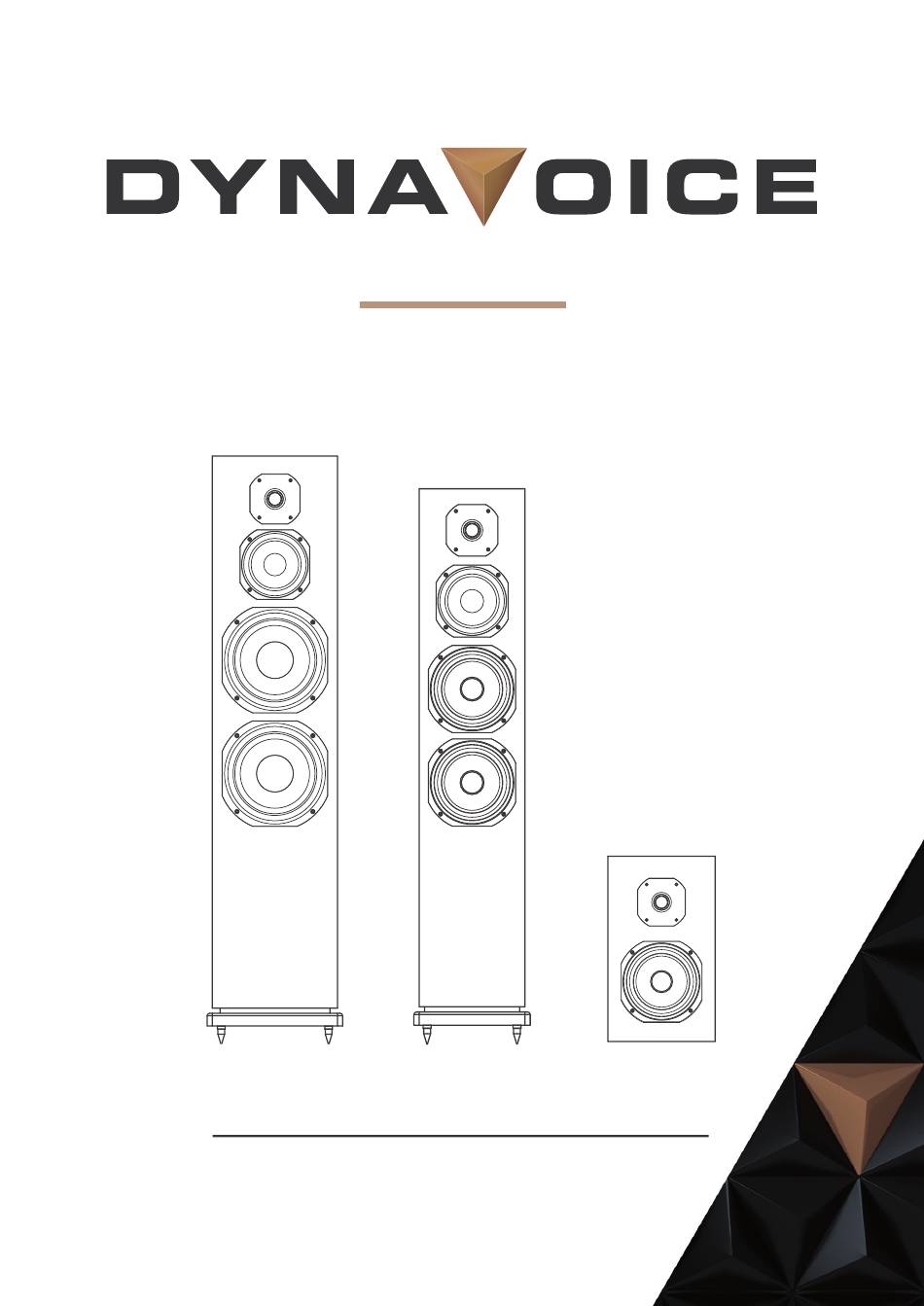

- Page 1 EXPERIENCE THE NORDIC SOUND User manual Model: CL-28, CL-26 & CL-16...
- Page 2 This is where we design and engineer Dynavoice. The Dynavoice logo is a seal of quality. It guarantees that what you now have in your possession comes from a passion for music and sound with you, the listener, in focus.
-
Page 3: Table Of Contents
Table of content Important safety information......................Unpacking................................Getting started..............................Positioning your speakers........................Hi-Fi setup (stereo)........................Connecting your speakers........................Single-wiring............................Bi-wiring..............................Bi-amping............................Technical specifications........................... Dynavoice Classic CL-16......................Dynavoice Classic CL-26......................Dynavoice Classic CL-28...................... -
Page 4: Important Safety Information
Be extra careful when using acoustic feet and spikes. All Dynavoice products are designed and manufactured to meet the highest quality standard. Refer all servicing to qualified service personnel. Servicing is required when the product has been dama-... -
Page 5: Unpacking
When life happens and you move to a new home, you will want to take your Dynavoice products with you. The easiest way to do this is in the original packaging so if possible - keep the box and the packing material. -
Page 6: Positioning Your Speakers
All Dynavoice Classic models are equipped with a bass port on the back of the speaker. Make sure to leave at least 10-30cm of space behind the speakers so that the air flow is uninterrupted. -
Page 7: Connecting Your Speakers
Connecting your speakers To get the best experience possible from your new Dynavoice speakers we recommend you to use high quality cables and plugs. Always make sure that your amplifier is turned off when you connect the speakers to your system. Disregarding this advice may permanently damage your speakers. -
Page 8: Bi-Wiring
Bi-Wiring LEFT RIGHT STEREO AMPLIFIER RIGHT SPEAKER LEFT SPEAKER Bi-Amping If you wish to use two separate amplifiers, one for the high frequencies and one for the low frequen- cies you will make a bi-amp connection. On the two floor standing models the midrange and tweeter are active through the first terminal pair and the woofers are active through the second terminal pair. -
Page 9: Technical Specifications
Dimensions HxWxD: 1080x245x300mm Sensitivity (1w/1m): 88dB Net weight (each): 23.6 kg Power handling: 200W (RMS) Recommended amplifier power: 50-300W (RMS) ©2020, Winn Scandinavia AB Dynavoice and Experience the Nordic Sound are trademarks of Winn Scandinavia AB, registered in Sweden and other countries... - Page 10 For info on Alternative arrangements may apply your nearest recycling point, check in other jurisdictions. with your local waste authority. For further information and contact, please visit our website dynavoice.se, or our Facebook page facebook.com/Dynavoice.
