Summary of Contents for Portacool CYCLONE PACCY120

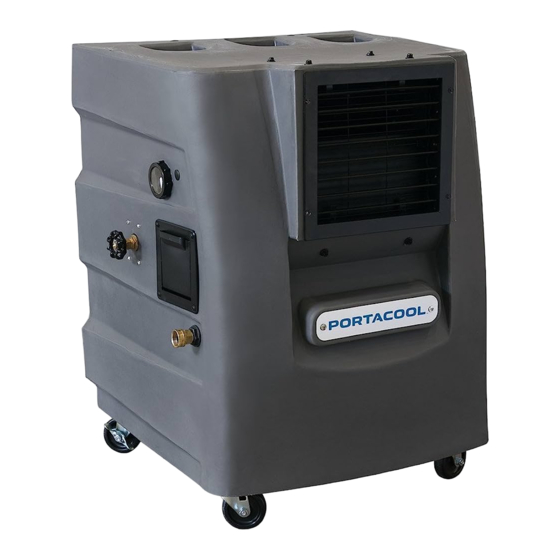

- Page 1 PORTACOOL CYCLONE OWNER ’ S MANUAL PACCY110, PACCY120, PACCY130, PACCY140, PACCY160 * Applies to all 120 and 240V products for global configurations...
-
Page 2: Quick Setup
Position on level surface Fill tank or attach water hose* *Maximum water pressure 50 psi/345 kPa Your Portacool portable evaporative cooler is meant to For setup, Kuul Comfort evaporative media should be used in an open-air environment, such as a patio. -
Page 3: Operation Warnings
Refer to the warranty, the plug, not the power cord. troubleshooting or FAQ sections of this owner’s manual, • Operation near open flames or sparks is not recommended. call Portacool, LLC Customer Service at (936) 598-5651 or (800) 695-2942, or email support@portacool.com. - Page 4 OVERVIEW Control panel ™ PORTACOOL CYCLONE ™ Adjustable Kuul Comfort louvers evaporative media Water adjustment valve Liquid Level Indicator Serial plate Power cord Fill door with GFCI Recessed casters Hose connection Drain located in back...
- Page 5 OVERVIEW ™ PORTACOOL CYCLONE ™ Kuul Comfort Adjustable evaporative media louvers Control panel Liquid Level Indicator Serial plate Water Power cord adjustment with GFCI valve Fill door Casters Hose connection Drain located in back...
- Page 6 OVERVIEW ™ PORTACOOL CYCLONE ™ Kuul Comfort Adjustable evaporative media louvers Serial plate Control panel Water adjustment valve Power cord Liquid Level with GFCI Indicator Fill door Casters Hose connection Drain located in back...
- Page 7 OVERVIEW ™ PORTACOOL CYCLONE ™ Kuul Comfort evaporative media Serial plate Control panel Water adjustment valve Power cord with GFCI Liquid Level Hose connection Indicator Casters Drain located on back...
- Page 8 OVERVIEW ™ PORTACOOL CYCLONE ™ Kuul Comfort Serial plate evaporative media Control panel Water adjustment valve Power cord Liquid Level with GFCI Indicator Casters Hose connection Drain located on bottom...
- Page 9 The GFCI on these models will automatically reset when the evaporative cooler is plugged into an electrical outlet. If the GFCI is tripped and a simple “reset” will not work, please contact the Portacool Customer Service at (936) 598-5651 or...
- Page 10 In order to restart the pump and reset the light, water must be added to the tank of the evaporative cooler. Portacool Cyclone portable evaporative coolers must be operated on a level surface. If the product is not completely level, there ™...
-
Page 11: Starting The Pump And Adjusting The Water Flow
When turning the evaporative cooler off at the end of the day or week, the pump should be turned off about 15 minutes before the fan to allow the Kuul evaporative media to dry. STARTING THE PORTACOOL EVAPORATIVE COOLER Start the fan by turning the fan switch to either the high or low position. Before starting your evaporative cooler, make sure any... -
Page 12: Daily Maintenance
WEEKLY MAINTENANCE Your Portacool portable evaporative cooler should be shut down, disconnected from power and the tank should be drained once a week by removing the drain cap. Once the tank is drained and the power disconnected, the Kuul evaporative media may be removed to allow cleaning of the tank, where dust may collect over time. -
Page 13: Troubleshoot
TROUBLESHOOT Turn off all power to your evaporative cooler before attempting to troubleshoot any of the following symptoms. For problems not listed, please contact Customer Service. REMEDY SYMPTOM POSSIBLE CAUSES 1. Check power Evaporative cooler fails to 1. No electricity to the evaporative cooler A. - Page 14 TROUBLESHOOT REMEDY POSSIBLE CAUSES SYMPTOM 1. Drain, flush and clean tank 1. Stale or stagnant water in tank Musty or unpleasant odor 2. Replace Kuul evaporative media 2. Kuul evaporative media is mildewed or clogged 1. Make sure Kuul evaporative media 1.
-
Page 15: Warranty
(the “Equipment”) that are found, upon examination by factory-authorized personnel, to be defective in material or workmanship. Notwithstanding anything herein to the contrary, Portacool warrants its Cyclone 110, 120, 130, 140 and 160 housings for the full lifetime of the product to the extent they are found, upon examination by factory-authorized personnel, to be defective in material or workmanship. - Page 16 PORTACOOL PROTECT Portacool, LLC is proud to provide world-class service and support. Portacool Protect™ brings together our commitment to service and support in the form of best-in-class warranties, service programs, technical support and live customer service to provide our customers with an ownership experience that is second to none.
- Page 17 Q. What assembly is required? Q. How often should my Kuul Comfort evaporative media be A. None. Portacool Cyclone evaporative coolers are ready to use right replaced? out of the box. A. Depending on the quality of maintenance and frequency of use, Kuul Comfort evaporative media typically last up to five years.
- Page 18 EVAPORATIVE MEDIA Step 1 Be sure to unplug your Portacool portable evaporative cooler before doing any maintenance. When present, lock the casters to keep your evaporative cooler from moving while you are working. Remove the flap and Kuul Comfort evaporative media from the evaporative cooler.
- Page 19 PAC-CVR-C2 PAC-CVR-02 PARCVRCY1400 PARCVRC16000 COVER HARD WATER PARPACHWTB00 PARPACHWTB00 PARPACHWTB00 PARPACHWTB00 PARPACHWTB00 TREATMENT Additional parts can be found at www.portacoolparts.com For products sold outside North America, contact Customer Service at 800-695-2942 or email support@portacool.com for item numbers and product availability.
-
Page 20: Customer Service Contact
Le manuel est disponible en d’autres langues. Pour télécharger une copie numérique, se il vous plaît visitez www.portacool.com. VISIT PORTACOOL.COM OR CALL 1-936-598-5651 FOR MORE INFORMATION Portacool, LLC • Manufacturer of Portacool™ portable evaporative coolers and Kuul evaporative media ® MANR0018 711 FM 2468 •...
