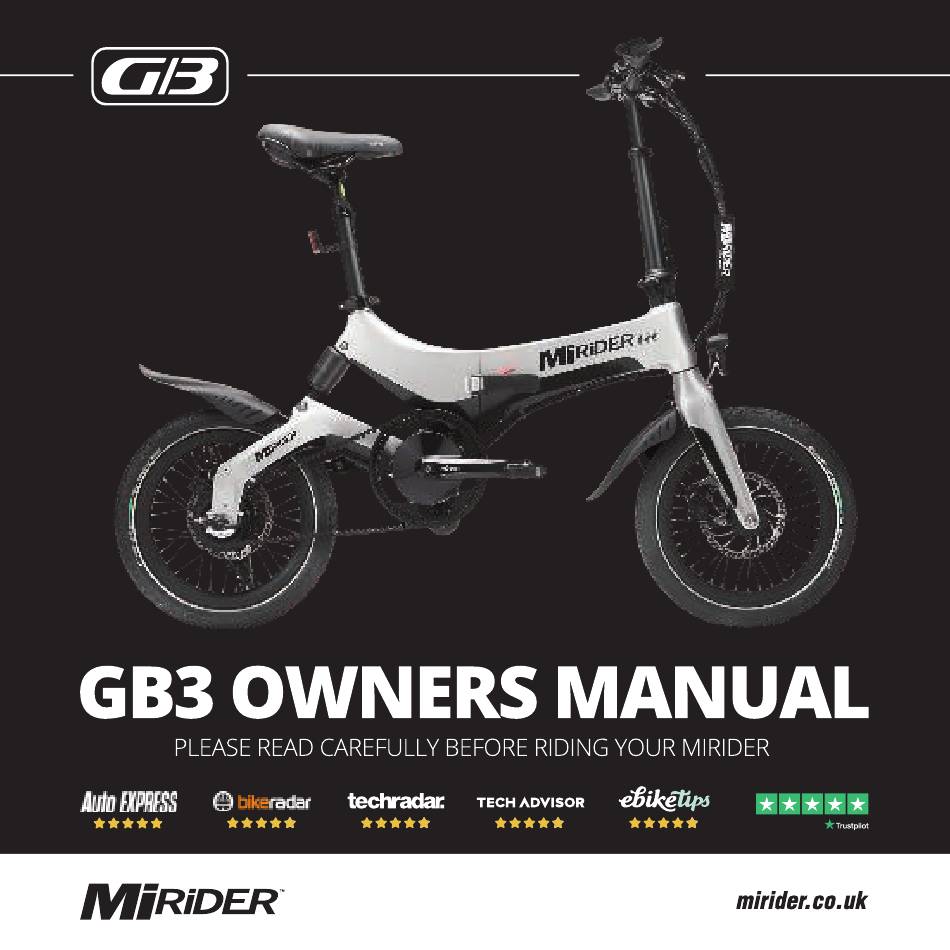

miRider GB3 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GB3 and is the answer not in the manual?

Questions and answers

Related Manuals for miRider GB3

Summary of Contents for miRider GB3

  • Page 2 About us Welcome to the fold Thank you for choosing to join the growing MiRiDER community. We’re sure riding your MiRiDER One GB3 will create some amazing new experiences and memories to last a lifetime. Our detailed User Manual follows. Please take some time to read the Manual, as it will ensure you enjoy your brand new bike and its many features.
  • Page 3 Disklok House www.mirider.co.uk Preston Road Chorley support@mirider.co.uk Lancashire +44 (0)1257 228242 PR7 5HH...
  • Page 4 Disklok House, Preston Rd, Charnock Richard, Chorley PR7 5HH Declares under our sole responsibility that the product: Mirider GB3 Foldable E-Bike Conforms with the provisions of the following directives: EMC Directive 2014/30/EU Machinery 2006/42/EC The following Harmonized standard were applied:...

  • Page 5: Table Of Contents

    Page 24 - 25 Troubleshooting Page 26 Warranty Page 27 Please read this manual carefully before using the MiRiDER One GB3 eBike. This manual will help you understand the bike’s: Basic operational process Safety principles Product structure, its care & use...

  • Page 6: Bike Structure And Functions

    Bike structure and functions...

  • Page 7: Packing List

    1 x Seat saddle Before you start 1 x Charger 1 x Battery 2 x Mudguards 1 x Bell Before use We recommend that you always wear a helmet and highly visible, protective clothing when riding the MiRiDER One GB3.

  • Page 8: Instructions For Use

    Instructions for use Folding the eBike frame To secure the eBike frame On the lever opposite the folding hinge, Connect the 2 halves of the frame together press down the red lever then pull the main and secure by pushing the black locking fir black handle outwards to release the frame locking mechanism.
  • Page 9 Securing the stem Secure the hinge by pressing the black Lift the handlebar stem upwards until snap shut. position. 6. Adjust saddle height Push the seat into the frame to the Adjust the seat post height by lifting the minimum insertion mark on the seat post lever on the post and adjusting the height then secure the seat post by closing the to the required level.
  • Page 10 7. Folding the pedals To unfold, simply lift the pedal until it clicks To fold, pull the inner chrome latch into position outwards to release the pedal 8. Power On Press & hold the power button, on the LCD Connect the charger into the port if the screen for 3 seconds to turn the power on.

  • Page 12: Lcd Display Instructions

    LCD display instructions...
  • Page 14 ON/OFF Push and hold the power ON/OFF button to activate the display. The same button is to be pushed and Assistance Level Use the up and down arrows in the display to increase or decrease the power assist level. When pushing the bike, if you push and hold the down arrow button on the display, walk assist mode will be engaged providing 6km/h (4mph) power assist to aid pushing the bike.
  • Page 15 Headlight Holding the up arrow on the display turns on the display bikes headlight. Push and hold the Thumb Throttle Assist a walk assist or start assist without pedalling to a legal maximum of 4mph (this will reduce depending on rider weight and incline). Secondly, it will provide a full power boost (equivalent to level 5) when the rider is pedalling - ideal for a...
  • Page 16 Removing/Installing the battery Fold the eBike frame and unlock the battery lock using the battery locking key. Pull out the battery from inside the frame, To re-insert the battery, push the battery using the handle, as shown in the image into position and lock it in place using the above.
  • Page 17 Charging the battery Option 1: Open the rubber charging port Option 2: Fold the bike, remove the battery grommet and insert the charging cable. and plug the charger into the port. Then plug Then plug the charger into the mains and the charger into the mains and switch on.

  • Page 18: Servicing

    Gearbox service Your MiRiDER One GB3’s gearbox needs to have a regular service as it is made up of multiple moving parts which require adequate lubrication. Due to the...
  • Page 19 How to carry and manoeuvre the bike Ensure the battery is charged between temperatures of 10-45°C Always store the battery in a safe and dry place r fir Do not modify, damage or try to disassemble the battery Always charge the battery with the supplied charger Please read the ‘charging the battery’...

  • Page 20: Maintenance And Storage

    Maintenance and storage Ensure the bike is stored in a secure, cool and dry place when not in use. Do not use any chemical solvents to clean the bike, as this may corrode the surface. fi bike retailer and the below checks are followed. Suggested regular maintenance checks: Parts Maintenance checks...

  • Page 21: Safety Advice

    Safety advice Avoid riding the eBike close to all vehicles Throttle is limited to a maximum speed of 6 km/h for safety in public areas Always ride with both hands holding the Do not ride the bike on stairs or escalators handlebar...

  • Page 22: Warnings And Precautions

    Warnings and precautions or the speed assistance is set to “0” on the LCD display. Ensure all protective clothing including a helmet is worn to prevent any injuries In public areas, it is advised to dismount from the bike The throttle will deactivate if the rider stops pedalling or the brakes are applied All safety checks must be undertaken before use Do not ride in icy conditions The bike is not a toy and not suitable for children under the age of 14...
  • Page 23 Battery Warnings: Do NOT expose to temperatures above 60°C (140°F) Do NOT disassemble or modify the battery fir fi Puncturing or tampering with the battery can cause the battery to fail and risk serious injury or death Store in a cool, dry place. Never store or charge in extreme temperatures fir Keep out of reach of children and pets...
  • Page 24 Unfolded size 1340x550x1100mm Folded size 770x430x640mm Seat height (from ground) 760-920mm adjustable Wheelbase 950mm Mechanical Net weight 17.6kg Brake system Front and rear disc brake Tyre dimension 16x1.95 inch Frame material Diecast magnesium frame Suspension Rear spring shock absorber Battery installment Built-in/anti-theft lock/detachable Battery capacity 36V/7.0Ah...
  • Page 25 Maximum motor speed 25km/h (15.5 mph) Maximum range 72km (45 miles) - dependant on rider weight and terrain Maximum rider weight 120kg (265 lbs) Climbing angle >15° Function parameters Lighting Integrated front LED light Throttle Assistance Throttle max: 6 km/h (4mph) without pedalling or 25km/h (15.5mph) max with constant pedalling and throttle boost...

  • Page 26: Troubleshooting

    Troubleshooting Problem Reason Solution No power assistance No power 1. Check if the battery is installed when the eBike is correctly turned on 2. Charge the battery eBike is not providing 1. Battery is not fully 1. Ensure the battery is fully enough miles charged charged...

  • Page 27: Warranty

    If the bike is not registered within this time, the warranty will be limited to 1 year. Please visit www.mirider.co.uk/warranty MiRiDER eBikes come with a 2 year warranty covering the frame, motor, gearbox and battery. The 2 year warranty also covers electronic components such as electronic cabling, LCD display, all non-wearing mechanical parts.
  • Page 28 This product was imported by MiRiDER LTD, Disklok House, Preston Road, Charnock Richard, Chorley, Lancashire, PR7 5HH. Assembled in the UK. RoHS COMPLIANT EPAC according to EN15194 EMC Directive 2014/30/EU Machinery 2006/42/EC...
