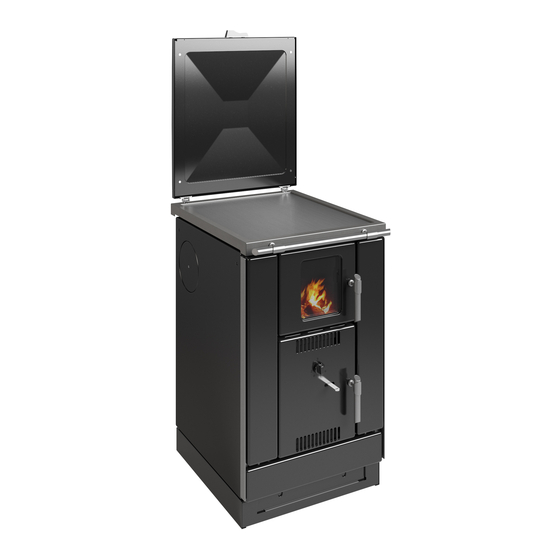

Central heating cooker
Hide thumbs Also See for K158:
Table of Contents

Advertisement

Quick Links

GB
Central Heating Cooker
K158 K158F
Operating and
Instruction Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K158 and is the answer not in the manual?

Questions and answers

Related Manuals for Wamsler K158

Summary of Contents for Wamsler K158

  • Page 1 Central Heating Cooker K158 K158F Operating and Instruction Manual...
  • Page 2 • Functional safety by using proven technology, tested to the most stringent German and European Standards (EN 12815), • Long life by being built robustly. The K158/K158F central heating stove means you now own a modern compact unit to: • cook, bake, roast, •...

  • Page 3: Table Of Contents

    Contents Foreword ....................... 33 Contents ........................ 36 Assembly ....................... 37 Legend ........................38 The most important at a glace ................38 1. OPERATION ..................... 39 1.1 Commissioning an integral stove..............39 1.2 Important operating parts ................39 1.3 Lighting ....................... 40 1.4 Heating and slow burning ................

  • Page 4: Assembly

    Assembly K158 K158F...

  • Page 5: Legend

    Legend Top lid Ash pan Ash door Fuel trolley Fire door Fire hole cover Hotplate Crank for raising and lowering grate Grate door Riddle bar Secondary air slide Temperature control Fire door grip Stove accessories Ash pan Operation instruction Lid lever Crank Smoke hole cover pair complete Cleaning brush...

  • Page 6: Operation

    IMPORTANT Side air vents on chimneys with more than one stove connected not allowed. Clean stove, flue and chimney regularly. Do not lay any flue pipes horizontally for more than 1.25 m. Do not reduce flue pipe diameter from pipe connection to the chimney. Window and doors of the base frame should not be completely airtight because of the need for combustion air intake.

  • Page 7: Lighting

    Riddle arrangement The grate can be riddled in any height position using the riddle bar (10). If it hot then the lid lever can be used (Fig. 8). Please do not tip any glowing ashes in the dust bin or outside. Temperature controller (12) The Temperature control regulates the rate of burning through the air intake and thereby the stove's heat level.

  • Page 8: Heating And Slow Burning

    1.4 Heating and slow burning Heating with wood - Secondary air slide (11) "OPEN" Lay long and thick pieces of wood in at least two charges on thick embers. Split firewood improves the burning quality and controllability. Hardwood is more productive than soft- wood.

  • Page 9: Care And Cleaning

    Cooking in summer Grate position "UP" temperature control to "3" secondary air slide "OPEN" At the warmer times of the year, the stove will mostly only be used to cook, and prepare domestic hot water. Here the "UP" grate position is used, to ensure that the room where the stove is and the hot water tank do not become excessively overheated.

  • Page 10: Causes Of Faults

    1.8 Causes of faults Your stove is built to the latest technical know- how. Nevertheless faults may occur, which are caused by the chimney, fuel or the heating and plumbing. Fault Check / Rectify Stove smokes - open the ash door briefly. High outside temperatures - in summer cause poor chimney draught.

  • Page 11: Arrangement

    2. ARRANGEMENT For installation and for connection of flue, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 4705, EN 13384, DIN 18160, EN 1856-2, EN 12828, EN 12831, EN 12897 and EN 15287.

  • Page 12: The Heating Stove For Open And Closed Systems

    The heating stove for open and closed systems Heating stove model K157/K158 is only allowed to operate with heat sink in closed sys- tems according to EN 12828, EN 12831 and EN 12897. If it is connected to an open sys- tem then our guarantee for corrosion damage becomes invalid.
  • Page 13 Right Wrong min. 50 cm Chimney diameter reduced due to flue being inserted too far into chimney Blockage due to exhaust gases interfering with min. 30 cm each other Air leak due to ppen doors on stove which is not in use Air leak from open pipe connection Air leak from...

  • Page 14: Installation

    3. INSTALLATION 3.1 Installing the top lid The top lid hinge spigots are inserted evenly into the plug holes in the stove frame (at back, left and right) (Fig. 23 & 24). 3.2 Flue gas connector direction The pipe connector is factory installed at the back of the stove. If a flue gas connection is required on the side, left or right, the following steps should be taken: Remove the pipe connector at the back by undoing the three fixing bolts M4 (Fig.

  • Page 15: Instructions

    4. INSTRUCTIONS 4.1 General information The following directions and instructions concern questions of fundamental importance. It is further presupposed that the installer of a heating plant has the necessary technical and craftsman's basic knowledge for the task. This is naturally also the assumption where the stove is being incorporated as an integrated stove into an existing system.
  • Page 16 Where there is a lower distribution ventilating valve it must be provided on each radiator. The radiators should not be inclined towards the ventilation. As radiators are usually at the same level on the floor where the stove is installed, these radiators should all be connected to a circulating pump as matter of course.

  • Page 17: Integrating In An Existing Unit

    Before commissioning installation water must be fed through the filling and emptying cock until water flows out of the overflow on the open expansion vessel. In the case of a closed system, an over pressure of 1 to 1.5 bar must be created. In any case attention has to be paid to slowly filling the system and the exhausting air through the integrated ventilation valve before the above mentioned static pressure is reached or before the expansion ves- sel overflows.

  • Page 18: Technical Data

    5. TECHNICAL DATA Fuel Low smoke, trouble-free operation of the stove and a supply of heat at the nominal level with a chimney draught of 12 Pa are only guaranteed when you use the following fuels and no others. Only use natural, dry chopped firewood with a remaining humidity of max. 20% and lignite (brown coal) briquettes.

  • Page 19: Heating Output Data

    5.2 Heating output data The following table shows burning time, water output and heat emission (to the room where it is installed) of your stove under normal conditions according to EN 12815 con- cerning the charge quantities and control setting for the fuel materials coal and wood. Output table according to EN 12815:2005 Heat Total...

  • Page 20: Dimensions, Output Values, Flue Gas Values

    5.3 Dimensions, output values, flue gas values Model K158 / K158F Registration CE, 15a B-VG, VKF External dimensions W x H x D (without lid) Height with top lids open See dimensional drawing 5.4 Height with top lids closed Fire box W x D...

  • Page 21: Dimensional Drawings

    5.4 Dimensional drawings Model K158 / K158F K158F K158 flow 1” return heat exchanger connection for tAs 3/8“ We reserve the right to make changes which relate to technical advances and / or to an improvement in quality. We accept no liability for printing errors and changes which occur after printing.

  • Page 22: Brief Instructions

    5.5 Brief instructions Heating up Heating Cooking Secondary air slider CLOSED OPEN OPEN K158 Secondary air slider K158F Temperature control According to need Setting 3 Setting 3 See 5.2 6. FIGURES Pic. 4 Pic. 5 Pic. 6...
  • Page 23 Pic. 7 Pic. 8 Pic. 10 Pic. 9 Pic. 11...
  • Page 24 ____________________________________________________________ Pic. 12 Pic.13 Pic. 14 Pic. 15 Pic. 16 Pic. 17...
  • Page 25 ____________________________________________________________ Pic. 18 Pic. 19 Pic. 20...
  • Page 26 Pic. 23 Pic. 24 Pic. 25 Pic. 26 Pic. 27 Pic. 28...
  • Page 27 ____________________________________________________________ Pic. 29 Pic. 30 Pic. 31 Pic. 32 Pic. 33 Pic. 34 Pic. 36 Pic. 35...

  • Page 28: Safety Measures

    7. SAFETY MEASURES The stoves are tested to EN 12815 (see identification plate). For installation and for flue gas connections, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 4705, EN 13384, DIN 18896, DIN 18160, EN 1856-2 and EN 15287.
  • Page 29 18. If repairs or replacements are necessary, please contact your supplier with the nec- essary article numbers and serial numbers in good time. Only original WAMSLER re- placement parts may be used. 19. Work such as installation, setup, commissioning and services, as well as repairs, must only be carried out by qualified personnel (heating system or space heating technicians).
  • Page 30 Wamsler Haus- und Küchentechnik GmbH • Adalperostr. 86 • • D-85737 Ismaning • Tel. +49 (0)89 / 320 84-0 • Fax +49 (0)89 / 320 84-238 info@wamsler.eu • www.wamsler.eu © Wamsler Haus- und Küchentechnik GmbH, 85737 Ismaning. Alle Rechte und Änderungen vorbehalten.
