For questions on assembly or for general inquiries, you may contact us in the following ways:
Call a Recruiter Today! 734-365-7000
Flexible schedule
*based on number of completed installations
Call Us First!
DO NOT RETURN TO STORE.
Call customer service: 1-877-743-7400
AVOID THE WAIT!
visit us online at
help.backyardproducts.com
Submit a help request
Answers to frequently asked questions
Live chat with an agent
Did you enjoy building your shed?
JOIN OUR TEAM
AND MAKE UP TO $1,500/WEEK*
No selling,
just building
Bonus incentives
available
16191

Advertisement

loading
Need help?

Need help?

Do you have a question about the RIDGEPOINTE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yardline RIDGEPOINTE

Summary of Contents for Yardline RIDGEPOINTE

  • Page 1 16191 Call Us First! DO NOT RETURN TO STORE. For questions on assembly or for general inquiries, you may contact us in the following ways: Call customer service: 1-877-743-7400 AVOID THE WAIT! visit us online at help.backyardproducts.com Submit a help request Answers to frequently asked questions Live chat with an agent Did you enjoy building your shed?
  • Page 2 (This page intentionally left blank.)

  • Page 3: Assembly Manual

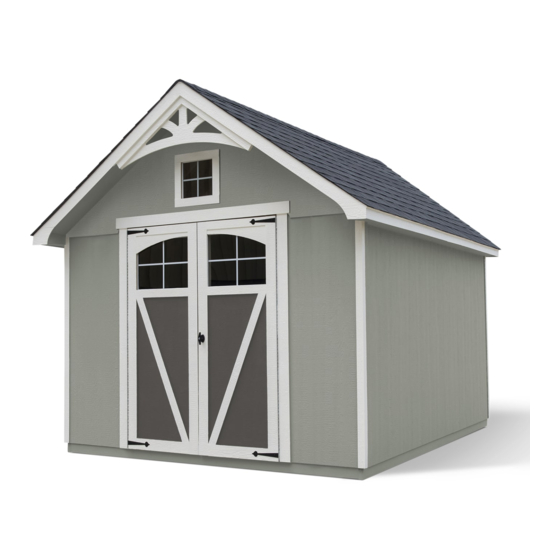

    16191 02-02-2022 ASSEMBLY MANUAL A Backyard Products Company RIDGEPOINTE 10' x 12' (304,8 x 358,1 cm) ACTUAL FLOOR SIZE IS 120" x 141" (304,8 x 358,1 cm) KEEP THIS MANUAL FOR FUTURE REFERENCE IM PORTA NT ! READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
  • Page 4 TOOLS Required Optional Phillips Tool Belt/ Utility Knife Screwdriver Nail Pouch Shingle Blades Drill / Driver 1/8" Drill Bit Tin Snips 1/4" Drill Bit Caulk Gun (for drip edge) 5/16" Drill Bit 1/2" Drill Bit Chalk Line #2 Philips Drive Bit Paint Tools Hammer Nail Gun...

  • Page 5: Parts List

    PARTS IDENTIFICATION AND SIZES Part identification WOOD SIZE CONVERSION CHART letters are stamped on some parts. Treated lumber is stamped: Nominal Board Size Actual Size 2 x 4....1-1/2" x 3-1/2" (3,8 x 8,9 cm) 1 x 4....3/4" x 3-1/2" (1,9 x 8,9 cm) 2 x 3....1-1/2"...
  • Page 6 PARTS LIST continued... 2 x 3 x 10-1/2" (5,1 x 7,6 x 26,7 cm) 7/16 x 8 x 12-1/2" (1,1 x 20,3 x 31,8 cm) 1 x 4 x 23-7/8 (2,5 x 10,2 x 60,6 cm) 1 x 4 x 96" (2,5 x 10,2 x 243,2 cm) 2 x 4 x 94-1/2"...
  • Page 7 WALL PANELS & DOORS 3/8 x 11-7/8 x 72" (1 x 30,2 x 182,9 cm) 3/8 x 23-7/8 x 72" (1 x 60,6 x 182,9 cm) 3/8 x 19-7/8 x 72" (1 x 50,5 x 182,9 cm) 3/8 x 48 x 72" (1 x 121,9 x 182,9 cm) 3/8 x 46-1/8 x 72"...

  • Page 8: Optional Materials

    ADDITIONAL MATERIALS FOUNDATION OR FLOOR MATERIALS • This shed kit includes a complete wood floor system. • This shed kit does not include ANY leveling materials. • See the FLOOR LEVELING section on page 12 for recommended methods and suggested materials to properly level your foor, as this will vary depending on your specific site.
  • Page 9 CONCRETE FOUNDATION If you choose to install your kit on a concrete slab refer to the diagram below. Treated Sill Plate Caulk between sill plate and concrete. 3-1/2" (8,9 cm) 4" (10,2 cm) Building Size Actual Size 10' x 12' (304,8 x 365,8 cm) 120"...

  • Page 10: Parts Required

    FLOOR FRAME PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 42" (5 x 10 x 106,7 cm) TREATED NOTE: Look for Stamp. 2 x 4 x 48" (5 x 10 x 122 cm) TREATED 2 x 4 x 72" (5 x 10 x 183 cm) TREATED You will build two foor sections.
  • Page 11 FLOOR FRAME PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 48" (5 x 10 x 122 cm) TREATED NOTE: Look for Stamp. 2 x 4 x 72" (5 x 10 x 183 cm) TREATED 2 x 4 x 93" (5 x 10 x 236,2 cm) TREATED Arrange parts as shown on flat surface.
  • Page 12 FLOOR FRAME PARTS REQUIRED: 3" (7,6 cm) Fasten fl oor sections together, as shown. Secure with 3" nails. Flush Flush Stagger nail 141" pattern. (358,1 cm) 120" (305 cm) FINISH Your fl oor frame is now assembled. Proceed to level and square frame.
  • Page 13 LEVEL AND SQUARE FLOOR FRAME Before attaching f oor decking, it is important to level and square the f oor frame. A level and square f oor frame is required to correctly construct your shed. BEGIN See page 12 for the preferred fl oor leveling method. Use level and check the frame is level before applying fl oor panels.
  • Page 14 FLOOR LEVELING OPTIONS There are multiple ways to level your foor frame. Our recommended leveling method is shown below. Leveling materials are not included in this kit. PREFERRED METHOD - 4x4 TREATED RUNNERS • 3" Screw angled into 4x4. Measurements to •...
  • Page 15 FLOOR PANELS PARTS REQUIRED: 2" (5,1 cm) 5/8 x 48 x 96" 3/4" GAUGE (1,6 x 121,9 x 243,8 cm) BLOCK Ensure your wall frame is square by installing one panel and squaring frame. Install panels with rough side up (painted grid lines). BEGIN Install (1) 48 x 96"...
  • Page 16 FLOOR PANELS PARTS REQUIRED: x199 5/8 x 23-7/8 x 45" 2" (5,1 cm) (1,6 x 60,6 x 114,3 cm) 5/8 x 48 x 96" 5/8 x 23-7/8 x 96" 3/4" GAUGE 5/8 x 45 x 96" BLOCK (1,6 x 121,9 x 243,8 cm) (1,6 x 114,3 x 243,8 cm) (1,6 x 60,6 x 243,8 cm) Continue installing the remaining panels in the following order:...
  • Page 17 IMPORTANT! Ensure the foor frame is level after installing foor panels. Re-level foor if necessary. • The foor should be used as a level work surface for wall construction. HINT: • Organize your wall sections during sub-assembly to avoid over-handling of the walls. Left Wall Back Wall Front Wall...
  • Page 18 WALL PANEL INSTALLATION HINTS & EXAMPLES PARTS REQUIRED: 2" (5,1 cm) 3/4" GAUGE BLOCK 3/8 x 48 x 72" (1 x 121,9 x 182,9 cm) Ensure your wall is square by installing one panel and squaring frame. Install all wall panels with the primed side facing up. BEGIN 2 Nails Place a 48"...
  • Page 19 EAVE WALL FRAME PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 46-1/2" (5,1 x 10,2 x 118,1 cm) 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm) 2 x 4 x 94-1/2" (5,1 x 10,2 x 240 cm) You will build 2 identical eave walls.
  • Page 20 EAVE WALL PANELS PARTS REQUIRED: x135 2" (5,1 cm) 3/4" GAUGE BLOCK 46-1/8 x 72" 48 x 72" (117,2 x 213,4 cm) (121,9 x 213,4 cm) Install panels with the primed side facing up. Flush 3/4" Install (1) 48 x 72" panel flush BEGIN HERE (1,9 cm) to the top plate.
  • Page 21 BACK GABLE WALL FRAME PARTS REQUIRED: 2 x 4 x 20-3/8" (5,1 x 10,2 x 51,8 cm) 3" (7,6 cm) 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm) 2 x 4 x 92-5/8" (5,1 x 10,2 x 235,3 cm) BEGIN Arrange parts on edge on floor.
  • Page 22 BACK GABLE WALL PANELS PARTS REQUIRED: x122 2" (5,1 cm) 3/8 x 48 x 72" 3/4" GAUGE 3/8 x 23-7/8 x 72" BLOCK (1 x 121,9 x 182,9 cm) (1 x 60,6 x 182,9 cm) Install panels with the primed side facing up. Flush 3/4"...
  • Page 23 FRONT GABLE WALL PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 27-3/4" (5,1 x 10,2 x 70,5 cm) 2 x 4 x 28-1/2" (5,1 x 10,2 x 72,4 cm) 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm) 2 x 4 x 85-1/4"...
  • Page 24 FRONT GABLE WALL PANELS PARTS REQUIRED: 3" (7,6 cm) 69" Door Stiffener (175,3 cm) 2" (5,1 cm) 3/4" GAUGE 3/8 x 19-7/8 x 72" 3/8 x 11-7/8 x 72" BLOCK (1 x 50,5 x 182,9 cm) (1 x 30,2 x 182,9 cm) Install panels with the primed side facing up.
  • Page 25 FRONT GABLE WALL PARTS REQUIRED: 3" (7,6 cm) 2 x 3 x 72" (5,1 x 7,6 x 182,9 cm) Center OY on top plate flush to edge of panel (Fig. A, Fig. B). Secure with (5) 3" screws spaced evenly and screwed-in at an angle. Flush Fig.
  • Page 26 RIGHT SIDE WALL INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 69" Door Stiffener (175,3 cm) 3" (7,6 cm) 2" (5,1 cm) BEGIN Center right side wall on the 144" (365,8 cm) fl oor dimension. Use OO as a temporary brace. Secure with (2) 3" screws. 3"...

  • Page 27: Back Wall Installation

    BACK WALL INSTALLATION PARTS REQUIRED 2" (5,1 cm) 3" (7,6 cm) 2" (5,1 cm) 3" (7,6 cm) 1-1/2" (3,8 cm) Fig. B BEGIN Place back wall centered on fl oor. Secure wall with 2" screw into side wall 2" (5,1 cm) bottom plate (Fig.
  • Page 28 LEFT SIDE WALL INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 2" (5,1 cm) 3" (7,6 cm) 1-1/2" (3,8 cm) 2" (5,1 cm) Fig. B BEGIN 2" (5,1 cm) Screw Center left side wall on the fl oor. Secure wall with (1) 2" screw through left wall panel into back wall bottom and top plates (Fig.
  • Page 29 FRONT WALL INSTALLATION PARTS REQUIRED 2" (5,1 cm) 3" (7,6 cm) 2" (5,1 cm) 1-1/2" (3,8 cm) 3" (7,6 cm) 2" (5,1 cm) Screw Fig. B BEGIN Center the front wall between side walls. Secure wall with 2" screws into top and bottom plates (Fig.
  • Page 30 RAFTERS PARTS REQUIRED: x132 2" (5,1 cm) 3" (7,6 cm) OSB OR WOOD GRAIN 7-1/4 x 18-1/4" (18,4 x 46,4 cm) 2 x 4 x 5-1/2" (5,1 x 10,2 x 14 cm) TEMPORARY SUPPORT 2 x 4 x 83-13/16" (5,1 x 10,2 x 212,9 cm) You will build SIX assemblies.
  • Page 31 RAFTER INSTALL PARTS REQUIRED: 3" (7,6 cm) (2) GUSSET (1) GUSSET Preassembled Preassembled ¸ BEGIN Secure rafters to top plate with (2) 3" screws in each rafter (Fig. A, Fig. B). Note single-gusset rafter at back wall with gusset facing inward. MEASUREMENTS ARE TO CENTER OF RAFTER Measure to edge of end rafter...
  • Page 32 LOFT SUPPORTS PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm) BEGIN Center TP on back wall top plate, flush to outside of panels (Fig. A). Flush to outside of panel. C E N T E R Flush C E N...
  • Page 33 LOFT JOIST ASSEMBLY PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 24" (5,1 x 10,2 x 61 cm) 2 x 4 x 94-1/2" (5,1 x 10,2 x 240 cm) Arrange parts as shown on a flat surface. Hold parts UN and RL flush and aligned. Assemble joist with 3"...
  • Page 34 LOFT SUPPORTS PARTS REQUIRED: 3" (7,6 cm) Preassembled Loft Joist Rest loft joist across side wall top plates. Center loft joist and measure 3/4" in from edges of top plate (Fig. A). Secure loft joist to top plates and to rafter with (4) 3" screws. Fig.
  • Page 35 LOFT PANEL PARTS REQUIRED: 2" (5,1 cm) 7/16 x 23-7/8 x 96" (1,1 x 60,6 x 243,8 cm) BEGIN Place 7/16" x 23-7/8" x 96" loft panel onto loft supports centered from side-to-side and fl ush to the back edge of loft support (Fig. A). Secure panel with (18) 2"...
  • Page 36 BACK GABLE UNIT PARTS REQUIRED: 1-1/2" (3,8 cm) 2 x 4 x 34" (5,1 x 10,2 x 86,4 cm) Assemble gable unit panels with the primed side facing up. BEGIN 1-3/4" (4,4 cm) Install center gable panel on (2) FOB. Secure with 1-1/2"...
  • Page 37 BACK GABLE UNIT INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 2" (5,1 cm) Back Gable Unit BEGIN Measure 1-1/2" down from top plate and mark at each side, as shown. Set gable unit on loft deck. Hold gable unit secure with (1) 2" nail on each side. BE SURE GABLE IS CENTERED ON WALL BEFORE NAILING.
  • Page 38 FRONT GABLE UNIT PARTS REQUIRED: 1-1/2" (3,8 cm) 2 x 4 x 40-15/16" (5,1 x 10,2 x 86,4 cm) Assemble gable unit panels with the primed side facing up. BEGIN 1-3/4" (4,4 cm) Install center gable panel on (2) EHV. 1-1/2"...
  • Page 39 FRONT GABLE LADDERS PARTS REQUIRED: 3" (7,6 cm) 2 x 6 x 3-5/8" (5,1 x 15,2 x 9,2 cm) 2 x 3 x 83-13/16" (5,1 x 7,6 x 212,9 cm) 2 x 6 x 5-1/4" (5,1 x 15,2 x 13,3 cm) 2 x 3 x 5-1/2"...
  • Page 40 FRONT GABLE UNIT PARTS REQUIRED: 3" (7,6 cm) 1-5/8" (4,1 cm) Front Gable Unit Ladder Assemblies 3/16" (4,8 mm) Drill Bit To complete gable ladder, connect (2) ladder assemblies together with (4) 3" screws (Fig. F). Flush HINT: Fig. F Pre drill to avoid 3"...
  • Page 41 FRONT GABLE UNIT INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 2" (5,1 cm) Front Gable Unit w/ Ladder BEGIN Measure 1-1/2" down from top plate and mark at each side, as shown. Set gable unit on front wall doubler. Hold gable unit secure with (1) 2" nail on each side. BE SURE GABLE IS CENTERED ON WALL BEFORE NAILING.
  • Page 42 FRONT GABLE SOFFIT BLOCKS 3" (7,6 cm) 3/16" (4,8 mm) Drill Bit BEGIN Ensure the L-blocks are in the correct position using a level, as shown. Secure L-blocks with (2) 3" screws, as shown (Fig. A, Fig. B). HINT: 3" Pre drill to avoid (7,6 cm) 3"...
  • Page 43 GABLE PEAK FILLERS PARTS REQUIRED: 1-1/2" (3,8 cm) 3" (7,6 cm) 2 x 3 x 10-5/8" (5,1 x 7,6 x 27 cm) WOOD GRAIN 3/16" (4,8 mm) Drill Bit 2 x 3 x 20-1/2" (5,1 x 7,6 x 52,1 cm) 7-1/4 x 18-1/4"...
  • Page 44 FRONT OVERHANG SOFFIT PARTS REQUIRED: 1-1/4" (3,2 cm) 3/8 x 8-1/2 x 76-5/8" (1 x 21,6 x 194,6 cm) Install all trim and soffi t parts with the primed side facing outward. BEGIN Install 76-5/8" overhang boards fl ush at peak, primed side down and fl ush to wall panels (Fig A). Secure panels to frame with 1-1/4"...
  • Page 45 SOFFIT NAILERS PARTS REQUIRED: 3/8" x 2" x 5" (1 x 5,1 x 12,7 cm) 2" (5,1 cm) 5/8" x 1-1/2" x 46-3/4" (1,6 x 3,8 x 118,7 cm) OSB 1-1/4" (3,2 cm) 5/8" x 1-1/2" x 96" (1,6 x 3,8 x 243,2 cm) OSB BEGIN At the back of the shed, install (2) 2"...
  • Page 46 EAVE SOFFIT PARTS REQUIRED: 1-1/4" (3,2 cm) 3/8 x 5-3/16 x 71-1/4" (1 x 13,2 x 181 cm) 3/16" (4,8 mm) Drill Bit 3/8 x 5-3/16 x 79-3/4" (1 x 13,2 x 202,6 cm) Install all trim and soffi t parts with the primed side facing outward. BEGIN Place 79-3/4"...
  • Page 47 ROOF PANELS PARTS REQUIRED: 2" (5,1 cm) 7/16 x 48 x 96" 3/4" GAUGE (1,1 x 121,9 x 243,2 cm) BLOCK Install all roof panels with the rough side facing up (painted grid lines side). Roof panels may cause serious injury until securely fastened. Flush at peak BEGIN Fig.
  • Page 48 ROOF PANELS PARTS REQUIRED: 2" (5,1 cm) 7/16 x 23-1/4 x 48" 7/16 x 31-3/4 x 48" (1,1 x 59,1 x 121,9 cm) (1,1 x 80,6 x 121,9 cm) 24" 24" 24" 24" Fig. C (61 cm) (61 cm) (61 cm) (61 cm) Maintain spacing between the center of the rafters.
  • Page 49 ROOF PANELS PARTS REQUIRED: x249 2" (5,1 cm) 7/16 x 23-1/4 x 36-5/16" (1,1 x 59,1 x 92,2 cm) 7/16 x 31,3/4 x 36-5/16" 7/16 x 36-5/16 x 96" (1,1 x 80,6 x 92,2 cm) (1,1 x 92,2 x 243,2 cm) Install (3) roof panels fl ush to installed panels and fl ush to each edge, as shown.
  • Page 50 GABLE FASCIA PARTS REQUIRED: 19/32 x 5-1/2 x 6-5/8" (1,5 x 14 x 16,8 cm) 2" (5,1 cm) TEMPORARY 19/32 x 5-1/2 x 6-5/8" (1,5 x 14 x 16,8 cm) 3/8 x 8 x 12-1/2" (1 x 20,3 x 31,8 cm) 19/32 x 3-1/2 x 81-1/4"...
  • Page 51 FRONT OVERHANG TRIM PARTS REQUIRED: 1-1/4" (3,2 cm) 3/8 x 4-1/8 x 8-1/2" (1,0 x 10,5 x 21,6 cm) 3/16" (4,8 mm) Drill Bit Install all trim and soffi t parts with the primed side facing outward. BEGIN Install (2) 4-1/8" x 8-1/2" corner soffi ts primed side out and fl ush to trim (Fig. A). Secure corner soffi ts to gable overhang frame with (4) 1-1/4"...
  • Page 52 EAVE FASCIA PARTS REQUIRED: 2" (5,1 cm) 3/8 x 3-1/8" x 71-1/4" (1 x 7,9 x 181 cm) 3/8 x 3-1/8" x 79-3/4" (1 x 7,9 x 202,6 cm) ¸ BEGIN Install fascia boards fl ush to rafters and fl ush to roof panels (Fig. A). Secure with (2) 2"...
  • Page 53 COLLAR TIES PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 72" (5,1 x 10,2 x 182,9 cm) BEGIN Position and level TM on 4th and 6th rafters from back wall. Flush TM to roof panels. HINT: For best appearance install TM on rafter facing away from door. Secure with 3"...
  • Page 54 SHELVING PARTS REQUIRED: 2" (5,1 cm) 2 x 3 x10-1/8" (5,1 x 7,6 x 25,7 cm) 3/8 x 8 x 12-1/2" (1 x 20,3 x 31,8 cm) BEGIN Secure brackets to part AE with (3) 2" nails. Assemble (12) shelf supports as shown; (10) right-side, (2) left-side. Flush 2"...
  • Page 55 SHELVING PARTS REQUIRED: 2" (5,1 cm) 7/16 x 11-1/2 x 96" (1,1 x 29,2 x 243,8 cm) 7/16 x 11-1/2 x 23-7/8" (1,1 x 29,2 x 60,6 cm) 2 x 4 x 23-7/8" (5,1 x 10,2 x 60,6 cm) 1 x 4 x 96" (2,5 x 10,2 x 243,8 cm) Install shelf panels centered over shelf supports.
  • Page 56 DOOR TRANSOM WINDOWS PARTS REQUIRED: 3/4" (1,9 cm) Left Door Right Door We recommend painting the doors and door edges edges before installing windows. ¸ BEGIN Fig. A BACK SIDE OF RIGHT DOOR Working fi rst with the right door, measure 1-1/8" from bottom of opening at two locations (Fig.
  • Page 57 DOOR TRANSOM WINDOWS PARTS REQUIRED: Fig. A For the left door, measure 1-1/8" from bottom of opening BACK SIDE OF LEFT DOOR at two locations (Fig. A). Mark each measurement. Scribe a line across door panel. CENTER CENTER Mark center of window opening at top and bottom. 1-1/8"...
  • Page 58 DOORS PARTS REQUIRED: 3" (7,6 cm) 69" Door Stiffener (175,3 cm) 1-1/4" (3,2 cm) 1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) Left Door Right Door BEGIN Arrange parts as shown on flat surface. 3/8" offset is to top. Look for red (right) and green (left) on hinge board.
  • Page 59 DOORS PARTS REQUIRED: 3" (7,6 cm) Temporary Support 69" Door Stiffener (175,3 cm) Install OO fl ush under panels. Secure to fl oor frame with (2) 3" screws (Fig. A). Fig. A Flush 3" (7,6 cm) Screws against wall panels Temporary Support Set the doors on OO.
  • Page 60 DOOR TRIM PARTS REQUIRED: 2" (5,1 cm) 19/32 x 3-1/2 x 65-1/4" (2,5 x 8,9 x 165,7 cm) 19/32 x 2-1/2 x 20-5/8" (2,5 x 6,3 x 52,4 cm) 3/4" (1,9 cm) 56" Metal Threshold 19/32 x 2-1/2 x 49-3/16" (1,5 x 6,3 x 124,9 cm) 3/4"...
  • Page 61 DOOR STIFFENERS PARTS REQUIRED: 2" (5,1 cm) 69" Door Stiffener (175,3 cm) BEGIN Center OO vertically on the left door in the door opening (Fig. A). Offset OO 3/4" (1,9 cm) along the edge of door (Fig. B). Secure with (7) 2" screws through outside trim into OO (Fig. B) Center OO vertically on the right door in the door opening (Fig.

  • Page 62: Door Hardware

    DOOR HARDWARE PARTS REQUIRED: 1" (2,5 cm) 5/16" (0,8 cm) Drill Bit BEGIN Place spring bolt onto OO in open position with bolt end 3/8" down from frame. Bolt is open when loop is contacting base (Fig A). Mark and pre-drill holes for screws. Install bolt with screws supplied and drill 5/16"...
  • Page 63 DOOR HARDWARE / DECORATIVE HINGES PARTS REQUIRED: 1-1/2" (3,8 cm) 3/8" (10,9 cm) Drill Bit 3/4" (1,9 cm) 1/4" (0,6 cm) Drill Bit BEGIN Measure and mark location of hole on outside of right door as shown (Fig. A). Pre-drill hole with 1/4" drill. Re-drill hole with 3/8 "...
  • Page 64 GABLE WINDOW PARTS REQUIRED: 1-1/4" (3,2 cm) Gable Window BEGIN Apply high quality exterior-grade caulk behind frame near edge before installing to seal window. From outside of shed, center window in opening and level. Secure with (2) screws into 2x4 gable connectors, as shown. 1-1/4"...
  • Page 65 GABLE WINDOW PARTS REQUIRED: 2" (5,1 cm) 19/32 x 3-1/2 x 11-1/2" (1,5 x 8,9 x 29,2 cm) 19/32 x 3-1/2 x 18-1/2" (1,5 x 8,9 x 47 cm) Center window trim on window. NOTE: There will be a slight reveal inside window. Secure window trim with (10) 2"...
  • Page 66 GABLE WINDOW PARTS REQUIRED: 3/4" (1,9 cm) Working inside, secure trim with (10) 3/4" screws. Snip protruding fi nish nails. Do not screw into window f ange. 3/4" (1,9 cm) Screws INSIDE OF SHED FINISH Your gable window is now installed.
  • Page 67 CORNER TRIM PARTS REQUIRED: 2" (5,1 cm) 3/8 x 1-3/4 x 70-1/2" (1 x 4,4 x 179,1 cm) 3/8 x 1-3/4 x 67-9/16" (1 x 4,4 x 171,6 cm) ¸ BEGIN Install front and back 70-1/2" corner trim fl ush under gable panel and fl ush along the face of side wall panel. Secure with 2"...
  • Page 68 GABLE DECORATIVE TRIM PARTS REQUIRED: Gable Cleat 19/32 x 2-1/2 x 23" (2,5 x 6,3 x 58,4 cm) 3/4" (1,9 cm) 19/32 x 2-1/2 x 27-9/16" (1,5 x 6,3 x 70 cm) 2" (5,1 cm) 19/32 x 2-1/2 x 27-9/16" (1,5 x 6,3 x 70 cm) BEGIN Position gable decoration primed side facing down on top of BZL and BZR fl ush along edges and at peak.
  • Page 69 HOOK & EYE PARTS REQUIRED: Hook ¸ BEGIN Install hooks into endcap and into L-block behind (Fig. A). Swing door open to locate eye. Fig. A Hook FINISH Your hook and eyes are installed.
  • Page 70 VENTS PARTS REQUIRED: 1/2" (1,3 cm) 8 x 16" (20,3 x 35,6 cm) You can place your side wall vent on either side of shed ¸ BEGIN Locate and mark for vents in side walls. Install (1) vent near the fl oor and (1) vent near the eave. Caulk behind vent fl anges.
  • Page 71 PAINT & CAULK - NOT INCLUDED - • Use acrylic latex caulk that is paintable. Caulk at all horizontal and vertical seams, between the trim and walls, and all around the door trim. • Use a high quality exterior acrylic latex paint. When painting your building, there are a few key areas that can be easily overlooked that must be painted: •...
  • Page 72 SHINGLES - NOT INCLUDED - • Follow directions provided by manufacturer and these instructions. Familiarize yourself with a 3-Tab Shingle. Notch Notch SHINGLE NAIL PATTERN 1/2" 1" Sealing Strip 1" (1,3 cm) (2,5 cm) (2,5 cm) Half A Rain Slot Full Rain Slot NAILS NEVER DRIVE FASTENERS INTO OR ABOVE SEALING STRIPS.
  • Page 73 SHINGLES continued... Beginning at front of shed, install first row of shingles with notch at 1" past roof edge or flush with drip edge. Roof Deck FRONT OF BACK OF SHED SHED 1" (2,5 cm) Flush with starter row. Notch - or - Drip Edge Flush with starter row.
  • Page 74 SHINGLES continued... Continue installing rows of shingles to the peak. At the peak make sure there is a maximum of 5" or less to the rain slot, as shown below. If shingles overlap at ridge cut to peak with a utility knife. 5"...
  • Page 75 SHINGLES - RIDGE CAP • You will finish off the top of the roof with a ridge cap made from shingles. BEGIN Cut shingles into THREE pieces. Hint: Use cut-off pieces first. 2" 2" (5 cm) (5 cm 2" 2" 2"...
  • Page 76 SHINGLES - RIDGE CAP continued... Continue installing ridge cap to back of roof. Make sure there is 4" between the shingle-color and edge of shingles. 4" (10 cm) Trim cap off f ush to shingles When you have 4" minimum of shingle color cut one piece to cap your roof. Cut at top of rain slot.
  • Page 77 HINGE (FAUX) w/ SCREWS (4 HING 15246 Threshold THRESHOLD 7/8" X 1-1/2" X 55-7/8 15419 PURCHASED COMPONENTS Hardware Kit H/K RIDGEPOINTE 8 X 12 15948 Gable Window WINDOW 12" SQUARE 15273 2" 6d Nails NAIL 6D 2" BOX HDG BOX 15105 3"...
  • Page 78 LIMITED CONDITIONAL WARRANTY* Backyard Storage Solutions, LLC warrants the following: Every product is warranted from defects in workmanship and manufacturing for 1 year. All accessories, hardware and metal components are warranted for 2 years. All Oriented Strand Board (OSB) is warranted for 2 years Siding and Trim is warranted for 15 years.
