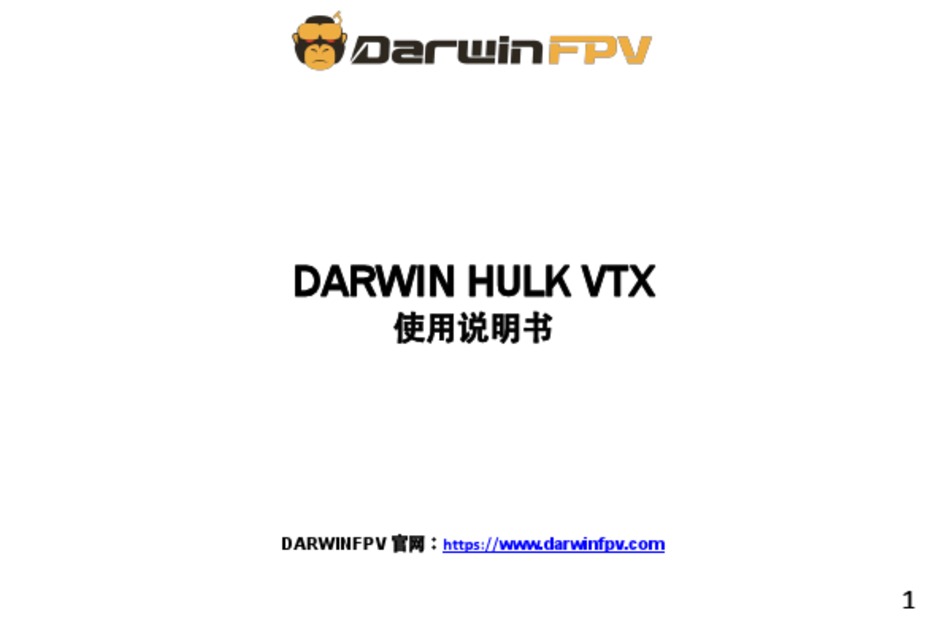

- Page 1 DARWIN HULK VTX 使用说明书 DARWINFPV 官网：https://www.darwinfpv.com...
- Page 2 感谢您购买 DarwinFPV 的产品。操纵穿越机需要一定专业性技能，会有一定危险性，请 您务必确保周边环境和自身安全的情况下谨慎使用。我们对于产品使用不当、未注意安全或因 违法飞行导致的损失或伤害不承担任何责任。祝您有一个愉快的飞行体验！...
- Page 3 基 本 配 置 参 数 及 尺 寸 Model HULK VTX Frequency 5.8G 40CH (Adjustable) Transmitting 25mW/200mW/400mW/600mW DC 7-30V Power 15.9g （ Antenna Not Included ） Power supply Weight 30.5mm x 30.5mm Center distance of 37.6mm x 37.6mm x 6.6mm mounting holes size...
- Page 4 功率指示 频 率 及 功 率 控 制 方 法 SOFTSERIAL1 信号线上； ①将图传 RX 白线连接到飞控空余的 UART 端口的 TX 信号线或 通过 Betaflight 调整图传频率和功率 选择端口选项卡，开启所连接端口的 TBS(SmartAudio) 功能设置后保存； ② 上图以 SOFTSERIAL1 为例；TX 信号线同理，根据相应端口选择 TBS(SmartAudio)功能即可...
- Page 5 进入 VTX 调参界面后选择所需频率和功率，完成后“save”保存退出即可。 ③ 注 意 事 项 ①海水具有很强的腐蚀性，此 VTX 不推荐用于海水环境，一旦落入海水中请立即使用淡水清洗。 ②上电前请确认天线是否已安装到位，否则可能烧毁设备。 ③请严格按照官方给出的电压范围供电，否则可能烧毁设备。 ④天线尽量使用驻波和增益较好的天线，以获得更远的传输距离。 ⑤图传工作时表面会产生高温，请勿直接触摸，以免烫伤。 ⑥运输及使用过程中请注意预防静电。 更多有关 AIO 的固件、CLI、配置文件、最新的说明书等及更详细的配置教程，请到 DARWINFPV 官网支持下获取。 DARWINFPV 官网：https://www.darwinfpv.com...
- Page 6 售 后 服 务 关于退款：直接从 DarwinFPV 购买得新/未开封/未使用的产品可在 20 天内无条件退回，客户需自己 承担退回运费，如退回产品丢失或已打开使用、损坏或缺少配件，则不会无条件退款。 关于保修：如果 DarwinFPV 确定相关问题不在保修范围内，我们将提供折扣服务用于订购新产品的 更换，不支持免费换新。 不支持保修的情况： 1. 飞行员的失误导致的炸机或火灾损坏； 2. 因焊接失误、安装和使用不当而造成的损坏； 3. 擅自修改电路以及电池和充电器不匹配造成的损坏； 4. 长期使用导致的组件老化或碰撞造成的损坏； 5. 由于进海水导致的飞机故障。 联 系 方 式 support@darwinfpv.com @DarwinFPV sales@darwinfpv.com...
- Page 7 DARWIN HULK VTX USER MANUAL DarwinFPV official website: https://www.darwinfpv.com...
- Page 8 Thank you for purchasing DarwinFPV products. Flying an fpv racing drone requires certain professional skills and will be dangerous. Please use it with caution while ensuring the surrounding environment and your own safety. We are not responsible for any loss or injury caused by improper use of the product, failure to pay attention to safety or illegal flying.
-
Page 9: Specifications
SPECIFICATIONS Model HULK VTX Frequency 5.8G 40CH 25mW/200mW/400mW/600mW Transmitting Power (Adjustable) Power Supply DC 7-30V Weight 15.9g (Antenna Not Included) Mounting Hole 30.5mm x 30.5mm Dimensions L37.6mm x W37.6mm x H6.6mm... - Page 10 VTX POWER HOW TO SET FREQUENCY & POWER Adjust the video transmission frequency and power through Betaflight: ① Connect the white line of the VTX’s RX port to the AIO’s VTX’s SA port /TX port of the AIO's UART1/UART2 port; ②...
- Page 11 "save" to save and exit. ③ After entering the Bataflight VTX tab, select the desired frequency and power, then click CAUTIONS ① Seawater is highly corrosive, please clean with fresh water and dry immediately once drone touched seawater. ② Please confirm whether the VTX antenna is installed before powering on, otherwise the device may be burnt. ③...
-
Page 12: After Sales Service
AFTER-SALES SERVICE About Refunds: new/unopened/unused products purchased directly from DarwinFPV can be returned unconditionally within 20 workdays, and the customer is responsible for the return shipping cost. If the returned product is lost or opened for use, damaged or missing accessories, it will not be unconditional Refund. About Warranty: If DarwinFPV determines that the problem is not covered by warranty, we will provide a discount for ordering new product replacement, and do not support free replacement.
