Ryobi RLM36BL Original Instructions Manual

Cordless lawnmower
Hide thumbs
Table of Contents

Advertisement

Quick Links

ORIGINAL INSTRUCTIONS
Cordless
Lawnmower
RLM36BL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RLM36BL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ryobi RLM36BL

Summary of Contents for Ryobi RLM36BL

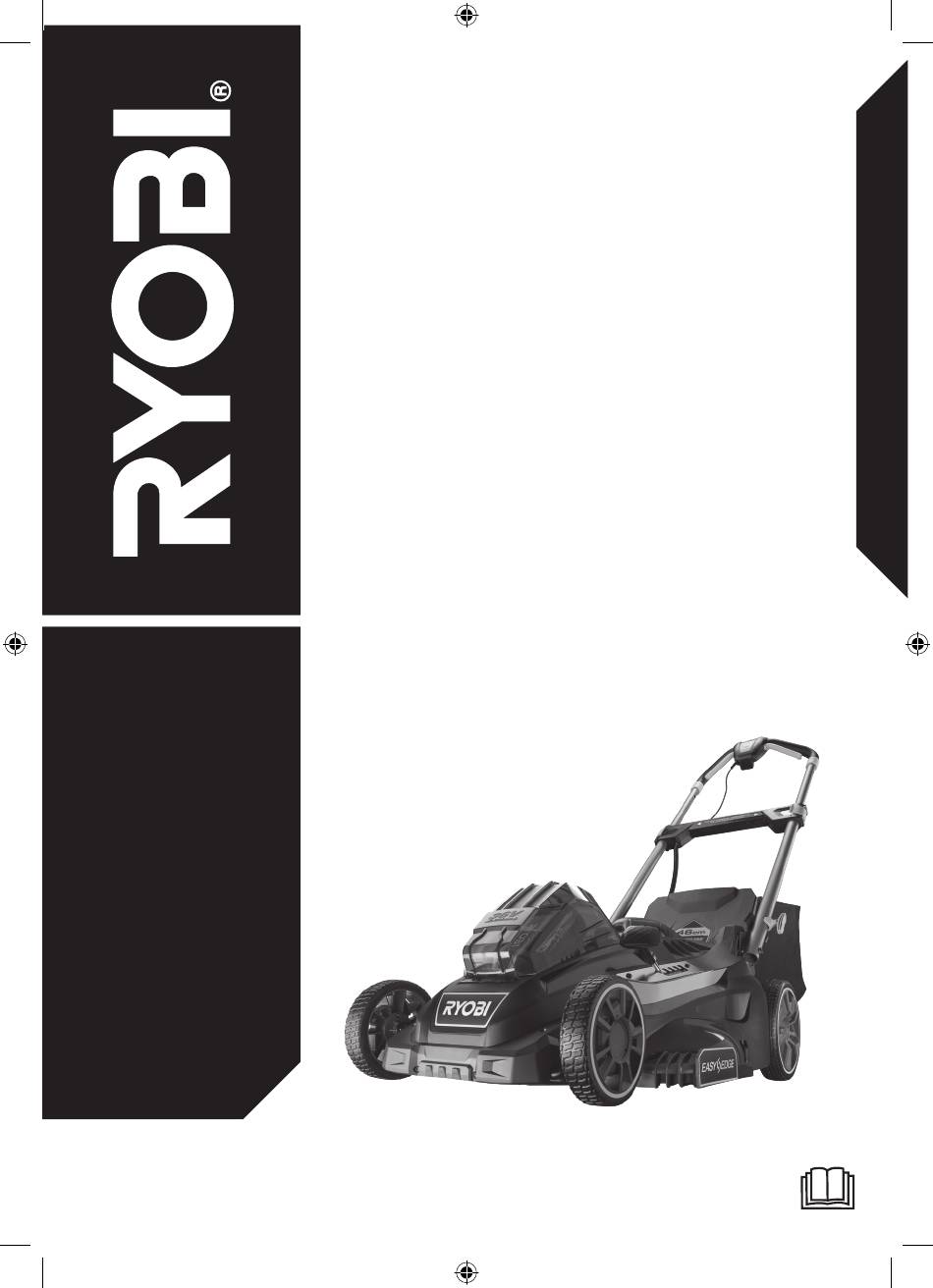

  • Page 1 ORIGINAL INSTRUCTIONS Cordless Lawnmower RLM36BL...
  • Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.

  • Page 3: Intended Use

    Safety, performance, and dependability have ■ Stay alert, watch what you are doing, been given top priority in the design of your and use common sense when operating cordless lawnmower. the product. Do not operate the product while tired, ill, or under the influence of INTENDED USE drugs, alcohol, or medication.
  • Page 4 ■ Do not use the product when there is a risk Shorting battery pack terminals of lightning. together may cause sparks, burns, fire, or explosion. ■ Keep in mind that the operator or user is responsible for accidents or hazards ■...

  • Page 5: Product Features

    ■ The product must be started with the user ■ Turn off the product, and remove the behind the handlebars in the operator isolator key and the battery pack. Make safety zone. Never start the product if: sure that all moving parts have come to a complete stop: ●...

  • Page 6: General Mowing Tips

    actuated, release the on/off lever. Press the TRANSPORTATION AND STORAGE start button, and squeeze the on/off lever to ■ Turn off the product, and remove the restart the product. isolator key and the battery pack. Make The battery pack has overheat protection. sure that all moving parts have come to a Excessive temperatures cause the battery complete stop.

  • Page 7: Clearing Blockages

    ■ Always wear heavy-duty gloves when WARNING checking or clearing a blockage. Servicing requires extreme care ■ The blades are sharp, and the blockage knowledge and should be performed only itself could be a sharp object. by a qualified service technician. Have the ■...

  • Page 8: What's In The Box

    ■ Charger x 1 requirements. ■ Grass catcher x 1 ■ Operator’s manual x 1 NOTE: For RLM36BL, the battery pack and Guaranteed sound power level charger are sold separately. SYMBOLS ON THE PRODUCT Read understand instructions before operating the product. Follow all warnings and safety instructions.

  • Page 9: Symbols In This Manual

    SYMBOLS IN THIS MANUAL Parts accessories sold separately. Note Warning The following signal words and meanings are intended to explain the levels of risk associated with this product: DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
  • Page 10 WHAT’S IN THE BOX RLM36X46BL *Kit includes battery and charger. 15 mm...
  • Page 11 WHAT’S IN THE BOX RLM36BL 15 mm...

  • Page 12: Know Your Product

    KNOW YOUR PRODUCT Start button Isolator key On/Off lever 10. Front wheel Handle lock 11. Battery door Grass catcher 12. Cutting height adjustment lever Quick-release fastener 13. Motor control cable Rear wheel 14. Telescopic handle Charger Battery pack...
  • Page 13 GETTING STARTED GETTING STARTED GETTING STARTED GETTING STARTED Wear full eye protection, ear protection, non-slip heavy- Align the handle with the brackets using the quick-release Open the handle locks. Pull up the handle until fully extended. NOTE: Make sure that the handle is fully extended Close the handle locks to secure the handle.
  • Page 15 OVERVIEW Operating the product Installing the grass catcher p.15 p.16 Cutting with EASY EDGE Adjusting the cutting height p.17 p.17...
  • Page 16 OVERVIEW Replacing the blade Cleaning the product p.18 p.20 Emptying the grass catcher Storing the product p.21 p.22...

  • Page 17: Operation

    OPERATION OPERATING THE PRODUCT WARNING: Avoid holes, ruts, bumps, rocks, property stakes, or other hidden objects. WARNING: Do not operate the product on inclines greater than 15°. Mow across the face of slopes, never up and down. 1. Open the battery door. Insert the battery pack into the product.

  • Page 18: Installing The Grass Catcher

    OPERATION INSTALLING THE GRASS CATCHER 1. Raise the rear door. 2. Install the catcher, ensuring that it is secure and aligned with the two hooks. Lower the rear door.
  • Page 19 OPERATION CUTTING WITH EASY EDGE EASY EDGE allows the product to easily cut the grass along walls or the edge of your lawn. NOTE: EASY EDGE pulls grass towards the blade when the product is running along a wall or the edge of your lawn. ADJUSTING THE CUTTING HEIGHT To adjust the deck height, pull the cutting height adjustment lever towards the wheel,...

  • Page 20: Replacing The Blade

    OPERATION REPLACING THE BLADE NOTE: For a quality finish to your lawn, replace the mowing blade every season. 1. Open the battery door. Remove the isolator key and battery pack. Close the battery door. 2. Tilt the product on its side so that the blade is vertical.
  • Page 21 OPERATION 5. Remove and properly dispose of the blade. 6. Install the new blade. 7. Hand-tighten the nut by making 10 turns, then use a 15 mm spanner to tighten the nut to the appropriate torque. Blade bolt tightening torque (35~40 Nm)

  • Page 22: Maintenance

    MAINTENANCE CLEANING THE PRODUCT After each use, clean the product with a soft, dry cloth, or cleaning brush. WARNING: Do not use water to clean the product.

  • Page 23: Emptying The Grass Catcher

    MAINTENANCE EMPTYING THE GRASS CATCHER 1. Raise the rear door, and remove the grass catcher. 2. Empty the grass clippings into a bin.

  • Page 24: Storing The Product

    STORAGE STORING THE PRODUCT 1. Open the battery door. Remove the isolator key and battery pack. Close the battery door. 2. Raise the rear door, and remove the grass catcher. 3. Loosen the handle locking screws, and fold down the upper handle. 4.
  • Page 25 STORAGE 5. Fold down the lower handle. 6. Fold the grass catcher, and place the grass catcher on top of the product. 7. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and de-icing salts.

  • Page 26: Product Specifications

    VIBRATION LEVEL The declared vibration value has been Cordless lawnmower measured with a standard test method and Model RLM36BL / may be used to compare one tool with another. RLM36X46BL The declared vibration value may be used in a Rated voltage 36 V d.c.
  • Page 28 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149, Melbourne, Australia Techtronic Industries N.Z. Limited RYOBI is a trade mark of Ryobi Limited, Unit C, 70 Business Parade South, and is used under license. Highbrook, Auckland 2013, New Zealand ©...

This manual is also suitable for:

Rlm36x46bl
