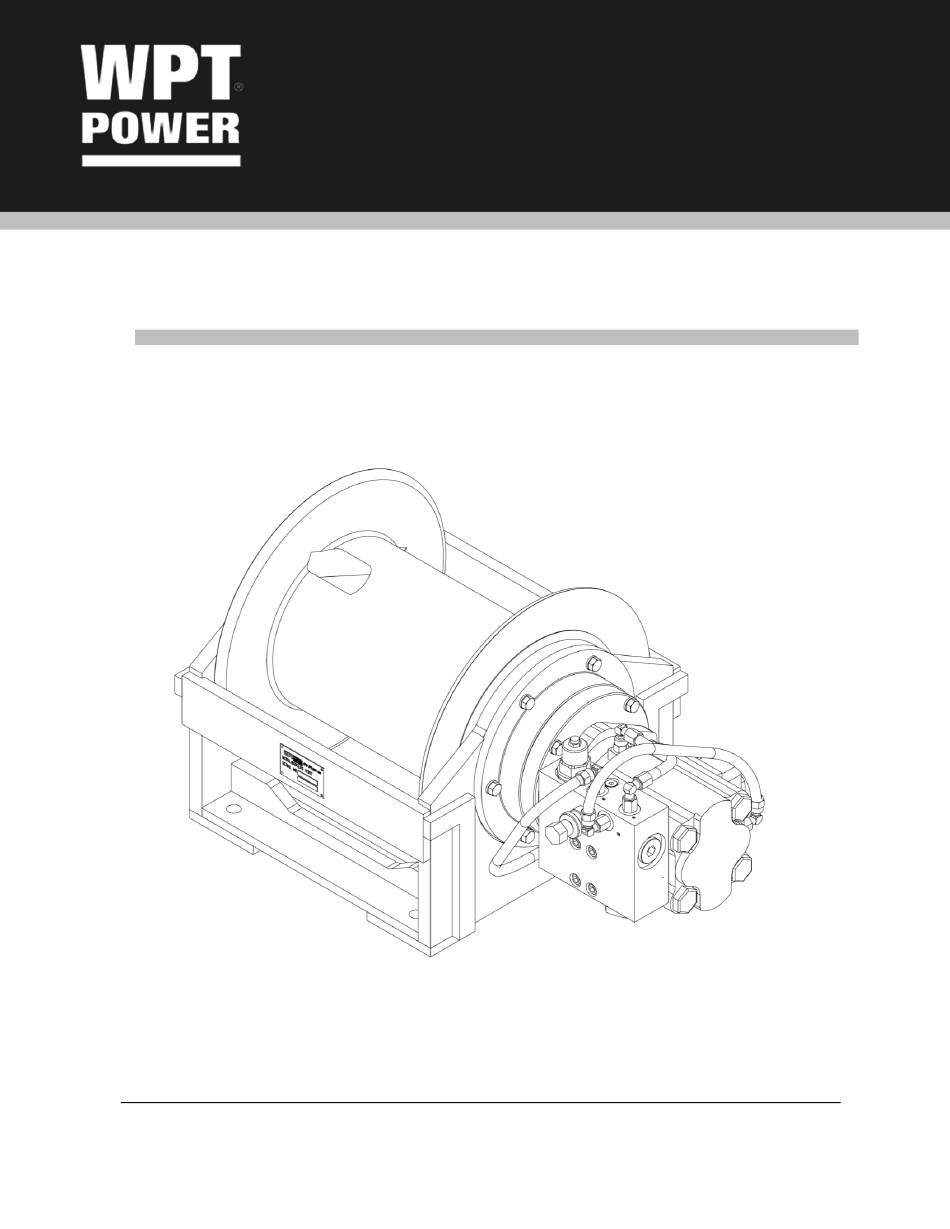

- Page 1 PLANETARY HYDRAULIC HOIST 8,000 Lbs. Installation & Maintenance Manual WHP36S-HS Model Because of continued product improvement, we reserve the right to make changes without notice.
-
Page 2: Table Of Contents
Contents 1.0 SAFETY RECOMMENDATIOINS… ......................3 2.0 SPECIFICATIONS AND PERFERMANCE ....................6 3.0 HOIST INSTALLATION .......................... 7 4.0 INSTALLATION DIMENSIONS ......................12 5.0 HOIST OPERATION ..........................13 6.0 EMERGENCY LOWERING PROCEDURES FOR HOISTS WITH GEAR MOTORS… ........14 7.0 THE BRAKES CONTRAST TEST ......................16 8.0 MAINTENANCE .......................... -
Page 3: Safety Recommendatioins
1.0 SAFETY RECOMMENDATIONS Safety for operators and ground personnel is of prime concern. Always take the necessary precautions to ensure safety to others as well as yourself. To ensure safety, the prime mover and hoist must be operated with care and concern by the operator for the equipment and a thorough knowledge of the machine’s performance capabilities. - Page 4 five (5) wraps of wire rope on the drum. 16. Never attempt to clean, oil or perform any maintenance on a machine with the engine or prime mover running, unless instructed to do so in this manual. 17. Never operate hoist controls unless you are properly positioned at the operator’s station, and you are sure personnel are clear of the work area.
- Page 5 33. Avoid shock loads. This type of load imposes a strain on the hoist many times the actual weight of the load and can cause failure of the cable or of the hoist. 34. Hoist operators must be trained in the proper, safe operation of the hoist. WWH-IW-010_B Page 5 of 24...
-
Page 6: Specifications And Perfermance
SPECIFICATIONS AND PERFORMANCES Rated Line Pull 8,000 Lbs Recommended Wire Rope Diameter 1/2 in Drum Storage Capacity 443 ft Hydraulic System Rated Flow 65 GPM Hydraulic System Motor Pressure 2420 PSI Max. Permissible Number of Layers Ratio 34.2 1 5/16”-12UN Oil In Port 1 5/16”-12UN Oil Out Port... -
Page 7: Hoist Installation
HOIST INSTALLATION 1. The hoist should be mounted with the centerline of the drum in a horizontal position. The mounting plane of the base may be rotated in any position around this centerline. 2. Because of the design of the mounting base, the direction of line pull should only be as shown in the above illustration. - Page 8 4. The vent plug must always be located above the horizontal centerline. If the hoist is mounted on a pivoting surface, be sure vent plug remains above the centerline in all positions. If necessary, reposition bearing support and vent plug as follows: A.
- Page 9 WARNING! DO NOT use a control valve with any detents or latching mechanism that would hold the control valve in an actuated or running position when the operator releases the control handle. Use of the wrong type of control valve could lead to unintentional operation of the hoist, which could result in property damage, personal injury, or death.
- Page 10 Under continuous operating conditions the temperature of the oil at any point in the system must not exceed 180°F (82°C). Optimum oil temperature is generally considered to be 120-140°F (49-60°C). In general terms; for continuous operation at ambient temperatures between 50 and 110°F (10 to 43°C) use ISO 46;...
- Page 11 WIRE AND BRAIDED ROPE INSTALLATION ANCHORING WIRE ROPE Take the free end of the wire rope and insert it through the small opening of the anchor pocket. Loop the wire rope and push the free end about half of the way back through the pocket. Install the wedge, then pull the slack out of the wire rope.
-
Page 12: Installation Dimensions
INSTALLATION DIMENSIONS WWH-IW-010_B Page 12 of 24... -
Page 13: Hoist Operation
HOIST OPERATION The hydraulic motor drives the sun gear of the primary planetary gear set through the splined inner race of the overrunning brake clutch. When driven by the sun gear, the primary planet gears walk around the ring gear in the drum and drive the primary planet carrier. -
Page 14: Emergency Lowering Procedures For Hoists With Gear Motors
EMERGENCY LOWERING PROCEDURES FOR HOISTS WITH GEAR MOTORS The following procedure releases the multiple disc brake while leaving the brake valve closed. Since gear type motors are not zero leakage devices, internal motor leakage permits the load to slowly rotate the motor although its outlet is blocked by the closed brake valve. - Page 15 motor port or manifold. The standpipe is installed with the long, open end pointing up in a vertical position to reservoir. While the load is being lowered, hydraulic oil MUST be added to the standpipe as necessary to prevent to the motor from running dry.
-
Page 16: The Brakes Contrast Test
7.0 THE BRAKES CONTRAST TEST ALL WPT planetary hoists have a spring applied, hydraulically released, multiple disc brake inside the hoist housing. This brake holds a suspended load when the directional control valve is in neutral, or when the directional control valve is in neutral, or when hydraulic power is lost. -
Page 17: Maintenance
8.0 MAINTENANCE Adhering to the following maintenance schedule will keep your hoist in top condition and performing as it should with a minimum of repair. 【MONTHLY】 1. Check the oil level and maintain it to the oil level to round hex head socket plug. 2. -
Page 18: Troubleshooting
9.0 TROUBLESHOOTING ！ WARNING If a hoist ever exhibits any sign of erratic operation, or load control difficulties (i.e. load creeping or chattering) appropriate troubleshooting tests and repairs should be performed immediately. Continued operation in this manner may result in property damage, serious personal injury or death. - Page 19 Oil analysis may indicate contamination has worn motor shaft and seal. Thoroughly flush entire hydraulic system and install new filters and oil. Install new motor seal. Replace the motor. 1. Excessive system back pressure acting on the brake release port. Increase the hydraulic system pressure.
- Page 20 C. Same as D2. Same remedies as D2 D. Hydraulic pump not operating Same as remedies for Trouble D2. efficiently. Prime mover low on horsepower or R.P.M. Tune/adjust prime mover. Check suction line for damage. If pump is belt driven, belts are slipping. Replace/tighten belts.
-
Page 21: Assembly Drawing
10.0 ASSEMBLY DRAWING WWH-IW-010_B Page 21 of 24... -
Page 22: Bill Of Material
11.0 BILL OF MATERIAL Item Part # Description 0001 WWX2602667 1.0000 0002 WWX2602666 1.0000 ADAPTER,STRAIGHT,WITH "O" RING 0003 WEX2601915 1.0000 HOSE ASSY,465LG 0004 WWX2622203 2.0000 TUBE FITTING 0005 H04-33-002 1.0000 NAMEPLATE ENGLISH 0006 WEX2005908 4.0000 SHCS 0007 WEX2004007 1.0000 VALVE,MOTOR CONTROL 0008 WW0N568219 1.0000... - Page 23 0046 WWX0205828 1.0000 RING,PISTON BACK-UP 0047 WWX0205829 1.0000 PRESSURE PLATE 0048 WW0N567264 1.0000 O-RING 0049 WWX0205830 1.0000 SET FOR SPRING 0050 WWX0205831 1.0000 WASHER,THRUST 0051 H04-29-001 1.0000 GEAR CARRIER ASSY.-INPUT 0052 WWX0205838 1.0000 WASHER,THRUST 0053 H04-29-002 1.0000 GEAR CARRIER ASSY.-OUTPUT 0054 WWX0400881 1.0000...
- Page 24 WPT Power 1600 Fisher Road - Wichita Falls, TX 76305 P.O. Box 8148 - Wichita Falls, TX 76307 Ph. 940-761-1971 www.WPTpower.com WWH-IW-010_B Page 24 of 24...
