COMEPI PS Series Quick Start Manual

Foot Switches
Applications
Foot switch operated machines such as: shearing machines, spinning machines, spinning lathers, machine tools, wrapping machines, riveting presses, etc.
Foot switches come in five operation formats:
• Free movement: contact position follows pedal movement: actuated when the pedal is pushed down, released when pedal is in state of rest.
• Foot switch locked in neutral position: same operation as above, after unlocking the pedal with the end of the foot.
• Foot switch latched in low position: same operation as free movement, excepted that a state of rest is obtained only after having unlatched the pedal with
the end of the foot.
• Free movement with two-stage actuating force: two different contact blocks are actuated with a different force on the lever.
• Foot switch locked in neutral position with two-stage actuating force: same operation as above, after unlocking the pedal with the end of the foot

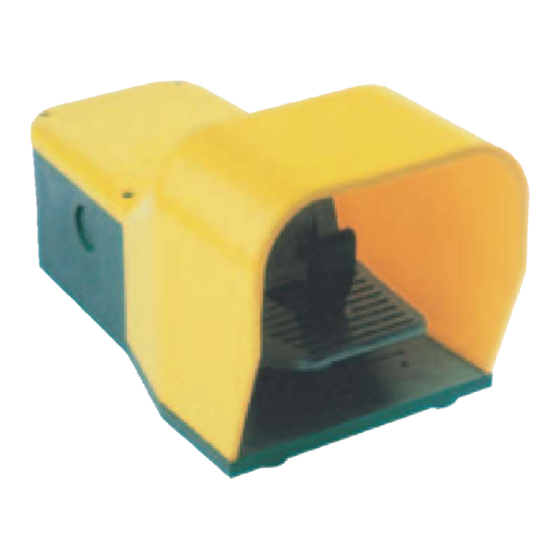

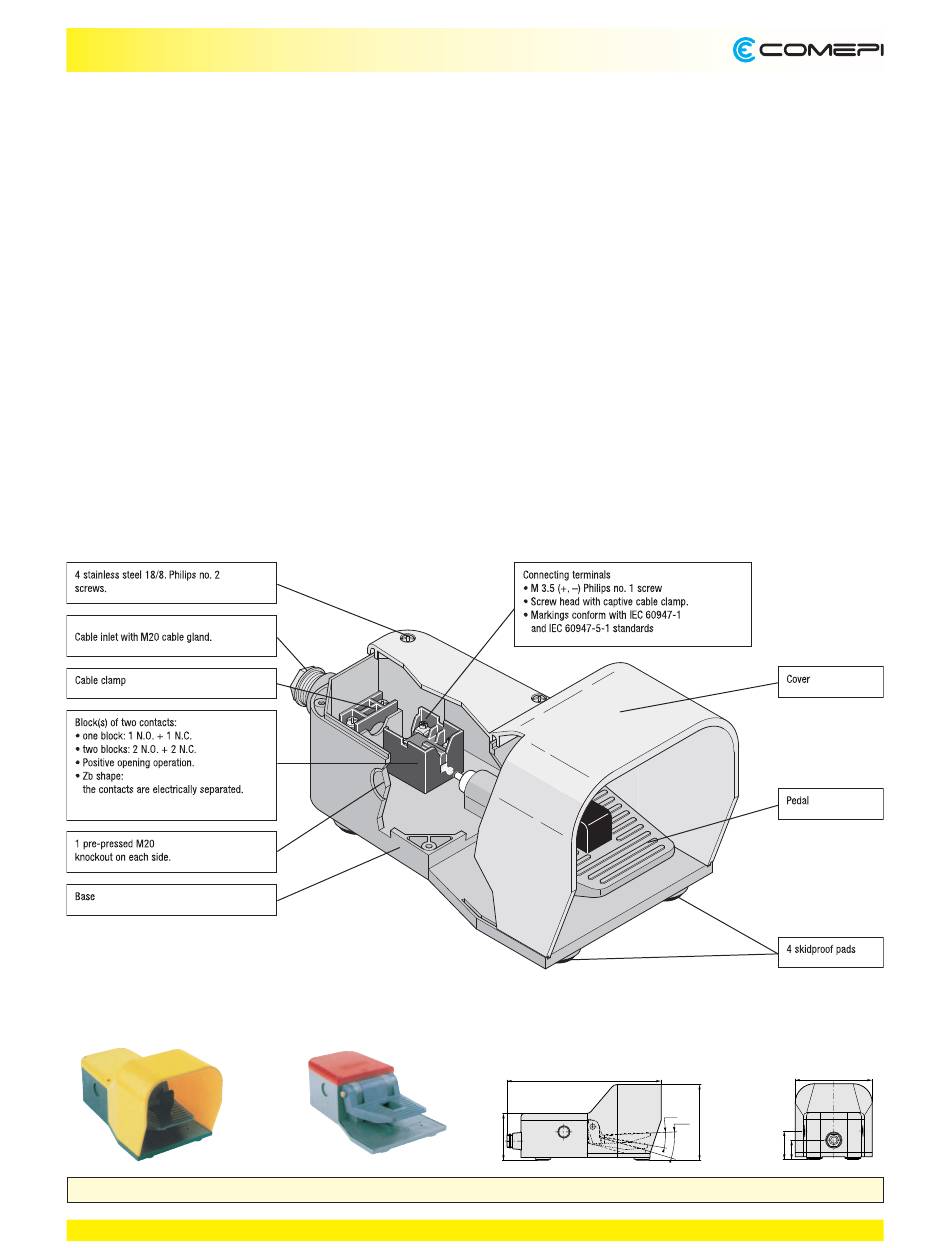

Description of the switch
• Dimensions: 280 x 140 x138mm.
• Materials: Standard version (IMQ approved): Base, cover and pedal made of shock resistant ABS material.
Self-extinguishing / VO (IMQ, UL, CSA approved): Base, cover and pedal made of Polycarbonate/ABS-V0.
Metal version / V0-M (IMQ, UL, CSA approved): Cover made in die cast aluminium, base and pedal made of Polycarbonate/ABS-V0.
• Colour choice: Grey base; grey, yellow or red cover.
• Variations: Grey base, half-red cover. Especially used for emergency stop function.
They comply with the requirements of European Directives (Low Voltage and RoHS) and are conform to European and International Standards.
The CE declaration of these products are available in the download section of website www.comepi.it or by writing to the following email address: tecnico@comepi.it
DDC05 - Foot Switches.
Dimensions (in mm)
• Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Double insulation - Plastic Casing IP65 - Description
• Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
pag. 121
124
PS... / PD...
280
12°a
17.5° b
140
pag. 118
