Installation Sheet

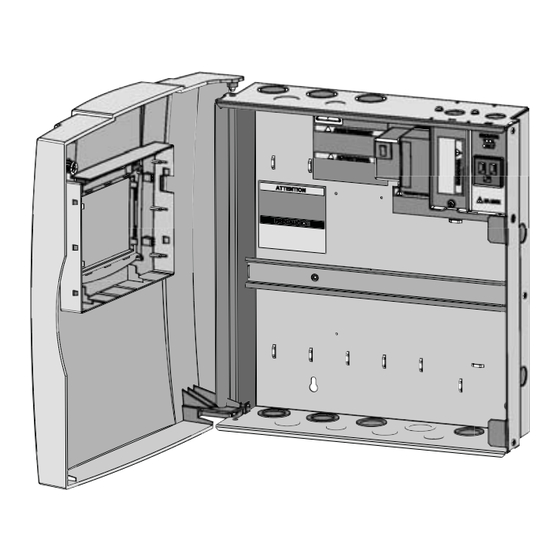

Enclosure for Tracer™ DIN-mounted Controllers
Ordering Number: X13651534010 (120 Vac, w/outlet); X13651535010 (230 Vac, no outlet)
These instructions will provide the following:
•
Warnings, Cautions, and Notices
•
Model Numbers and specifications
•
•
•
Warnings, Cautions, and Notices
Warnings, cautions, and notices are provided in appropriate places throughout this document:
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious
WARNING:
injury.
Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate
CAUTION:
injury. It may also be used to alert against unsafe practices.
Indicates a situation that could result in equipment or property-damage only accidents.
NOTICE:
NOTICE
Avoid Equipment Damage!
Install and use the controllers as specified by the manufacturer. Failure to do so could result in equipment damage.
May 2009
© 2009 Trane All rights reserved
X39641147-01B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Trane Tracer X13651534010
Summary of Contents for Trane Tracer X13651534010
- Page 1 Indicates a situation that could result in equipment or property-damage only accidents. NOTICE: NOTICE Avoid Equipment Damage! Install and use the controllers as specified by the manufacturer. Failure to do so could result in equipment damage. X39641147-01B May 2009 © 2009 Trane All rights reserved...
- Page 2 Model Numbers and Specifications Model Numbers and Specifications Model Numbers Before installing the controller, verify the correct model for local power requirements. The model number is on the shipping label or on the product label inside the enclosure. Refer to the listing below and to Figure 3, p.
- Page 3 Minimum Clearances and Dimensions Minimum Clearances and Dimensions Ensure that the selected location provides enough space for the minimum clearances (Figure 1) and the enclosure dimensions (Figure Figure 1. Minimum clearances 12 in. (30 cm) 24 in. 12 in. (60 cm) (30 cm) 36 in.
- Page 4 Minimum Clearances and Dimensions Figure 2. Enclosure dimensions Knockouts for 1 inch (25 mm) and .75 inch (19 mm) conduit Knockouts for .50 inch (13 mm) conduit (for AC wiring) Knockout for .75 inch (19 mm) conduit Knockout for .50 inch (13 mm) conduit 3.125 in (80 mm) 2.25 in (56 mm) 14.75 in (373 mm)
- Page 5 Mounting and Wiring Location Ensure that the location meets the operating environment requirements and clearance requirements described in the following sections. The controller must be installed indoors. Trane recommends locating the controller: • Near the controlled equipment to reduce wiring •...
- Page 6 Mounting and Wiring To connect high-voltage power wires: 1. Lock open the supply-power disconnect switch. 2. At the top-right corner of the enclosure, remove the knockout for .50 inch (13 mm) conduit. 3. Open or remove the enclosure door if it is already installed. 4.
- Page 7 Installing the Enclosure Door Installing the Enclosure Door Note: Before installing the enclosure door, unpack the door and check for missing or damaged parts and any cracks in the plastic. Then, ensure that the magnetic catch is installed. To install the enclosure door: 1.
- Page 8 Trane and the Trane logo are trademarks of Trane in the United States and other countries. All trademarks referenced in this document are the trademarks of their respective owners. Literature Order Number X39641147-01B Date May 2009 Supersedes X39641147-01A www.trane.com For more information, contact your local Trane Trane has a policy of continuous product and product data improvement and reserves the right to office or e-mail us at comfort@trane.com...
