Trane BAYCLE14A1422A Installer Manual

INSTALLER'S
GUIDE
ALL phases of this installation must comply with
NATIONAL, STATE AND LOCAL CODES
BAYCLE14A1422A
Models:
BAYCLE17A1722A
BAYCLE21A2130A
BAYCLE24A2430A
IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service information pack upon
completion of work.
A. GENERAL
WARNING: These instructions should be used only
by qualified individuals. These individuals should be
specifically trained and experienced in the installa-
tion of furnaces, related accessories, and comfort
conditioning components. Improper installation
can create a hazard which could result in property
damage, personal injury, or death.
These instructions do not cover all variations in systems
or provide for every possible contingency. Further in-
formation may be desired or particular problems may
arise which are not covered sufficiently by this manual.
Contact your local distributor or the manufacturer as
listed on the furnace nameplate.
B. INSPECTION
Check carefully for any shipping damage. This must be
reported to and claims made against the transporta-
tion company immediately. Check to be sure all major
components are in the unit. Any missing parts should
be reported to your supplier at once, and replaced with
authorized parts only.
Parts List:
Qty. Description
2 Side Panel with Drain
Pan Rail (Insulated)
1 Back Panel (Insulated)
1 Front Panel (Insulated)
1 Front Top Angle
1 Front Support
1 Back Support
1 Bag containing:
Coil tubing cutout template, front plate
(insulated) for tubing, 38 sheetmetal screws,
2 pop rivets, and 3 grommets
Coil Enclosures
IMPORTANT:
IF ONLY INSTALLING COIL ENCLOSURE AND NOT A COIL AT THIS
TIME, DO NOT THROW OUT THE PARTS-INSTRUCTION BAG
ASSEMBLY. THE PARTS AND INSTRUCTIONS WILL BE REQUIRED FOR
INSTALLING THE "4TXA" AND "4PXA" MODELS.
THE BAG MUST BE KEPT WITH THE UNIT FOR COIL INSTALLATION.
ATTACH THE BAG TO THE UNIT WITH THE ADHESIVE STRIPS PRO-
VIDED ON THE BAG.

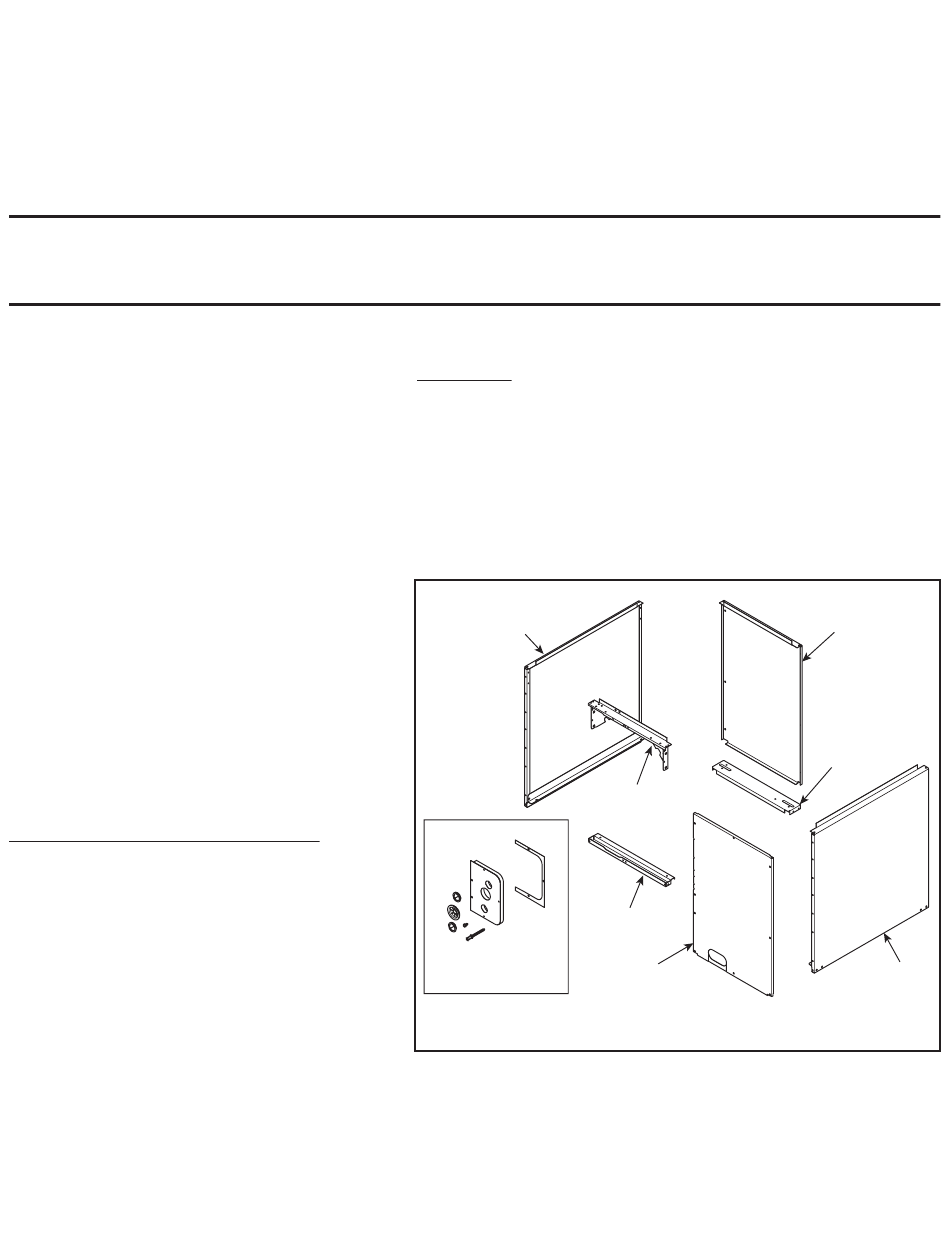

Side Panel
Front Support
Bag Contents
Front Panel
18-AH13D9-5A-EN
Front Top Angle
Figure 1
Back Panel
Back Support
Side Panel
