Landworks LBB02 Instruction Manual

24v power barrow
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

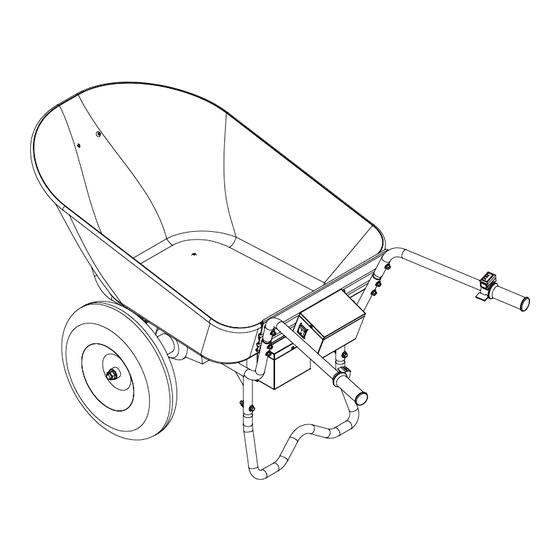

24V Power Barrow
Instruction Manual
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules
and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required. Keep
these instructions to assist in future servicing.
REV 08/12/19

Advertisement

loading

Related Manuals for Landworks LBB02

Summary of Contents for Landworks LBB02

  • Page 1 24V Power Barrow Instruction Manual WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.

  • Page 2: Specifications

    SPECIFICATIONS Item No. LBB02 Rating DC 24V/0.25HP/180W Loading Capacity 330lbs/150kgs Battery Specification 12V,7Ah*2 Speed Forward: 0-5km/h(0-3MPH) Variable, Reverse: 0-3.5km/h(0-2.2MPH) Variable Max. Cubage Max 4 Cubic Feet POWER BARROW SAFETY USE WARNINGS 1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

  • Page 3: Personal Safety Warnings

    BATTERY POWER TOOL USE AND CARE WARNINGS 1. Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into power tools that have the switch on invites accidents. 2. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  • Page 4 ASSEMBLY Step 1： Step 2： Install bucket bracket (number 1) Install bucket bracket (number 1) and drive axles (number 8) with and supporting leg (number 18) bolts. (See Figure 1) with bolts. (See Figure 2) Figure 1 Figure 2 Step 3： Step 4：...

  • Page 5: Troubleshooting

    TROUBLESHOOTING Problem(s) Possible Cause Corrective Action The power barrow Battery is not charged Charge the battery pack according to the does not run. instructions included with you model. The wire is loose Check all the connectors and to see if any part is loose or not.
