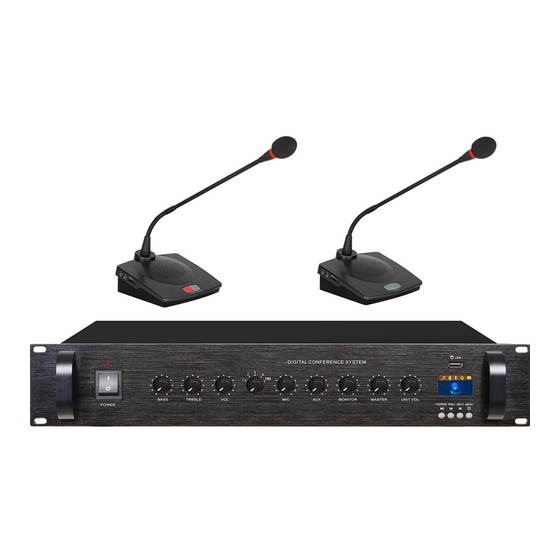

- Page 1 INSTRUCTION MANUAL Digital Conference System HT-7000 SERIES...
-
Page 2: Table Of Contents
INDICE IMPORTANT SAFETY INSTRUCTIONS----------------------------------------------------------------------------------1 DESCRIPTION-------------------------------------------------------------------------------------------------------------------4 MAIN UNIT FRONT PANEL FUNCTIONS AND CONTROLS - HT-7000----------------------------------------4 MAIN UNIT REAR PANEL FUNCTIONS AND CONTROLS - HT-7000------------------------------------------5 CHAIRMAN AND DELEGATE UNIT FUNCTIONS AND CONTROLS-------------------------------------------5 INSTALLATION AND CONNECTION------------------------------------------------------------------------------------- 7 HOW TO USE THE SYSTEM-----------------------------------------------------------------------------------------------10 USB RECORDING MODULE-----------------------------------------------------------------------------------------------10 EXTENSION POWER UNIT FRONT PANEL FUNCTIONS AND CONTROLS-------------------------------11 10. -
Page 3: Important Safety Instructions
1. IMPORTANT SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electric shock do not remove cover (or back panel). No user serviceable parts inside. Refer servicing to qualified personnel only. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. - Page 4 Grounding or Polarization: • All precautions must be observed in order to avoid defeating grounding or polarization. • Unit metal parts are grounded through the AC power cord. • If the AC power outlet doesn’t have grounding, consult an electrician for outlet grounding. Power cable protection: The power cable should be routed in such a way that it will not be walked on or pinched by items placed upon or against it, paying particular attention to cables at their connections, receptacles and wall outlet.
- Page 5 THD value will raise over 10%. Don’t place this unit in a bookshelf or in other enclosed spaces. • HTDZ is not responsible for any damage that occurs due to a incorrect installation of the unit. Remark: •...
-
Page 6: Description
Thank you for choosing this HTDZ product and for trusting our brand, which strives to be synonymous with professionalism, precision, high quality and reliability. All of our products comply with EC regulations regarding audio equipment for continuous use. 2. DESCRIPTION This conference system uses digital technologies according to the European Community's IEC914 and ISO standards. -
Page 7: Main Unit Rear Panel Functions And Controls - Ht-7000
4. MAIN UNIT REAR PANEL FUNCTIONS AND CONTROLS - HT-7000 Fig.2 ① TREBLE GAIN: Rotate this control counterclockwise to emphasize high frequencies ② AUX IN: Line level input (RCA). Connect this input to an audio source such as a CD player, etc. ③... -
Page 8: Installation And Connection
HT-7300c/d HT-7310c/d HT-7010c/d HT-7000Ac/Ad HT-7000Bc/Bd HT-8200c/d HT-7500c/d HB-350c/d Fig.3 ① Electret condenser cardioid microphone ② Indicator light on active microphone: When microphone is active, indicator light switches on ③ Socket with screw thread ④ Priority key ( for chairman unit only): When press and hold this key 1 second on chairman microphone unit, all active delegate microphones will be switched off. - Page 9 Connect the unit to 230 V AC 50/60 Hz mains. Use the connection cables provided to connect the daisy- chained microphone units to the 4 Delegates (figure 2, ref. 7) as shown in figure 4, paying attention not to connect more than 30 microphones units to each line and no more than 64 microphone units altogether. Closed-loop lines can be created with the optional 3 m cable, in this way no microphone units will be isolated in case of interruption one of the lines.
- Page 10 Fig.4...
- Page 11 TYPE OF CONNECTIONS Balanced connection: Unbalanced connection: Balanced connection with TRS jack Unbalanced connection with TRS jack Balanced connection on EUROBLOC connector Unbalanced connection on EUROBLOC connector RCA Connection...
-
Page 12: How To Use The System
7. HOW TO USE THE SYSTEM User can set the system working mode by the mode knob (fig1. ref.5) MODES OF OPERATION: • FREE MODE: When this mode is selected, an unlimited number of participants can speaker simultaneously. • LIMIT MODE: When this mode is selected, plus the number of delegates that can speak simultaneously. -
Page 13: Extension Power Unit Front Panel Functions And Controls
The record file will save in the folder named “Record”, the file format is *.mp3 ③ Bluetooth: In this interface user can use other Bluetooth device (such as mobile phone) to connect it and play the audio, system Bluetooth device name “NLJ-BT In Bluetooth interface, user can enter the Bluetooth function by press key “... -
Page 14: Expansion Unit Connnection
Provided ⑤ EXSPANDER LINK OUT:Connect this output to the next expansion unit input using the provided cable There is no limit to the number of expansion units that can be connected, yet the total number of manageable microphone units must not exceed 254. 11. - Page 15 Method 2:...
-
Page 16: Technical Features
Directive 2014/35/UE (Low Voltage) according to the following standard: EN 60065:2014 HTDZ maintains a policy of constant research and development, therefore we reserve the right to apply improvements to existing equipment without prior notice REV. 00 41/10... - Page 17 HAITIAN ELECTRONIC TECHNOLOGY CO., LTD.. Dong an Industrial Park Enping, Guangdong, China 529400 Tel: +86-750-7820666/690 Fax: +86-750-7820633 www.htdz.com.cn...
