VTC701AHD

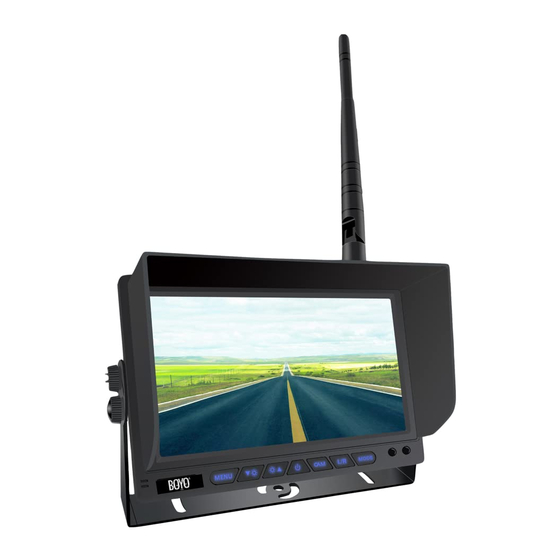

7" 1080P Full HD Digital
Wireless Monitor and Camera System
USER MANUAL
Please read the instructional complete before use and keep it for
future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTC701AHD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Boyo Vision VTC701AHD

  • Page 1 VTC701AHD 7” 1080P Full HD Digital Wireless Monitor and Camera System USER MANUAL Please read the instructional complete before use and keep it for future reference.
  • Page 2: Product Features

    Product Features • 1080P Full HD Image Quality • 7” All View Angle IPS TFT LCD Panel • Long Wireless Operational Range up to 300M • Audio Monitoring with a Microphone Built into the Camera • Camera with Heater Function •...
  • Page 3: Installation

    Wiring a. Monitor wiring: 12VDC - ACC b. Camera wiring: Pairing Button 12VDC – ACC Installation 1. Pre-Installation a. Run 12VDC power wires to position where the monitor and the camera will be placed. b. Power on and position the monitor and the camera to find the best monitor viewing position and the camera view position.
  • Page 4 2. Monitor Installation a. Install the monitor bracket using the 3 self- tapping screws. • Screw in the center. • Adjust the angle. • Tighten all screws. b. Install the monitor using 2 bolts on each sided. * Do not tighten bolts. c.
  • Page 5 Operation - Monitor Button Functions Buttons • Menu Button: Color/Audio controls. Pressing, the button, loops through the Brightness > Contrast > Saturation > Volume controls. Decrease Increase Brightness Contrast Saturation Volume • Power Button: Display (the screen saver mode) on/off. •...
  • Page 6 Pairing Button 12VDC – ACC • Flip Button: Camera image flip. Pressing, the button, loops through the flips. L/R U/D L/R U/D Normal Upside Down Mirror Mirror – U/D • Scale Line On/Off Scale Line On Scale Line Off...
  • Page 7: Monitor Specification

    Monitor, Camera and Wireless Specifications 1. Monitor Specification Panel: 7” Digital Panel TFT IPS panel View Angle: Full Angle of View Resolution: 1024*600 Display Ratio: 16:9 Audio: Speaker Built-in, Volume control buttons Image Control: Reverse / Non-Reverse (Horizontal Flip) Parking Guidelines: Display / No-Display (Selectable) Power:...
  • Page 8: For Technical Support

    WARRANTY INFORMATION This limited warranty is given to the end-user or the retail purchaser (referred to this warranty as “Original Purchaser”) that it will be free from defects in material and workmanship for a period of one year from the date of the purchase of the new product (excluding accessory items such as power cords, cradle, memory card, adaptor, and cables).
