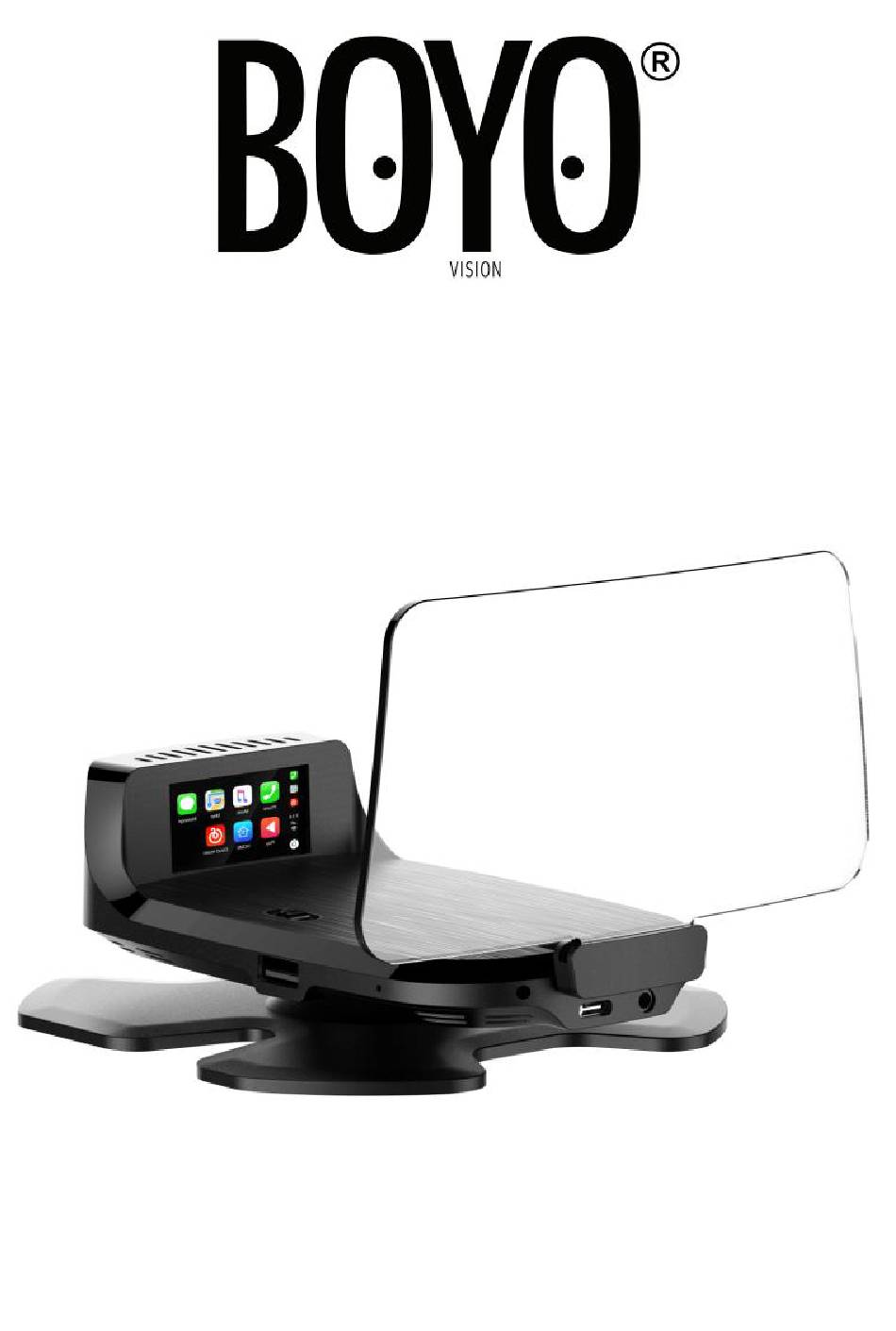

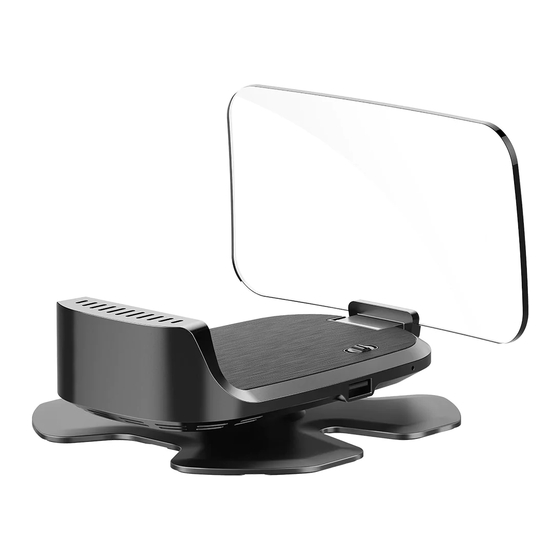

- Page 1 BOYO VTHUDpro Car Head-up Display Installation & User Manual...
- Page 2 Thank you for choosing Head-up Display from BOYO Vision. Please read this Manual carefully before installing and using the Product to enhance driving pleasure. Warning: Do not use the head-up display, if it causes distraction while driving. - 1 -...
- Page 3 About VTHUDpro Through innovative product design concepts, VTHUDpro is an interactive device, designed to improve driving experience. While keeping eyes on the road and hands on the steering wheel, get a best direction and navigate to your destination, make or answer phone calls, listen to music, and even send/receive messages while driving.
- Page 4 Package Contents Please check the package contents. ① Main unit ② Remote control ③ OBDII Cable ④ 12V Power Cable ⑤ Cable clips ⑥ User manual - 3 -...
- Page 5 Installation Step1. HUD installation. Assemble the base unit and the main body. Find position on dashboard. Remove adhesive protection cover from the bottom of the base unit and fix on the dashboard. Step 2. Connect power • If your car has OBD-II port, find and connect using the OBD-II cable.
- Page 6 Step 4. Connect iOS mobile device with CarPlay or Android mobile device with Android Auto to VTHUDpro. USB connection is on the right side of the main unit. For Google Auto users: For some mobile phones, you may also be asked to install supporting Apps.
- Page 7 HUD_BT Bluetooth device, and connect. Enter 0000, Bluetooth PIN code is needed for connection, Step 5. Turn ‘on’ the VTHUDpro switch. The switch is located on top side of the main unit. Turn on the engine and you are ready to use the VTHUDpro.
- Page 8 Before Using 2.1. Know your remote-control buttons ① Upper Selections（For Android Auto） ② Function/Menu Button: Short Press = to switch between App(Apple CarPlay/Android Auto) and vehicle information(OBDII) Long Press = enter menu ③ ④ Previous item ⑤ Voice assistant – call voice assistance ⑥...
- Page 9 Change “Language”, “Speed unit” and FM frequency, 2.3. Know your initial settings FM Frequency Setting: There is no built-in speaker in VTHUDpro. Please turn on your car’s FM radio, if you can’t hear any sound, you may need to set FM transmission frequency and vehicle radio’s FM receiving frequency.
- Page 10 Using VTHUDpro 3.1. Use the “voice assistant” as much as possible. VTHUDpro supports voice control. Press the “Voice assistant” button to activate the voice assistant. Then say a command. For example, “call Charles”, “send massage ‘give me a call’ to Ester”...
- Page 11 Android Auto Interface The Google Auto screen is divided into two areas; Upper and Lower Selections. Use the "Upper Selections" and "Lower Selections" buttons to switch between two selections, and then use “Previous item” and “Next item” and “OK” button to make a selection. Screen Saver Mode In some cases, listening to music or an audio book, you may want to turn off the screen.
- Page 12 VTHUDpro Product Diagram 4.1. The main body ① 3.5 mm audio output interface ② Ambient light sensor detection hole ③ OBDII connector - 11 -...
- Page 13 ④ Reset hole ⑤ USB socket ⑥ Switch on/off ⑦ Base ⑧ Image combiner (Combiner) ⑨ 4.2. The Composition of Base ① Adhesive pad ② Universal support table ③ Universal support table fastening screw (the screw has been adjusted to the fine adjustment of the universal support table before leaving the factory) - 12 -...
- Page 14 How to Separate the Base 4.3 Remote Control - 13 -...
- Page 15 ① Upper Selections（For Android Auto） ② Function / Menus switch (long press enter menu) ③ ④ Previous item ⑤ Voice assistant ⑥ Lower Selections（For Android Auto） ⑦ Screen on and off ⑧ Next item ⑨ Buckle 4.4 OBD II ① OBDII Male and OBD Readout Circuit ②...
- Page 16 5. Technical Specification Rated working voltage 12V-24V Limit working voltage 8-27V USB output 500ma Working temperature 0-75 degrees TFT screen resolution 480*240 Projection size 15-inch virtual image two meters away >60dB Degree of distortion <0.1% Frequency response 20Hz-15Khz Left and right channel 〉60dB separation Bluetooth version...
- Page 17 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 18 - 17 -...
- Page 19 For technical support contact: Call 888-941-3060 Email info@visiontechamerica.com Visit www.VisionTechAmerica.com - 18 -...
