Inverter Parallel Kit Operation
Works with 50A parallel kits
This parallel kit is intended to be used only with GENMAX inverter generators.
Please read safety information below before proceeding.
Operating a generator can be dangerous if used improperly.
Always refer to owners manual for safe and proper operation of
the generator.
Installation and Operation:
1. Make sure both engine switches are in the off position, and confirm the
Low idle switches on both generators are turned off.

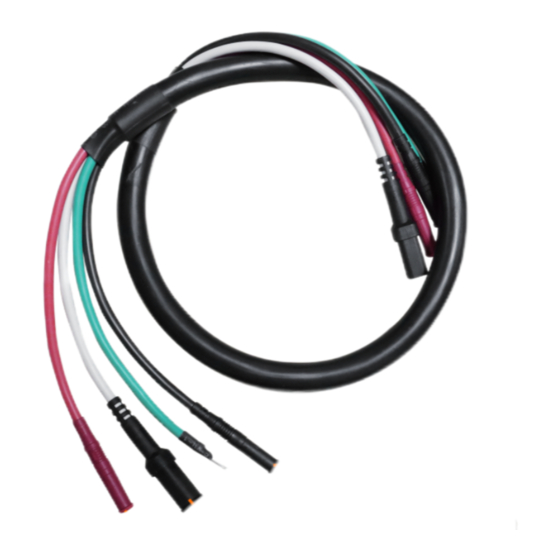

2. Connect the black and red parallel cable leads to the black parallel ports
on each corresponding inverters control panel. DO NOT connect two red
leads or two black leads into the same inverter.
3. Attach the ground terminal (green wire) from each end of the parallel
cable to the corresponding ground terminal on each generator.Connect
and tighten the ground wire.
4. Start each generator and confirm that the green output indicator is
illuminated on both.
5. If using Low idle mode, turn both Low idle switches on after the
generators are started.
6. To shut down, turn off both generators and then remove the parallel
cords.
R
WARNING
MODLE: GM9000PK
Advertisement
Table of Contents
Related Manuals for GENMAX GM9000PK
Summary of Contents for GENMAX GM9000PK
- Page 1 MODLE: GM9000PK Inverter Parallel Kit Operation Works with 50A parallel kits This parallel kit is intended to be used only with GENMAX inverter generators. Please read safety information below before proceeding. WARNING Operating a generator can be dangerous if used improperly.
- Page 2 MODLE: GM9000PK NOTICE If high electrical loads are connected, turn the Low idle switch to the OFF position to reduce voltage changes. With the generators running, make sure both green output indicator lights are ON. If not ON, turn the generators off, restart the generators, and make sure both green output lights are ON.
