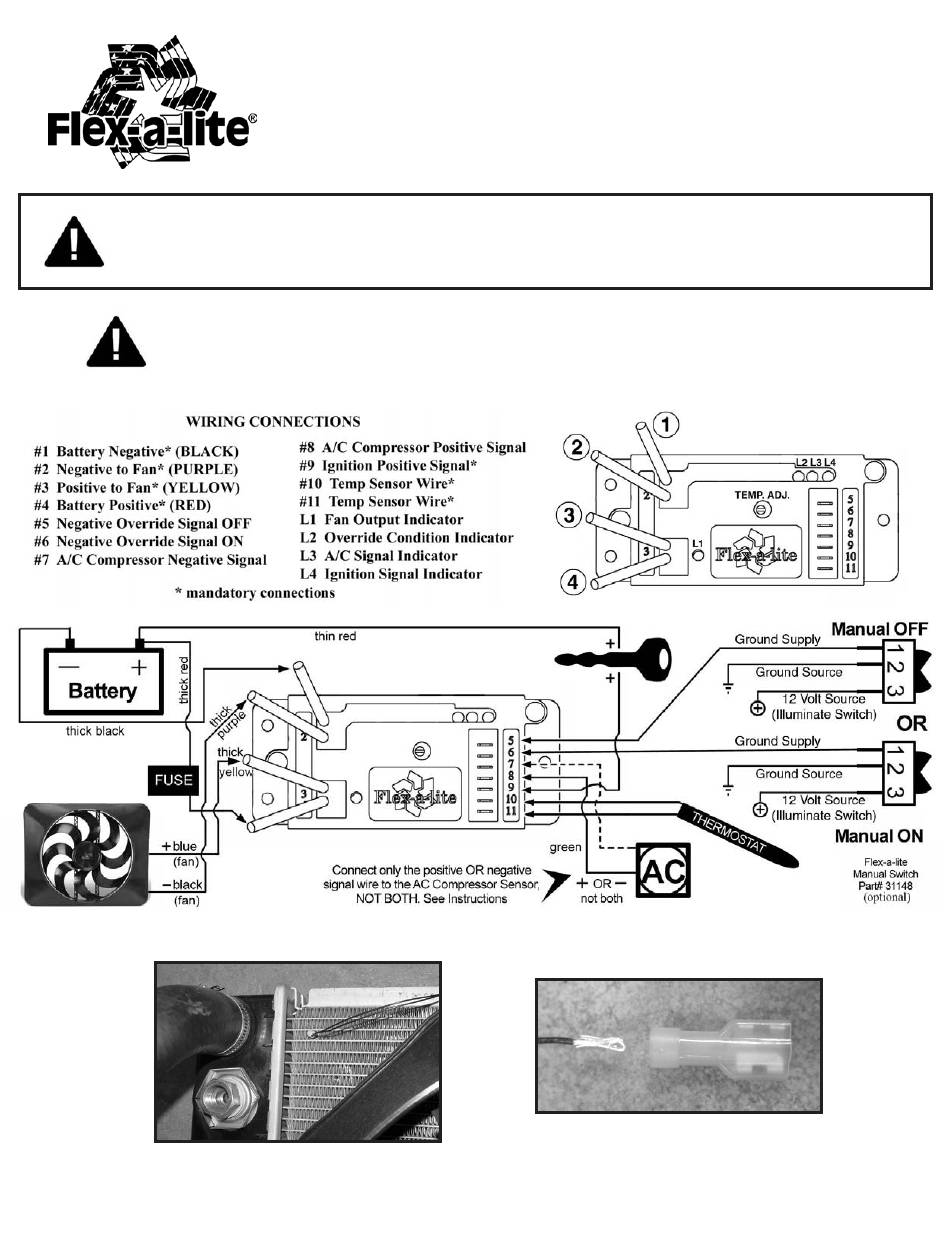

Installation and Wiring

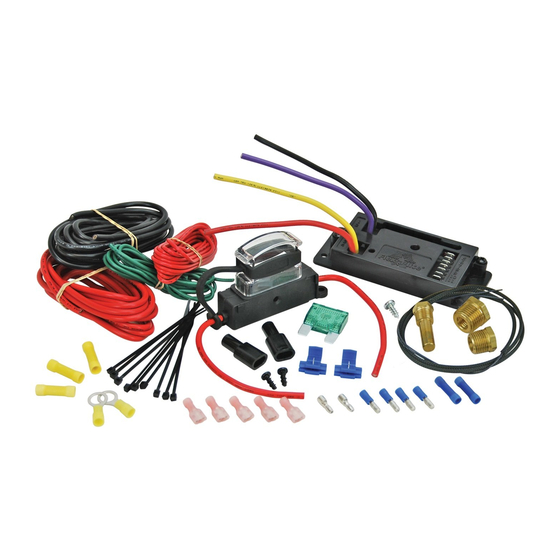

Quick Start Motor Control Kit
#31173, #31174
**Before installation of your Flex-a-lite fan, be sure that your batteries and charging
system are operating correctly. Poor batteries or charging system may result in the fan
or controller to function improperly.**
Follow these instructions carefully to avoid damaging the control unit., fan
motors, and your vehicle! When crimping wires, always use a quality crimping
tool (DO USE PLIERS OR OTHER DEVICES).
When crimping the temp. probe, strip back the
Install the temp. probe near the inlet hose,
insulation, then fold wire back on itself to double
leaving 1/4" of the probe protruding from the core
thickness.
Advertisement
Table of Contents
Related Manuals for Flex-a-Lite 31173
Summary of Contents for Flex-a-Lite 31173
- Page 1 Installation and Wiring Quick Start Motor Control Kit #31173, #31174 **Before installation of your Flex-a-lite fan, be sure that your batteries and charging system are operating correctly. Poor batteries or charging system may result in the fan or controller to function improperly.** Follow these instructions carefully to avoid damaging the control unit., fan...
- Page 2 Initial Start-up and Adjustment Procedures Turn ignition on. After 6 seconds, LED #L4 should light up. If not, check to make sure that there is 12 volts at terminal #9 on the Fan Motor Control. The delay is to allow the starter to start the vehicle without the fans drawing any power.
