USER MANUAL
Handling Crush
PM 2400 / PM 2400 with hoof
trimming equipment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM 2400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Marechalle PM 2400

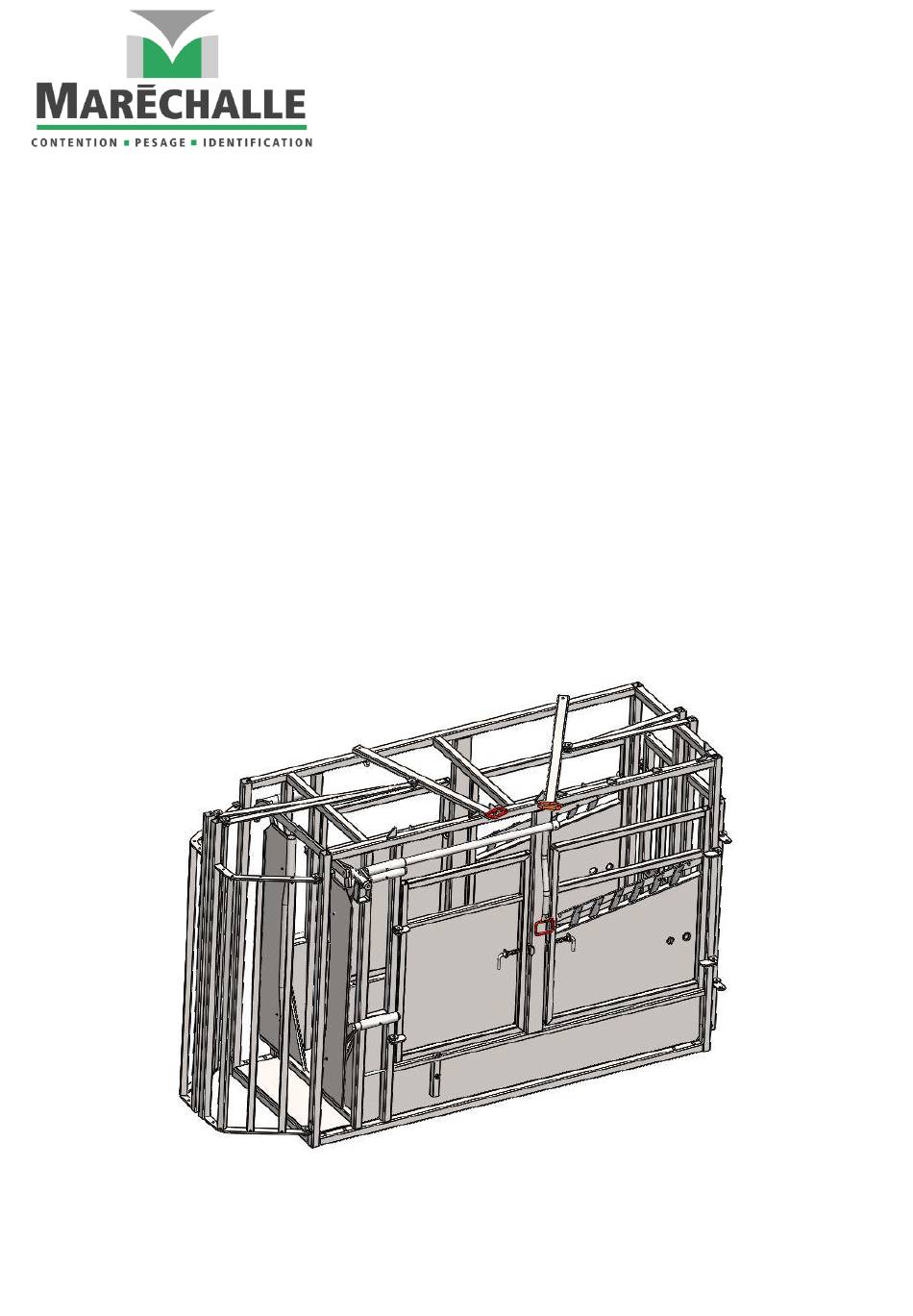

  • Page 1 USER MANUAL Handling Crush PM 2400 / PM 2400 with hoof trimming equipment...
  • Page 2: Table Of Contents

    User Manual PM 2400 / PM 2400 SUPER Content: Manufacturer Safety instructions Technical features of the product Commissioning Parts details Descriptions Uses Exit of the animal Hoof trimming equipment P a g e...
  • Page 3: Manufacturer P3

    User Manual PM 2400 / PM 2400 SUPER Manufacturer: Marechalle Pesage 130 C Avenue Jean Jaurès 02300 CHAUNY France Tel: +33 (0)3 23 40 22 80 E-mail: contact@marechalle-pesage.fr Website: www.marechalle-pesage.fr P a g e...
  • Page 4 User Manual PM 2400 / PM 2400 SUPER Safety rules: For safe use of the machine, please follow the instructions below: • The machine must be lifted from below. • It is not recommended to transport animals inside the product.
  • Page 5: Technical Features Of The Product

    User Manual PM 2400 / PM 2400 SUPER Technical features of the product: PM 2400 PM 2400 hoof Unit trimming External Dimensions: Length 2.80 2.80 Meter Width 1.10 1.10 Meter Height 1.80 1.80 Meter Internal Dimensions: Length 2.40 2.40 Meter Width 0.82...
  • Page 6: Commissioning P6

    User Manual PM 2400 / PM 2400 SUPER Commissioning: Assembly of baskets: Control of the basket Basket arm arms Step 1: Release the baskets and basket arms. Step 2: Assemble the right basket on the crush frame. Step 3 : Insert the basket arms into the middle of the control arm.
  • Page 7: Parts Details

    User Manual PM 2400 / PM 2400 SUPER Parts details: P a g e...
  • Page 8: Descriptions P8

    User Manual PM 2400 / PM 2400 SUPER Descriptions: Backstop bar with blocking system and various ratchets crank. Back door with double leaf. Shutters’ control handle to block the animal's head. Control for opening and closing the rear door. Control for opening and closing the front safety basket.
  • Page 9: Exit Of The Animal

    User Manual PM 2400 / PM 2400 SUPER Uses: Close the safety basket, open the shutters. Bring the animal in through the back of the product. Block its head with the shutter (adjust the width with the crank). Position the backstop bar against the animal (block the bar in the sheet metal for good support).
  • Page 10: Hoof Trimming Equipment

    User Manual PM 2400 / PM 2400 SUPER Hoof trimming equipment: Part details: Ventral straps Ventral Ventral winch straps Front hoof trimming Front legs winch Winch support Back hoof trimming Back legs winch Bar for back legs 10 | P a g e...
