Bachmann E-Z Command Plus Setup And Programming Instructions

Setup and Programming Instructions
Bachmann Trains is pleased to bring you E-Z Command® Plus. With E-Z Command®, digital control of speed, lighting, sound, and
direction of multiple locomotives is possible, as well as remote control of Bachmann's E-Z Command® DCC-equipped turnouts.
E-Z Command® simplifies the programming process for locomotives with one-button, on-track programming. Other features include
128-speed steps for smooth operation and plug-in wiring for simple setup. E-Z Command® will operate all DCC-equipped Bachmann
locomotives as well as NMRA compliant DCC-equipped locomotives from many other manufacturers.
Your E-Z Command® Plus Digital Command Control System consists of the following components:

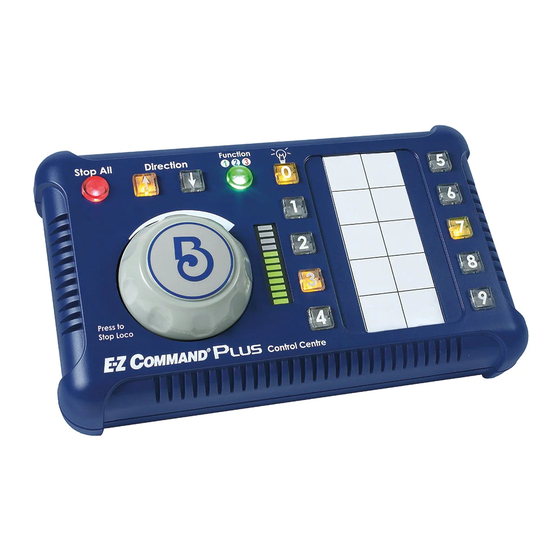

• E-Z Command® Plus Control Center
• 1 Red E-Z Track® Track Power Wire
• Wall-pack Power Supply
With plug-and-play capability, E-Z Command® is simple to set up and use, whether you're operating an existing model railroad or building
an entirely new layout. To ensure trouble-free operation, we recommend that you read this manual completely before using your system for
the first time.
Important Notice
Do not connect the E-Z Command® Plus Control Center to the wall-pack power supply until you have connected the control center to
your track. Multiple dial turns required to bring locomotive up to speed.
CAUTI O N-ELECTRI C ALLY OPERATED PRODUCT
NOT RECOMMENDED FOR CHI L DREN UNDER 14 YEARS OF AGE. AS WI T H ALL
ELECTRI C PRODUCTS, PRECAUTI O NS SHOULD BE OBSERVED DURI N G HANDLI N G AND USE
TO PREVENT ELECTRI C SHOCK. I N PUT: 120 VAC 60Hz 22W. OUTPUT: DC 16V 1000mA 16VA
1
