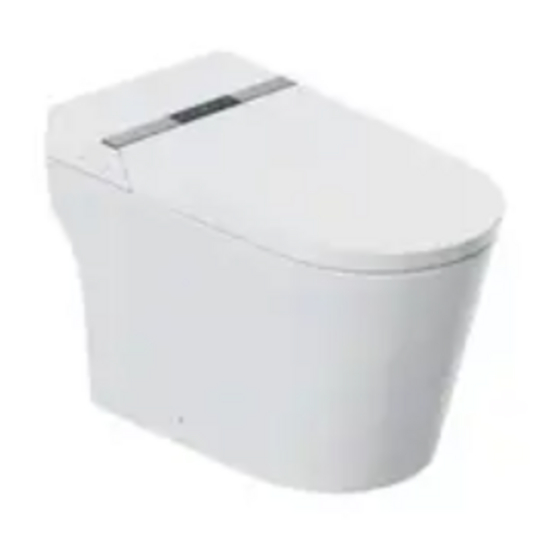

High efficiency elongated all-in-one toilet (20 pages)
Summary of Contents for Glacier bay G15
Page 1
THANK YOU We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this toilet. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
Safety Information (continued) This product is an electric appliance, so it must be placed far Only use tap water or potable water, otherwise it may cause away from water and other liquid. chafing. Do not lay the product on its side or upside down during the Do not connect water supply to heater outlet.
Warranty Thank you for choosing our product. This product is warranted for three (3) years from the purchasing date for free repair of problems arising out of defects in workmanship while using in accordance with installation manual and usage cautions for intended purposes. If the product does not work properly within warranty period, please contact your nearest service center.
Pre-installation TOOLS REQUIRED Safety Assorted Assorted Drill (with 1/4 in. Marker goggles wrenches screwdrivers drill bit) Tape measure Spirit level Water bucket Teflon tape TECHNICAL DRAWING 27.5 in. (700 mm) The drawing is for reference only, and we reserve the right to modify the product appearance.
We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this [PRODUCT]. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Installation Installing battery box Checking water volume Take battery box (K) and insert battery (not included) for Minimum dynamic working water pressure: flushing without power. 0.18+ MPa (5.81+ gal/min or 22+ L/min), failure to meet this pressure will not achieve the best flushing effect. Connect battery box (K) to the connection cable under the toilet.
Page 8
Installation (continued) Installing the cardboard Align cardboard (H) with the centerline of drain outlet. Drain outlet Draw contour line according to cardboard (H). 12 in. (305 mm) Connecting the hose Installing the mounting bracket Connect the water inlet and angle valve (FF or GG) of the Assemble the mounting bracket (I) with bolts (DD).
Page 9
Installation (continued) Installing the toilet Installing the mounting bracket Install a sealing flange (G) into drain outlet. Put the screw (EE) through the fixing sleeve (L). Install toilet on the corresponding position (refer to step 4). Install it through the holes (on both sides of the toilet to the mounting bracket (I) on the ground.
Page 10
Installation (continued) Installing the remote holder (Option 1) Drill a 6 mm diameter hole in the wall to a depth of about 35 mm. Tear off the double-sided adhesive sticker on the back of the hanger (D). Install the expansion pipe (E) into the wall hole, and align it with the hanger (D) hole.
Page 11
Installation (continued) Turning on the angle valve Check the threaded connection for leaks to ensure complete sealing. Angle valve (FF or GG) Turn the angle valve (FF or GG) counterclockwise to the full open position. NOTE: The angle valve (FF or GG) opens with a large torque for the first time.
Operation Parts identification Left side Bumper LED display Button Seat Ceramic toilet Electric leakage Right side REMETTRE RESET protection plug TEST WARNING: TEST BEFORE EACH USE 1. PLUG INTO RECEPTACLE 2. PRESS RESET BUTTON: VISUAL INDICATOR APPEARS. 3. PRESS TEST BUTTON: VISUAL INDICATOR DISAPPEARS.
Operation (continued) Button functions Press and hold Stop button to enter shutdown mode (white light off). Press Stop button again to return to functional mode (white light on, not flashing). In shutdown mode, all functions and buttons (with the exception of the Stop button) will not operate.
Operation (continued) LED display description sterilization water temperature temperature display seat temperature ECO energy saving During self-inspection, the icons for sterilization, water temperature, seat temperature and ECO light up, and the temperature is displayed at 88°F. After self-inspection, sterilization, water temperature and ECO icons go off and seat temperature icon lights up, showing current seat temperature.
Operation (continued) Lid auto open/close Foot sensor Approaching the toilet When the lid and seat are both closed, touch the sensing area with foot to open the lid. When user enters the sensing range, the seat lid opens automatically. Seat Leaving the toilet When the lid is open and seat closed, touch the sensing The seat lid closes automatically 3 minutes after user...
Remote control operation Button functions Drying/ Dryer temperature Rear washing/ Moving washing Front washing/ Moving washing Indicator light Nozzle moving forward Water reducing Water increasing Stop/Energy saver Nozzle moving backward Night light Water temperature Seat temperature Deodorizer Flush Mute Open/Close the lid Open/Close the seat NOTE: The unit makes a clicking noise when front washing, rear washing, and drying functions are in operation.
Remote control operation (continued) Using the remote DRY | DRYER TEMP Press the " " button, the indicator light will light up, showing the current air temperature range. It will stop drying automatically after a cycle or after the user leaves the seat. In the process of drying, press the "...
Page 18
Remote control operation (continued) Long press " " button to enter energy saving mode. Long press " " button again to exit energy saving mode. Energy saving Under energy saving mode, seat temperature is low (level 1) to achieve energy saving. NOTE: If the seat temperature before energy saving is neutral, keep the neutral after energy saving.
Page 19
Remote control operation (continued) OPEN | CLOSE THE LID | SEAT Short press " " button to open or close the lid. Short press " " button to open or close the seat. OPEN CLOSE THE LID OPEN CLOSE THE SEAT Long press "...
Maintenance Main unit (A) care and maintenance Shut off power supply before doing maintenance. Use only a soft, damp cloth to clean. Avoid using harsh chemicals. Once cleaning is completed and all surfaces are dry, re- connect the power plug. Filter maintenance Turn off power and the angle valve (FF or GG).
Page 21
Emergency troubleshooting (continued) Low battery Operate via buttons on the main unit (A). Remote control (C) battery replacement: Remove the remote control (C) from hanger (D). Open the battery cover and replace the batteries. Put the remote control (C) back into the hanger (D). NOTE: After battery replacement, the remote control (C) settings will be restored to the defaults.
Troubleshooting Problem Cause Solution Water supply hose (J) is kinked. Straighten the hose (J) to remove the kink. No water from nozzle. Angle valve (FF or GG) is off. Turn on the angle valve (FF or GG). A water failure occurred. Restore the water supply.
Technical specifications Model Rated voltage 110 V-120 V, 50/60 Hz Rated power 1170 W Main Unit Waterproof IPX4 Power cord length About 7.2 ft. (2.2 m) Flush volume 1.28 gpf (4.8 Lpf) Flushing mode Siphonic jet Rough-in 12 in. (305 mm) Outlet outside diameter ≤...
Page 24
Questions, problems, missing parts? Before returning to the store, call Glacier Bay Customer Service 8 a.m. – 7 p.m., EST, Monday-Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-GLACIER HOMEDEPOT.COM/GLACIERBAY Retain this manual for future use. ASVFAF0055000A-1.0...
