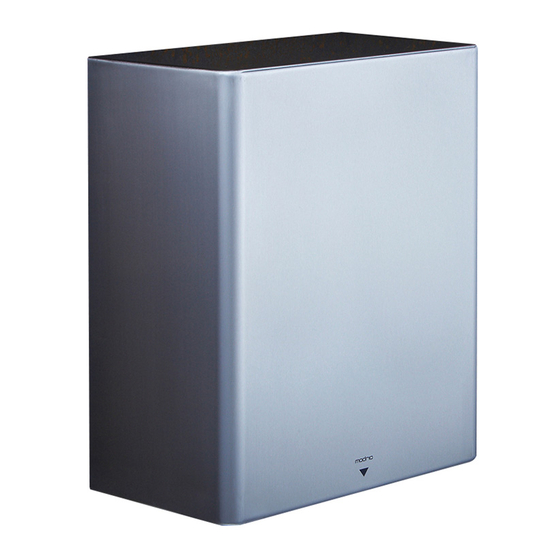

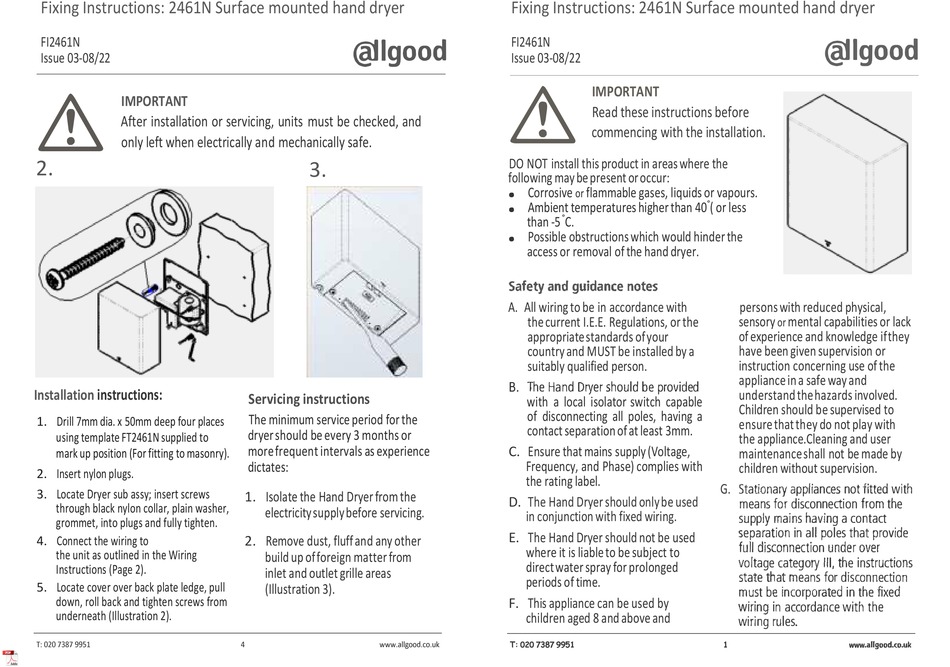

Fixing Instructions: 2461N Surface mounted hand dryer
FI2461N
Issue 03-08/22

IMPORTANT

After installation or servicing, units must be checked, and
only left when electrically and mechanically safe.
�
2.
Installation instructions:
1. Drill 7mm dia. x 50mm deep four places
using template FT2461N supplied to
mark up position (For fitting to masonry).
2. Insert nylon plugs.
3. Locate Dryer sub assy; insert screws
through black nylon collar, plain washer,
grommet, into plugs and fully tighten.
4. Connect the wiring to
the unit as outlined in the Wiring
Instructions (Page 2).
5. Locate cover over back plate ledge, pull
down, roll back and tighten screws from
underneath (Illustration 2).
T: 020 7387 9951
@lgood
3.

Servicing instructions

The minimum service period for the
dryer should be every 3 months or
more frequent intervals as experience
dictates:
1. Isolate the Hand Dryer from the
electricity supply before servicing.
2. Remove dust, fluff and any other
build up of foreign matter from
inlet and outlet grille areas
(Illustration 3).
4 www.allgood.co.uk
Fixing Instructions: 2461N Surface mounted hand dryer
FI2461N
Issue 03-08/22
IMPORTANT
Read these instructions before
�
commencing with the installation.
DO NOT install this product in areas where the
following may be present or occur:
• Corrosive flammable gases, liquids or vapours.
or
Ambient temperatures higher than 40
•
than -5 ° C.
• Possible obstructions which would hinder the
access or removal of the hand dryer.

Safety and guidance notes

A. All wiring to be in accordance with
the current I.E.E. Regulations, or the
appropriate standards of your
country and MUST be installed by a
suitably qualified person.
B. The Hand Dryer should be provided
with a local isolator switch capable
of disconnecting all poles, having a
contact separation of at least 3mm.
C. Ensure that mains supply (Voltage,
Frequency, and Phase) complies with
the rating label.
D. The Hand Dryer should only be used
in conjunction with fixed wiring.
E. The Hand Dryer should not be used
where it is liable to be subject to
direct water spray for prolonged
periods of time.
F. This appliance can be used by
children aged 8 and above and
T: 020 7387 9951
@lgood
° ( or less
persons with reduced physical,
sensory mental capabilities or lack
or
of experience and knowledge if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children should be supervised to
ensure that they do not play with
the appliance.Cleaning and user
maintenance shall not be made by
children without supervision.
G. Stationary appliances not fitted with
means for disconnection from the
supply mains having a contact
separation in all poles that provide
full disconnection under over
voltage category 111, the instructions
state that means for disconnection
must be incorporated in the fixed
wiring in accordance with the
wiring rules.
