allgood Modric 2490 Manual

www.allgood.co.uk

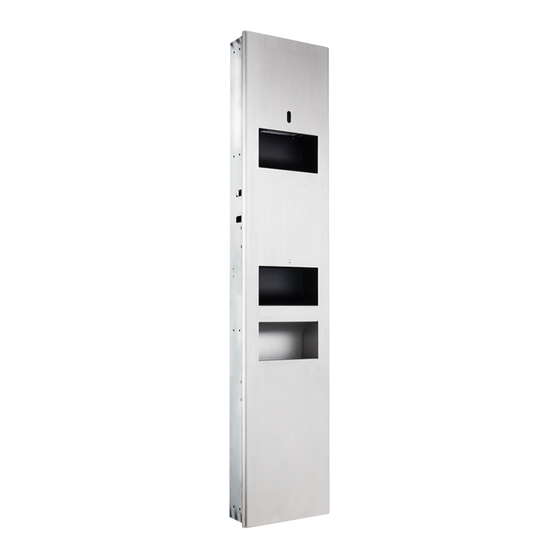

Recessed paper towel dispenser, hand dyer and bin
Fig.1
Fig.3
• When cleaning the
stainless steel panel fascia,
check for dirt and grease and
wipe clean as directed in the
'Care of finishes' section.
• To open the panel, insert
the Modric key supplied into
the consealed lock (fig.1).
Fig.2
Fig.4
• If the panel door has
droped and you need to
realign the panel door
position, turn the screw
(fig. 2) to the disired position
until the door sits flush into
the panel.
• If the panel door has
become tight and difficult
to open/close adjust the ball
catch accordingly (fig.3).
• If panel door has become
loose tighten screw on hinge
(fig.4)
For maintenance details
of the washroom hand
dryers please refer to page 5.
Modric Washroom O&M Manual - 1
