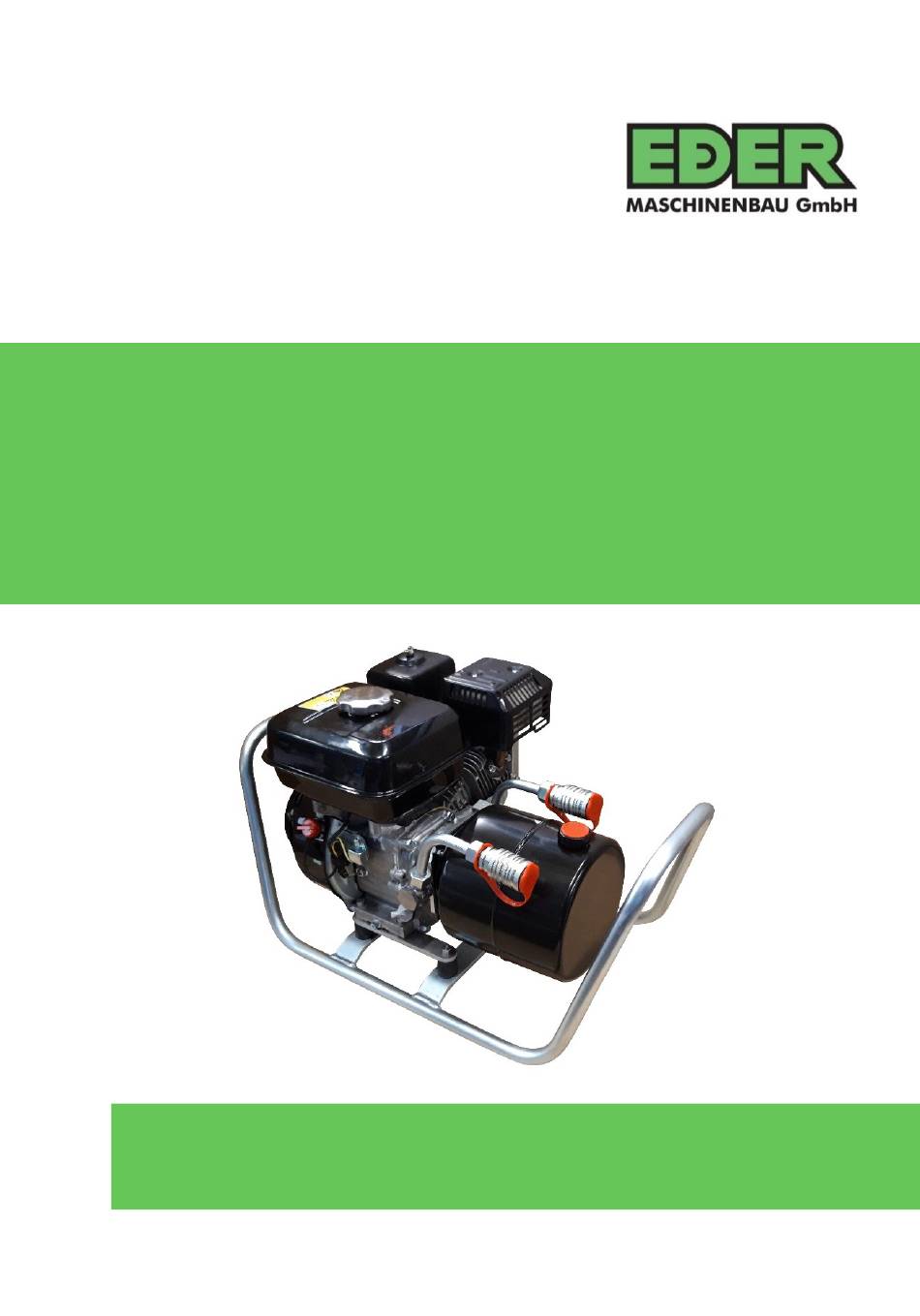

- Page 1 Original 245503_00 | 10.2021 Operating instructions EDER hydraulic unit Schweigerstraße 6 - 38302 Wolfenbüttel - Germany...
- Page 2 Warranty ............................6 Declaration of conformity ....................... 7 Dear customer, thank you for choosing a quality product from Eder Maschinenbau GmbH. For correct use and to prevent accidents, please read the operating instructions carefully. Ignoring the safety instructions can lead to serious injuries!
- Page 3 30 kg Oil stream 14l min-1 Oil pressure Max. 150 bar For detailed technical data on the engine and its maintenance, please read and observe the manufacturer's separate operating and maintenance instructions. 245503_00 | 10.2021 EDER hydraulic power unit 3...
- Page 4 Application area The EDER hydraulic power unit EHA150 is suitable for use at an oil pressure of 150 bar and an oil flow of 14l per minute. The power unit is driven by an economical Honda GX200 4-stroke petrol engine with an output of 4.3 kW (5.8 hp). The unit is built into a carrying frame and can thus be transported by one or two persons with its low weight of approx.
- Page 5 Only original spare parts from EDER Maschinenbau GmbH or the engine manufacturer are to be used as replacements for defective parts! Recycling The EDER splitting unit contains oils/greases and must be disposed of by a recycling company. 245503_00 | 10.2021 EDER hydraulic power unit 5...
- Page 6 Spare parts Only use original spare parts from EDER Maschinenbau GmbH. Spare parts lists can be downloaded from the following address: www.eder-maschinenbau.de/produkte/ersatzteile Warranty For private users the warranty period is 24 months and for commercial use 12 months. First of all, the seller must always be given the opportunity for subsequent performance within a reasonable period of time.
- Page 7 The manufacturer: EDER Maschinenbau GmbH, Schweigerstraße 6, 38302 Wolfenbüttel, Germany. Herewith declares under its sole responsibility that the product EDER splitting unit, model EHG1, serial number starting from: 0001 MM YY to which this declaration refers, complies with the following standards and normative documents: Directive 2006/42/EC: of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast).
