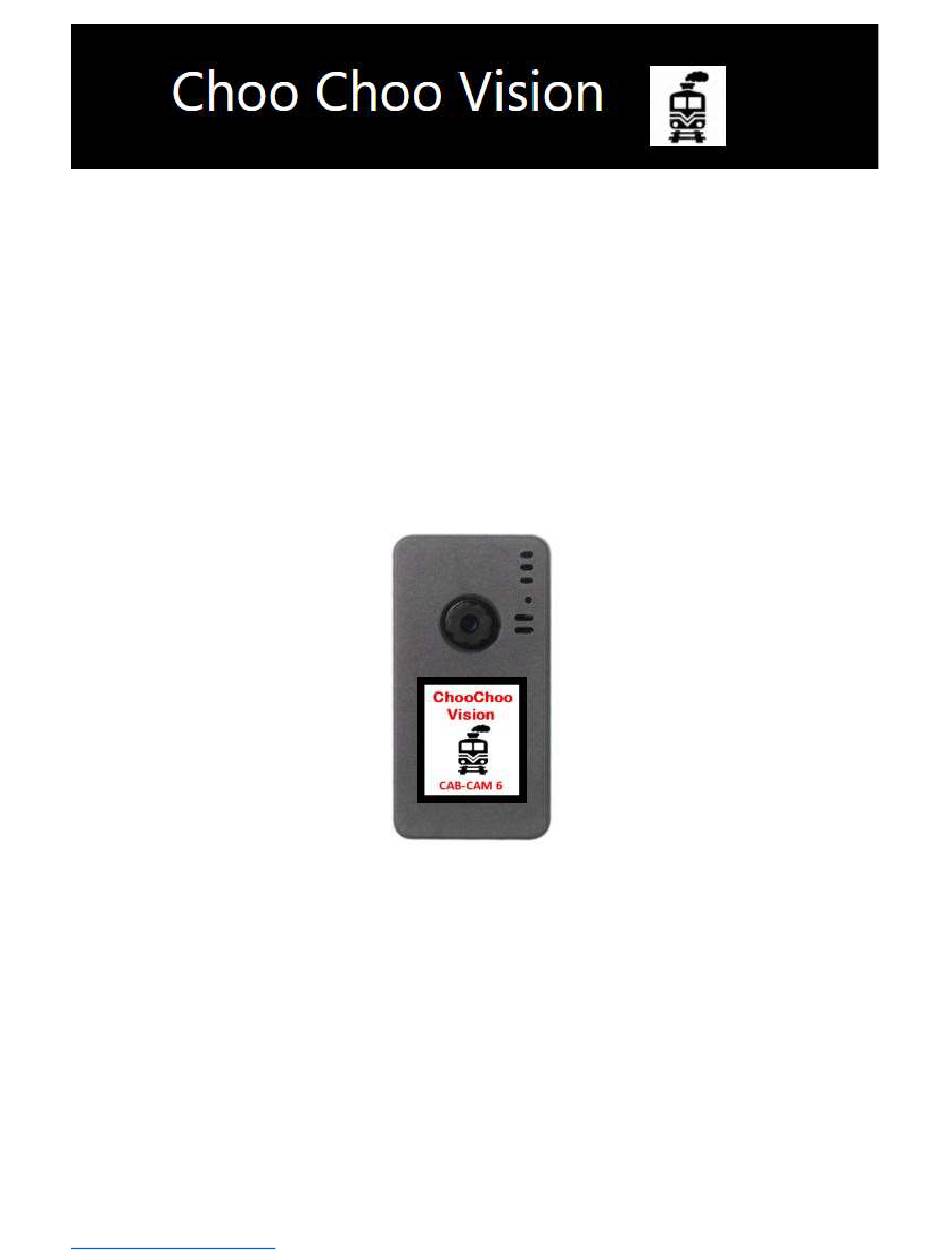

- Page 1 CAB-CAM 6 Lens Installation Guide www.choochoovision.com Released 8/2/2021...
- Page 2 Take photos of your layout, live-stream video over the internet, or host Remote Operations sessions. This instruction guide is specific to the changing a lens for the Choo Choo Vision CAB-CAM 6. www.choochoovision.com...
- Page 3 Blink very 3 seconds: Camera is in charging mode. 4. USB Port (external power) Accepts 5V Power from USB Phone Charger Accepts Choo Choo Vision DCC Power Converter 5. Aux Port Accepts secondary auxiliary magnetic switch for powering off the camera ...
- Page 4 Changing a Lens The basic steps are: Remove the Remove the Remove the Power OFF the back Camera Circuit Board Screws Camera Case Insert Lens Insert the new Remove the Open the Lens into Retainer Lens thru existing Lens Retainer Clip Clip Front Case Check for...
- Page 5 Remove the Existing Lens: Locate the clasp that holds the end of the lens ribbon cable. The lens clasp holds the lens ribbon cable. The lens clasp is hinged towards the bottom of the circuit board. Gently pry the black portion of the lens clasp upwards towards the bottom of the circuit board.
- Page 6 Insert Screws: Insert the two hex-head screws into the camera case. It’s best to first turn the screws counterclockwise until you feel the threads. Then turn the screw clockwise to tighten the screw. Do not over-tighten the screws. Testing the camera installation ...
