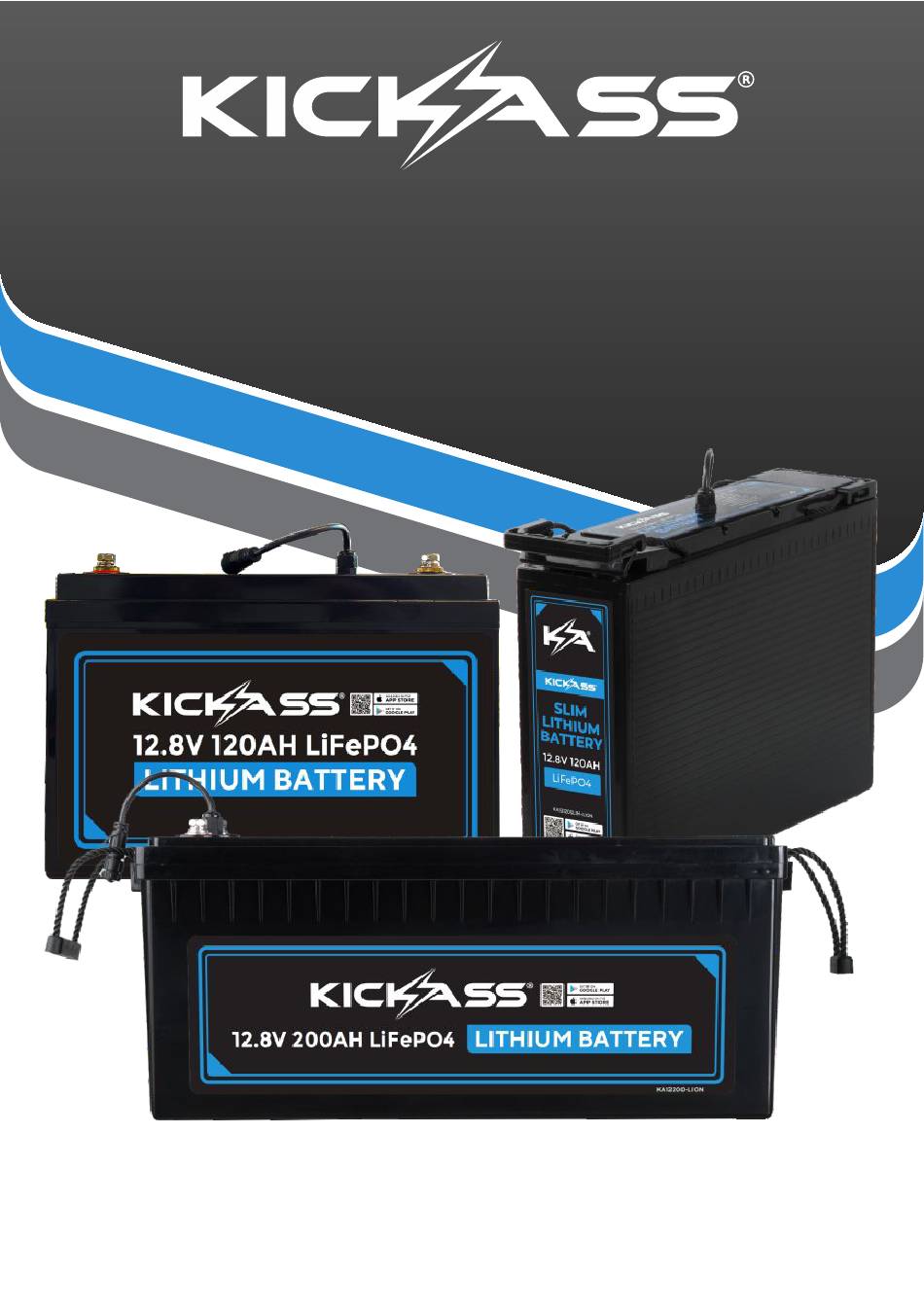

- Page 1 LITHIUM BATTERIES USER MANUAL KA12120-LION | KA12120SLIM-LION | KA12200-LION ©2023, KickAss Products Pty. Ltd. All rights reserved. VER 0.4...
- Page 2 INTRODUCTION Thank you for purchasing a KickAss Lithium Battery. The battery allows you to power all your 12V camping equipment with the following features: Ÿ Lithium Iron Phosphate (LiFePO4) Battery Ÿ Internal Battery Management System (BMS) Ÿ BMS supervised lithium battery protection and alarms Ÿ...
- Page 3 DIMENSIONS KA12120-LION KA12120SLIM-LION...
- Page 4 KA12200-LION...
-
Page 5: Safety Precautions
SAFETY PRECAUTIONS Ÿ The total current draw from the battery must not exceed BMS rated capacity. Ÿ Ensure that the charger used is compatible with lithium batteries. Ÿ Do NOT allow any metal objects to come into contact with the battery terminals. Ÿ... -
Page 6: Battery Specifications
BATTERY SPECIFICATIONS KA12120-LION & KA12120SLIM-LION 120AH LiFePO4 Battery Specifications Nominal Voltage 12.8V Nominal Capacity 120Ah Cycle Life ≥ 2000 Cycles (DOD – 80% under controlled conditions) Bluetooth battery montioring app Optional hardwired remote screen monitoring Charging Specification (Only use chargers with lithium profiles as specified) Battery Charge Temperature 0 ~ 60°C... - Page 7 KA12200-LION 200AH LiFePO4 Battery Specifications Nominal Voltage 12.8V Nominal Capacity 200Ah Cycle Life ≥ 2000 Cycles (DOD – 80% under controlled conditions) Bluetooth battery montioring app Optional hardwired remote screen monitoring Charging Specification (Only use chargers with lithium profiles as specified) Battery Charge Temperature 0 ~ 60°C Normal Charge Voltage CV/CC...
- Page 8 1. CV/CC - Constant Voltage, Constant Current Note: Specifications subject to change without prior notice Discharge Performance at 25°C Temperature effects on capacity at 0.2C Charge Performance at 25°C, 0.2C Cycle life with DOD at 25°C, 0.2C...
- Page 9 BMS CUT OFF FEATURES The KickAss Lithium Batteries are built with a Battery Management System (BMS) inside to protect the battery from overcharging, over discharging, short circuiting and extreme temperature. Overcharge Protection Overcharge Protection Per Cell 3.75 ± 0.1V Overcharge Release Per Cell 3.60 ±...
-
Page 10: Optional Accessories
OPTIONAL ACCESSORIES KickAss Lithium Remote Display Unit RDU Extension Cables SKU: KARDUV1 SKU: KARDUEXT5M KickAss Lithium LiFePO4 Power station SKU: KAJBLITBOX... -
Page 11: Connecting The Battery
(+) terminal and black cable is connected to the negative (-) terminal. If connecting the Remote Display Unit to your KickAss Lithium Battery, connect the black data dongle on the RDU to the black data connector on the battery. - Page 12 When using the lithium battery for the first time or after more then a month in storage, KickAss recommends to fully discharge the battery until the BMS system cuts out. Once discharged, using a lithium compatible charger, fully charge the battery until 100% SOC is achieved.
- Page 13 KICKASS LITHIUM APP The KickAss Lithium Battery has been designed with the latest bluetooth technology to remotely State Of Charge State of Charge monitor your battery from your smartphone. The app features the 100% State Of Charge Ring following: Ÿ...
- Page 14 Outback Proof Gear app from the Google Play store or the Apple iTunes Store. If the app is already downloaded on your device for use with your KickAss Bluetooth fridge, you must ensure that any updates to the app are installed prior to connecting.
- Page 15 KICKASS LITHIUM BMS ALARM MODES The KickAss Lithium Battery is fitted with battery protection features which protect the cells from damage. When these protection features are activated, the following will be displayed on the App and RDU display: LCD SCREEN...
