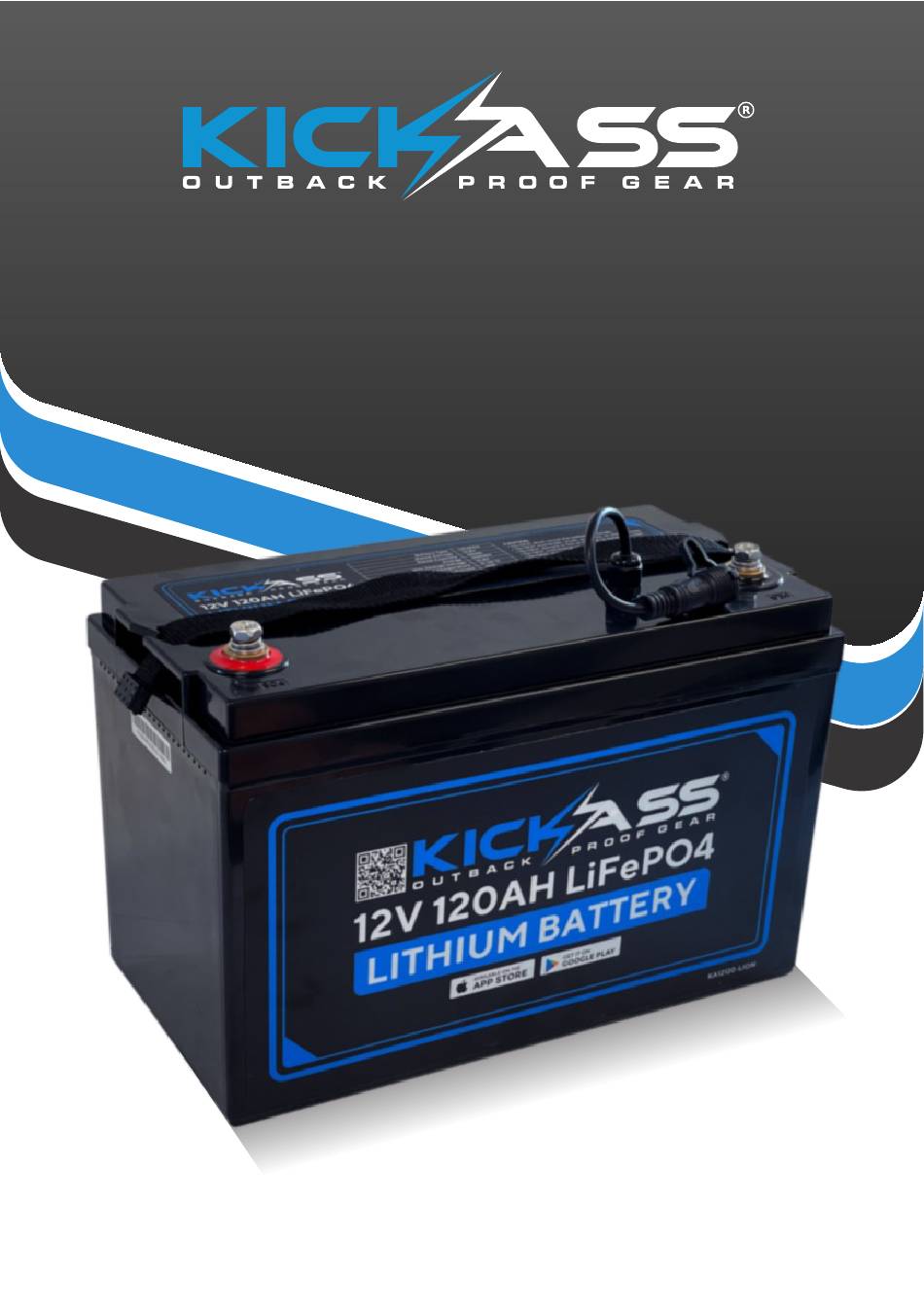

- Page 1 LITHIUM BATTERY USER MANUAL ©2022, KickAss Products Pty. Ltd. All rights reserved. VER 0.15...
-
Page 2: Lithium Battery
INTRODUCTION Thank you for purchasing the KickAss 120Ah Lithium Battery. The battery allows you to power all your 12V camping equipment with the following features: Ÿ 120Ah Lithium Iron Phosphate (LiFePO4) Battery Ÿ 100A internal Battery Management System (BMS) Ÿ... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Ÿ The total current draw from the battery must not exceed 100 Amps. Should the current draw exceed 100 Amps, the internal BMS will shut down Ÿ Ensure that the charger used is compatible with lithium batteries Ÿ Do NOT allow any metal objects to come into contact with the battery terminals. - Page 4 Dimensions Length 329mm Width 217mm Height 171mm Weight ~14.3Kgs Storage Information Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH Self-discharge Rate ≤ 3% Per Month @ 25°C 1.
- Page 5 BMS CUT OFF FEATURES The KickAss Lithium Batteries are built with a Battery Management System (BMS) inside to protect the battery from overcharging, over discharging, short circuiting and extreme temperature. Overcharge Protection Overcharge Protection Per Cell 3.75 ± 0.1V Overcharge Release Per Cell 3.60 ±...
-
Page 6: Optional Accessories
OPTIONAL ACCESSORIES KickAss Lithium Remote Display Unit RDU Extension Cables SKU: KARDUDISP SKU: KARDUEXT5M KickAss Lithium LiFePO4 Power station SKU: KAJBLITBOX... -
Page 7: Connecting The Battery
(+) terminal and black cable is connected to the negative (-) terminal. If connecting the Remote Display Unit to your KickAss Lithium Battery, connect the black data dongle on the RDU to the black data connector on the battery. - Page 8 When using the lithium battery for the first time or after more then a month in storage, KickAss recommends to fully discharge the battery until the BMS system cuts out. Once discharged, using a lithium compatible charger, fully charge the battery until 100% SOC is achieved.
- Page 9 KICKASS LITHIUM APP The KickAss Lithium Battery has been designed with the latest bluetooth technology to remotely State Of Charge State of Charge monitor your battery from your smartphone. The app features the 100% State Of Charge Ring following: Ÿ...
- Page 10 Outback Proof Gear app from the Google Play store or the Apple iTunes Store. If the app is already downloaded on your device for use with your KickAss Bluetooth fridge, you must ensure that any updates to the app are installed prior to connecting.
- Page 11 KICKASS LITHIUM BMS ALARM MODES The KickAss Lithium Battery is fitted with battery protection features which protect the cells from damage. When these protection features are activated, the following will be displayed on the App and RDU display: LCD SCREEN...
