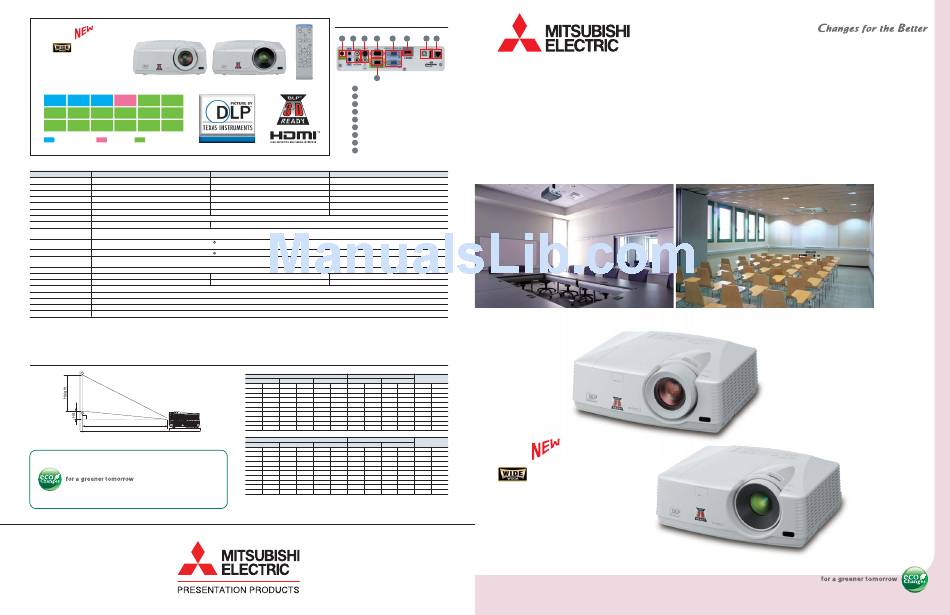

Mitsubishi Electric XD550U Specifications

WD570U
XD560U
XD550U
WD570U
Brilliant Color Wall 10W USB / LAN
Remote
Color TM Enhancer Screen Speaker Display Desktop
Stand-by Computer- Direct Long-life
Audio Mix free Visual PA
Audio Power Off Lamp
Presentations
Low
Top Loading LAN Closed Low
HDMI
Stand-by
Lamp (RJ-45) Caption Fan Noise
Power
Picture Performance Presentation User-friendly
Specifications
Model WD570U
Display technology 0.65" 1-Chip DMD
Resolution 1280 × 800 (Total 1,024,000 pixels)
Brightness 3500lm
Contrast ratio 3000 : 1
Picture size 40" – 300"
Throw ratio 1.5 – 2.3
Source lamp Normal Mode: 230W (Shut Off Time: 3000hrs), Low Mode: 190W (Shut Off Time: 6000hrs)
PC compatibility
1280 × 800 – 1600 × 1200, 1080p Sync on Green available
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Video compatibility
1080i/p (1125i/p 50Hz)
RGB; mini D-sub 15pin × 2 Audio; Stereo mini jack ( 3.5mm) × 2 (one for PC1, another one for PC2)
Input terminals
Video Audio; RCA jack (L/R) × 1
Digital; HDMI × 1
Output terminals RGB; mini D-sub 15pin × 1 Audio; Stereo mini jack ( 3.5mm) × 1
SERIAL; mini D-sub 9pin × 1 (RS232C) LAN (RJ-45); × 1 (Projector control, LAN Display)
Communication terminal
USB type-B; USB Display
Audio speaker 10W Mono
Dimensions (W x H x D) 12.8" x 4.4" x 10.2"
Weight
8.38 lbs
Power requirements AC 100 - 240V, 50/60Hz
Optional lamp VLT-XD560LP
Included accessories Soft carrying bag, Remote control, Power cable, VGA(D-sub) cable, User-Manual (CD-ROM), Safety manual, Lens Cap, Lamp replacement attachment
Optional accessories Ceiling mount (PROJ-UCM-PRO2), Hard shell case (DKT1-ATAC)
Warranty 3-Years Parts/Labor, 3-Years Express Replacement Assistance, 1-Year or 500 hours lamp warranty (whichever comes first)
• Compliance with ISO21118-2005
Varies depended on condition:
• Lamp life specification is an estimate based on verification under proper conditions and is not the duration of the warranty. Lamp will shut-off automatically when usage reaches the specified estimated maximum lamp hours.
Service life may vary widely depending on usage and operating environment and conditions, as well as users' adherence to the maintenance and cleaning procedures provided in the user manual.
• HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
• All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
Screen Size and Projection Distance
Side view
WD570U
XD560U
XD550U
Projection distance ( L )
The above numbers are approximate, and may be slightly different from the actual measurements.
Eco Changes is the Mitsubishi Electric
Group's environmental statement, and
expresses the Group's stance on
environmental management. Through a
wide range of businesses, we are helping
contribute to the realization of a
sustainable society.
MITSUBISHI ELECTRIC
VISUAL SOLUTIONS AMERICA
Presentation Products Division
Phone: 888.307.0349
www.mitsubishi-presentations.com
LIT500SERIES
Input and Output Terminals
(WD380U-EST/ XD360U-EST)
1 2 3 4 6
5
XD560U/XD550U
1 Audio output
2 Audio input
S-Video/Video
3
4 Serial RS-232C
5 Monitor output
6 PC/Component video input
HDMI
7
8 USB
9 LAN (RJ-45)
XD560U XD550U
0.55" 1-Chip DMD 0.55" 1-Chip DMD
1024 × 768 (Total 786,432 pixels) 1024 × 768 (Total 786,432 pixels)
3500lm 3000lm
3000 : 1 3000 : 1
40" – 300" 40" – 300"
1.4 – 2.3 1.4 – 2.3
1024 × 768 – 1600 × 1200, 1080p Sync on Green available
Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i/p (1125i/p 60Hz)
Video; RCA × 1 + S-VIDEO × 1
USB type-A; Wireless Display, Computer-free Presentation
12.8" x 4.4" x 10.2" 12.8" x 4.4" x 10.2"
7.7 lbs 7.7 lbs
Screen size chart (WD570U)
Screen (16 : 10) Distance from screen (L)
Diagonal size Width (W) Height (H) Shortest (Wide) Longest (Tele)
inch cm inch cm inch cm inch m inch
40 102 34 86 21 54 49 1.2 75
60 152 51 129 32 81 74 1.9 114
80 203 68 172 42 108 99 2.5 152
100 254 85 215 53 135 124 3.2 191
120 305 102 258 64 162 150 3.8 229
150 381 127 323 79 202 188 4.8 287
200 508 170 431 106 269 251 6.4 384
250 635 212 538 132 337 314 8.0 —
300 762 254 646 159 404 377 9.6 —
Screen size chart (XD560U/XD550U)
Screen (4 : 3) Distance from screen (L)
Shortest (Wide) Longest (Tele)
Diagonal size Width (W) Height (H)
inch cm inch cm inch cm inch m inch
40 102 32 81 24 61 45 1.1 73
60 152 48 122 36 91 67 1.7 110
80 203 64 163 48 122 90 2.3 148
100 254 80 203 60 152 113 2.9 185
120 305 96 244 72 183 136 3.4 222
150 381 120 305 90 229 170 4.3 278
200 508 160 406 120 305 227 5.8 371
250 635 200 508 150 381 284 7.2 —
300 762 240 610 180 457 341 8.7 —
MITSUBISHI ELECTRIC SALES
CANADA, INC.
Display & Imaging Solutions Division
Phone: 905.475.7728
www.mitsubishielectric.ca
New publication, effective June 2011.
Specifications subject to change without notice.
7 8 9
MULTIMEDIA DATA/VIDEO PROJECTORS
A Great Companion for Education or Business
Height projected
image (Hd)
m inch cm
1.9 2.6 7
2.9 4.0 10
3.9 5.3 13
4.8 6.6 17
5.8 7.9 20
7.3 9.9 25
9.7 13.2 34
— 16.6 42
— 19.9 50
Height projected
image (Hd)
m inch cm
1.9 3.6 9
2.8 5.4 14
3.8 7.2 18
WD570U
4.7 9.0 23
5.6 10.8 27
7.1 13.5 34
9.4 18.0 46
— 22.5 57 XD560U
— 27.0 69
XD550U
WD570U
XD560U
XD550U
