MARLINK SmallTrack Assembly Instructions

Motos/quads

In order to pilot with your SmallTrack – security system of tracking by satellite – you will need to fix your bracket

according to the recommendations of this document. In the Dakar 2017 configuration, you will not need antennas

or power cable for your SmallTrack.

This bracket will be provided for free, at the administrative checks.

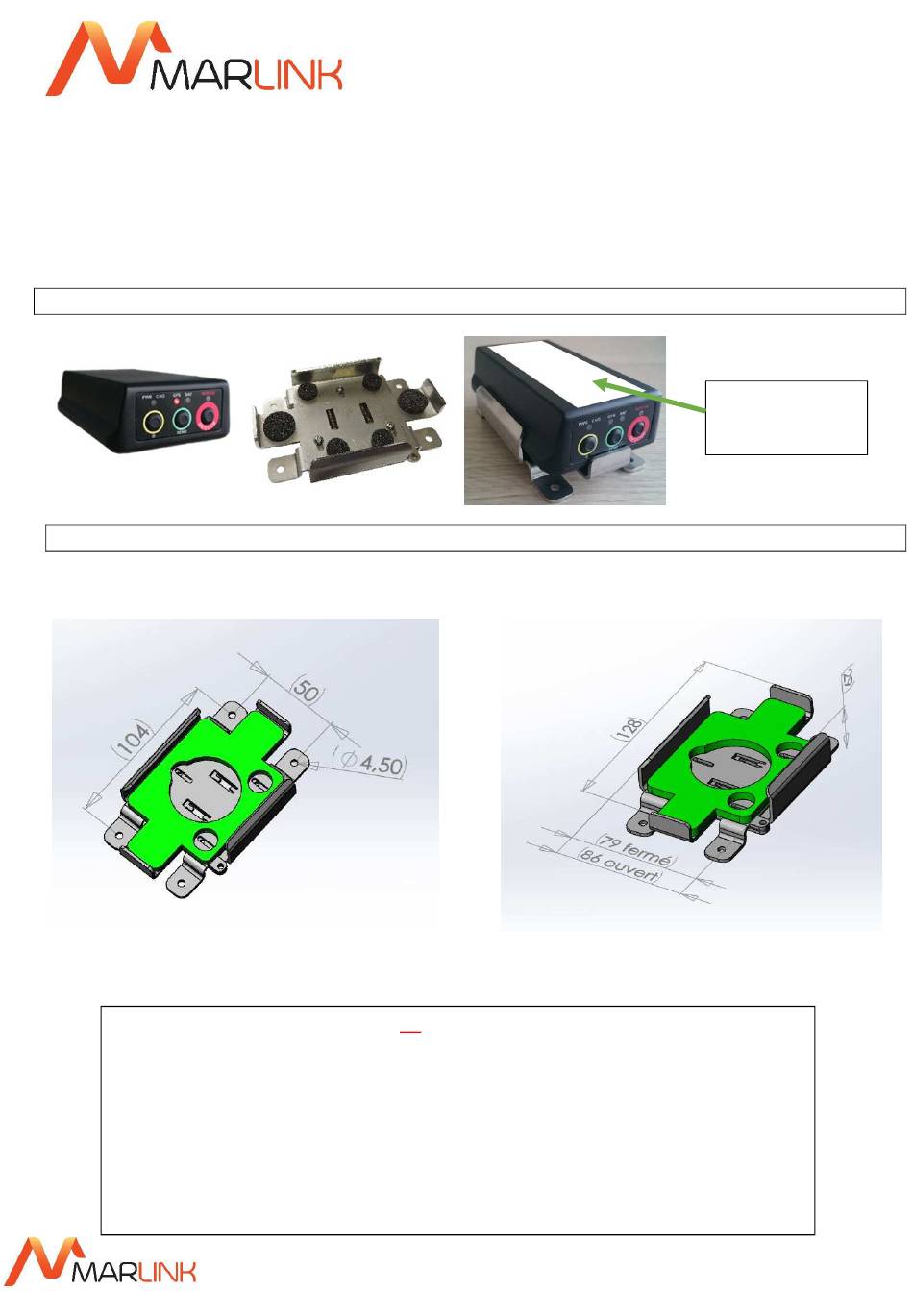

You will find below the dimensions and the drilling patterns. :

The total height of the SmallTrack, when it is installed in the bracket is 50mm (29mm for the bracket only).

The bracket needs to be fixed to the bike or to the quad by the 4 fixations points.

During the bracket fixation it is necessary to remind that:

You need to see the buttons and access them easily

The up side must not be masked, and needs a clear view on the sky (for the internal

antennas)

The bracket must be as horizontal as possible (angle of 0 to 50° maximum)

ASSEMBLY INSTRUCTIONS

SMALLTRACK -

THE SMALLTRACK AND IT'S BRACKET

/!\ IMPORTANT

114/126, avenue d'Alfortville – 94600 CHOISY LE ROI – France - Tél : +33 (0)1 48 84 34 00 Fax : +33 (0)1 48 52 53 54

S.A.S. au capital de 236 400€ - Code TVA FR 26 334 306 172 – Code APE 5912 Z - SIREN 334 306 172 00084 – RC 334 306 172

www.marlink.com - services.events@marlink.com

MOTOS/QUADS

The white zone

indicates the

antenas position.

Table of Contents

Need help?

Do you have a question about the SmallTrack and is the answer not in the manual?

Page 1 MOTOS/QUADS In order to pilot with your SmallTrack – security system of tracking by satellite – you will need to fix your bracket according to the recommendations of this document. In the Dakar 2017 configuration, you will not need antennas or power cable for your SmallTrack.
Page 2 114/126, avenue d’Alfortville – 94600 CHOISY LE ROI – France - Tél : +33 (0)1 48 84 34 00 Fax : +33 (0)1 48 52 53 54 S.A.S. au capital de 236 400€ - Code TVA FR 26 334 306 172 – Code APE 5912 Z - SIREN 334 306 172 00084 – RC 334 306 172 www.marlink.com - services.events@marlink.com...
Page 3 This installation is not conform: the bracket’s fixation angle is over 90°. INTRODUCTION OF THE SMALLTRACK IN IT’S BRACKET A spring system will lock the SmallTrack in the bracket. In order to secure the installation, there is an eyelet of fixation designed to receive a Rilsan type clamp.
