Summary of Contents for Hunter Brunner

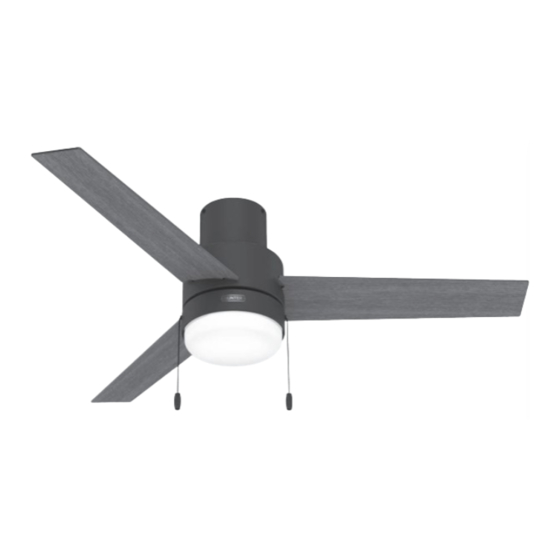

- Page 1 Brunner Installation Manual Model: 51949 Flat Matte Black 51972 Matte Fresh White 52377 Matte Silver Fan weight ±2 lbs: 17.9 lbs (8.1 kg) ©2022 Hunter Fan Co. PG4095 r112822...
- Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those Hunter Pro Tip: parts. The screws below are drawn to scale to make it easier to identify what piece of hardware is needed to install each component.
-
Page 4: Choosing The Right Installation Location
Installing the Ceiling Bracket You have two options for installation. Pick which one works best for your location. Remove any existing bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box. Do this first! -
Page 5: Hanging The Fan
1886 Installing the Top Housing Top Housing Top Housing Screw Adapter Install the top housing screws. These Thread the wires through the top housing. Place the top screws can be found in the housing onto the motor housing so that the holes in the hardware bag. - Page 6 If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a quali ed electrician. You are going to need these: Hunter Pro Tip: Here is how to connect the wires: 4 Wire Nuts (these are in the...
-
Page 7: Installing The Canopy
1886 Installing the Canopy 2 of 3 Canopy Screws Swing the fan up to align the Hold the canopy up with the screw holes canopy screw holes with the aligned. Partially install two canopy screws, mounting holes on the ceiling plate. found in the hardware bag, into the holes opposite the ceiling plate hooks. - Page 8 1886 Assembling the Light Kit 2 of 3 Light Kit Screw Feed the 9-pin plug connector coming Align the keyhole slots in the top of the light kit from the bottom of the motor housing assembly with the partially installed assembly Partially install two light kit through the center hole in the light kit screws.
- Page 9 1886 Installing the Pull Chains The fan pull chain controls the speed: from high to off. Repeat x2 Remove and discard the plastic connectors from the ends of the short pull chain. Feed the pull chains from the fan switch and the light switch down through the holes in the upper switch housing as shown.
-
Page 10: Troubleshooting
Hunter instructions, accidental damage caused by the fan owner or related parties, Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. modifications to the fan, improper or incorrectly performed maintenance or repair,...
