Summary of Contents for Advanced Solutions P-410

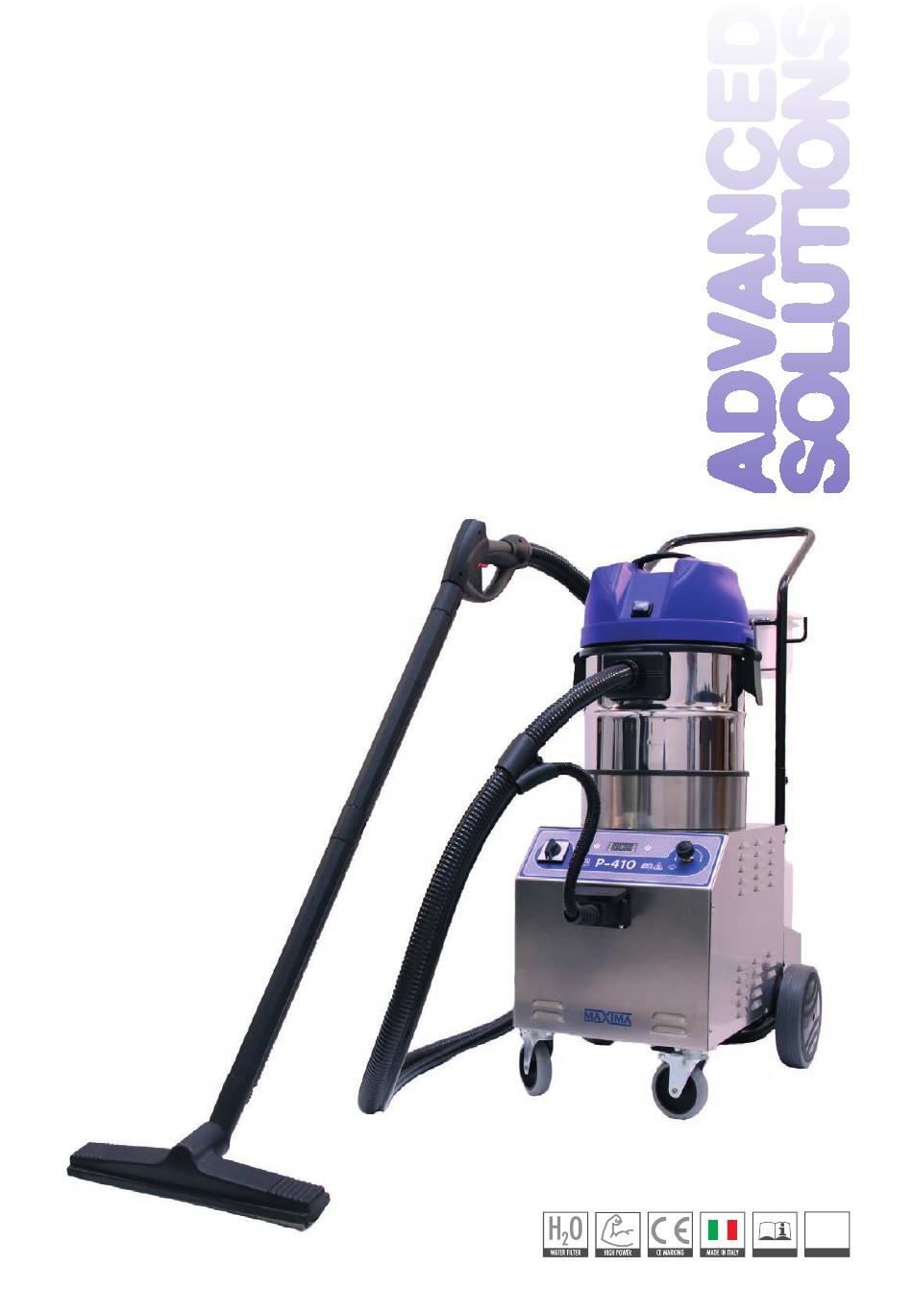

- Page 1 P-410 USE MANUAL ISTRUCTION LANGUAGE...
- Page 2 SAFETY RULES AND CAUTIONS • The plug must be removed from the socket-outlet before cleaning or maintaining the appliance and after use. • The appliance shall not be left unattended while it is connected to the supply mains. • Do not use the machine without the lower drum. •...
-
Page 3: Table Of Contents
INTRODUCTION WE THANK YOU FOR CHOOSING THIS PRODUCT MADE IN ITALY. P-410 IS THE RESULT OF A CAREFUL SEARCH CARRIED OUT BY PEOPLE KEEN ON CLEAN AND INNOVATION AND IT REPRESENTS THE NEWEST PRODUCT AMONG THE NEW-GENERATION MULTIFUNCTION DEVICES. P-410 CARRIES OUT THE FUNCTIONS OF 4 DIFFERENT HOUSEHOLD APPLIANCES: IT SUCKS, WASHES, DRIES AND SANITIZES. -
Page 4: Description Of The Machine
DESCRIPTION OF THE MACHINE Front part Upper cover Vacuum switch Closing hook Vacuum sleeve Lower drum Power cord Steam adjusting knob Main switch Steam plug Wheels with brake Rear part Removable handlebar Cable reel and Tool container hose holder Silicone hose Vacuum cleaner connectors electric socket... -
Page 5: Machine Operations
MACHINE OPERATION STEP: VACUUM CLEANER LOWER DRUM FILLING • Disconnect the power cord of the vacuum cleaner from the 220V socket of the machine (fi g. 1) • Unhook the closing hooks; Lift the upper cover (fi g.2); • • Pour about 2 liters of clean water into the lower drum;... -
Page 6: Rd Step: Turning On
LIST OF THE PANELS FUNCTIONS A. Main switch B. Detergent quantity adjustment C. Display D. Water / detergent function selector and water quantity adjustment E. Adjustment knob +/- output steam STEP: TURNING ON • Connect the power cord of the vacuum cleaner to the machine (fi g. -
Page 7: Step: Hose Connection
STEP: HOSE CONNECTION To connect the steam plug, lift the fl ap that covers the socket (fi g.8), • insert the plug fully, then close the fl ap. To disconnect the plug, lift the cover, press the red cursor and pull the plug. For the suction intake (fi g.9) it is suffi... -
Page 8: Accessories Equipped With Machine
ACCESSORIES SUPPLIED WITH THE MACHINE 1. HANDLE WITH HOSE A. Detergent / water jet switch B. Suction button C. Steam button D. Steam button lock E. Handle F. Suction intake G. Steam plug MAINTENANCE OF THE HOSE After every use we recommend rinsing the hose by sucking one/ two litres of water from a basin to prevent the dirt from settling on the internal walls. -
Page 9: 150 Mm. Nozzle
4. 150 MM. NOZZLE It is a brush on which the following fi ttings can be assembled: 4A. WINDOW CLEANER FITTING Ideal to clean “English” windows. For a correct use we recommend warming the accessory by keeping the steam push button pressed for some seconds and steaming in the air. -
Page 10: Routing Maintenance
ROUTINE MAINTENANCE CLEANING THE FILTERS The constant and correct cleaning of the fi lters helps to keep the appliance clean and in perfect effi ciency. Observe the following instructions: • Disconnect the power cord of the vacuum cleaner from the machine's 220V socket •... -
Page 11: Optional
OPTIONAL 1. KIT SANITATION MAXI Equipped with: -5m fl exible steam hose -aluminum steam extensions -steam mop base with joint -ultra microfi ber mop -nebulizer lance with tank 2. TURBOVAPOR Excellent for all types of fl oors, both dry and steam use, it is a vacuum- steam electric nozzle, battery powered with interchangeable rollers. -
Page 12: Troubleshooting
TROUBLESHOOTING Sometimes problems arise from causes which can be easily removed by carrying out simple checks. PROB LE M CAUSE SOLUT ION · Clean the filter · The filter is dirty or clogged · Disconnect the hose and remove dirt Insufficient suction ·... -
Page 13: After-Sales Assistance
WARRANTY AND TECHNICAL SERVICE TECHNICAL SHEET • Electric absorption : 15 Amp - 3500W • Water tank for steam: 10 L • Suction: 2400 MM • Detergent tank: 5 L • Motor power: 1200 - 1400 WATT • Dirty water tank: 15 L Max size: 79,5 X 46 X 109 CM •... -
Page 14: Spare O-Ring
SPARE O-RING... - Page 16 Genuine Made in Italy.
