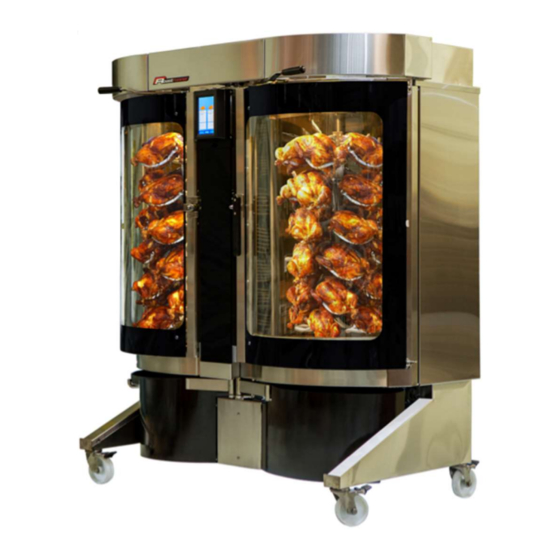

Technobake Roastrunner Manual

Hide thumbs Also See for Roastrunner:

Replacing Door Handle Pin

1. Check main door hinges are tight – tighten lock nut - and door has no

up or down movement.

2. Remove outer door glass.

Take note of mounting hole position

in hinges for when you re refit the

glass.

Holes in hinge

behind the washer

Technobake Pty 11/18 Hinkler Court, Brendale, Qld 07 3205 9055

3. Using replacement handle

and lug, position lug in place

and check it sits flush. There

may be weld or spatter

sitting where the angle

bracket should be that may

need to be filed or grind

away

Table of Contents

Do you have a question about the Roastrunner and is the answer not in the manual?

Page 1 There may be weld or spatter sitting where the angle bracket should be that may need to be filed or grind away Technobake Pty 11/18 Hinkler Court, Brendale, Qld 07 3205 9055...
Page 2 Check again that bracket and hole align then drill second hole with M8 drill. Use 8mm burr if holes are out of alignment Technobake Pty 11/18 Hinkler Court, Brendale, Qld 07 3205 9055...
Page 3 10. Adjust ball latch so it sits touching ball rider plate. Ball rider plate Ball Latch Door handle ear must be past the White ball roller By 1 to 4 mm. Technobake Pty 11/18 Hinkler Court, Brendale, Qld 07 3205 9055...
Page 4 Door switch, check value Top Close; Bottom Close on both sides. Open and close the door slowly to see the value (numbers)move. These values should be above23+v when door is shut. Technobake Pty 11/18 Hinkler Court, Brendale, Qld 07 3205 9055...
