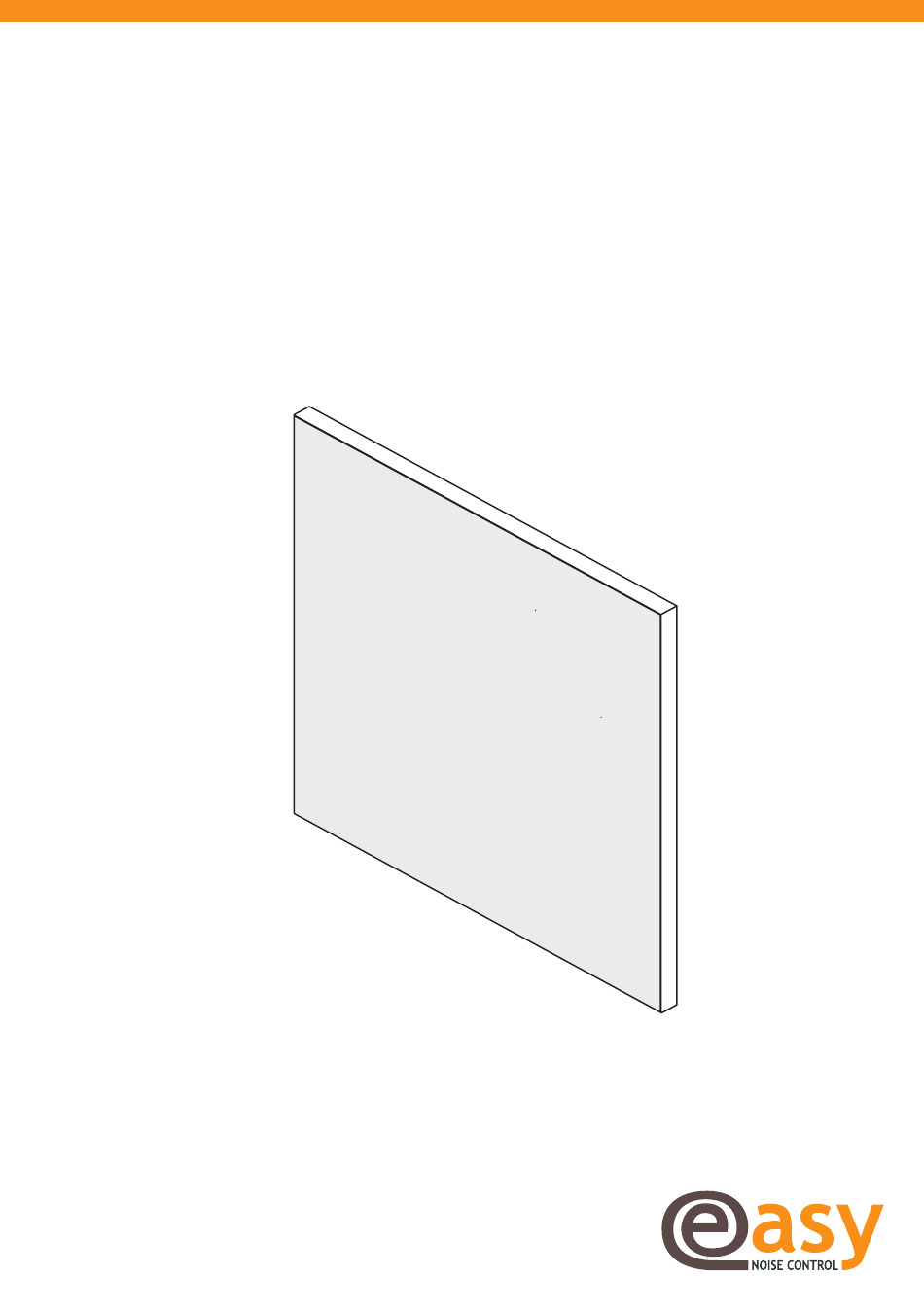

- Page 1 EASYphoto wall panel Installation manual...
- Page 2 General The EASYphoto photo panels consist of an aluminium frame, absorbing polyester wool, a polyester photo canvas and optionally a white shade cloth. The application of the photo panels is the absorption of sound reflections to reduce reverberation in indoor spaces and thus improve the acoustics.
- Page 3 Necessities Flathead screwdriver Optional Cross line laser Pen/pencil Optional Spirit level Power drill Components Frame part Mounting bracket Counter plate Polyester wool sufficient amount Velcro tape sufficient amount Photo canvas Optional: Shade cloth...
- Page 4 Method Connect the frame parts Connect the four frame parts to a quadrangular frame by screwing the mounting brackets with counter plates into the grooves. Make sure the corners are firmly connected.
- Page 5 Place the frame against the wall Place the frame against the wall and mark the holes. Drill holes in the wall and insert the plugs. Then screw the frame onto the wall. Tip: Use a cross line laser or spirit level for aligning the photo panel...
- Page 6 Place the polyester wool Stick the Velcro tape on the wall and place the polyester wool with the soft side against the wall. If you have several pieces of polyester wool, make sure that they are placed tightly together. Tip: Stick the Velcro tape in a cross shape for each panel polyes- ter wool.
- Page 7 Place the photo canvas Place the photo canvas. First push the four corners into the outer groove. Then push the canvas into the frame from the corners towards the middle. Press firmly.
- Page 8 #Weareacoustics This text has been compiled with the utmost care. The same applies to the test results and further certificates. Howe- ver, no rights may be derived from this text and modifications are subject to change. It is not possible to guarantee certain properties or the suitability of our products for a specific application.
