Integrated Circuits Inc.

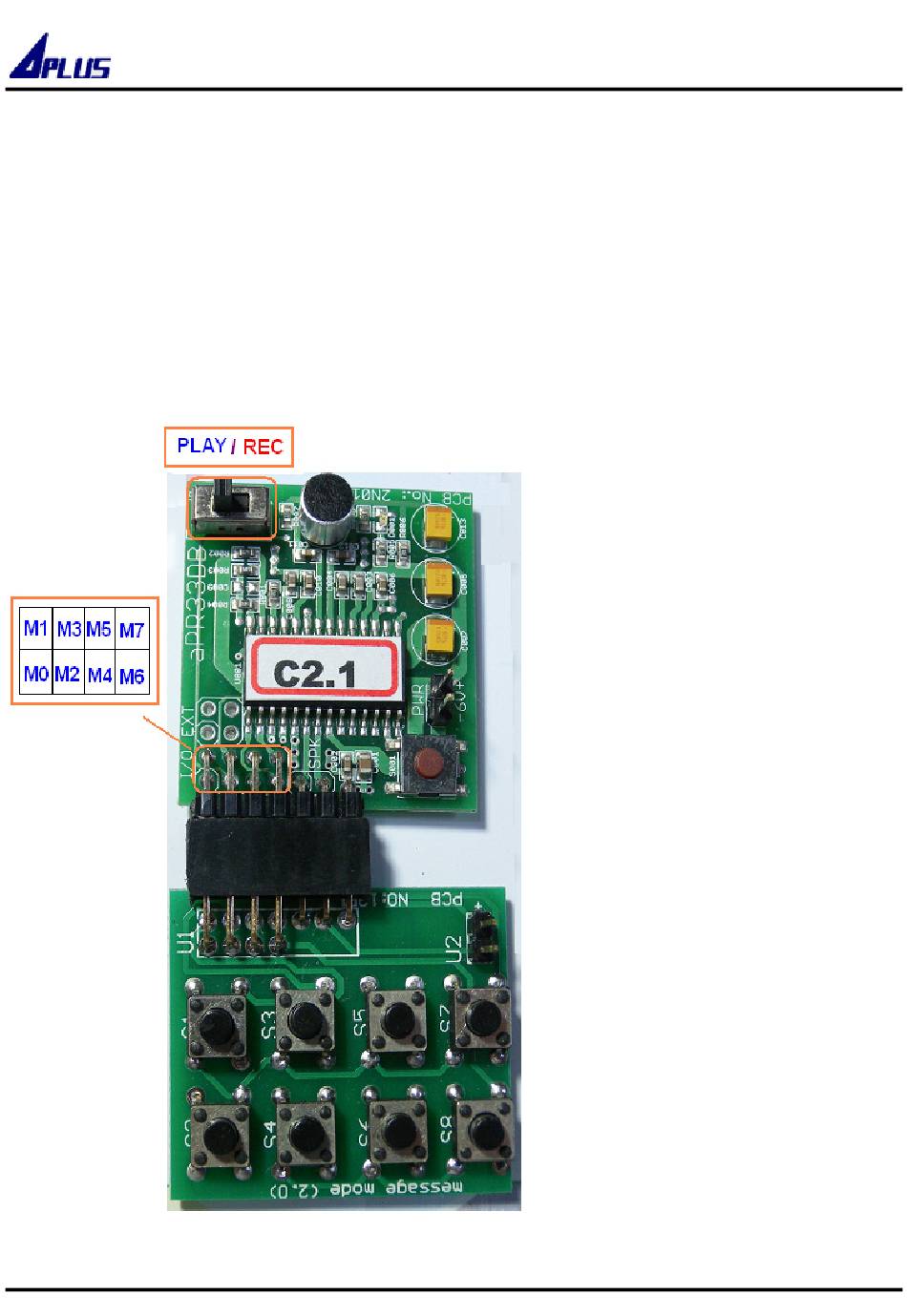

aPR33AxDB-C2.1F (Fixed 1/ 2/ 4/ 8 Message mode)
aPR33AxDB-C2.1F is suitable for aPR33A1 / aPR33A3, 2 chips with supporting Fixed 1/2/4/8
message, 4 modes.
aPR33AxDB –C2.1F Function： ： ： ：
■ ■ ■ ■
Ver 2
Demo Board User Guide
1/3
aPR33AxDB-C2.1F
◆ ◆ ◆ ◆ RECORDING VOICE MESSAGE :
SLIDE SW to REC → Press and
hold TACT SW(S1~S8), hear BEEP
sound with LED on to start REC
through Microphone → Release
TACT SW, hear BEEP BEEP sound
with LED off to complete REC.
◆ PLAY VOICE MESSAGE :
SLIDE SW to PLAY → Press and
leave TACT SW(S1~S8) to play voice
with LED on. After play finished, LED
will off.
