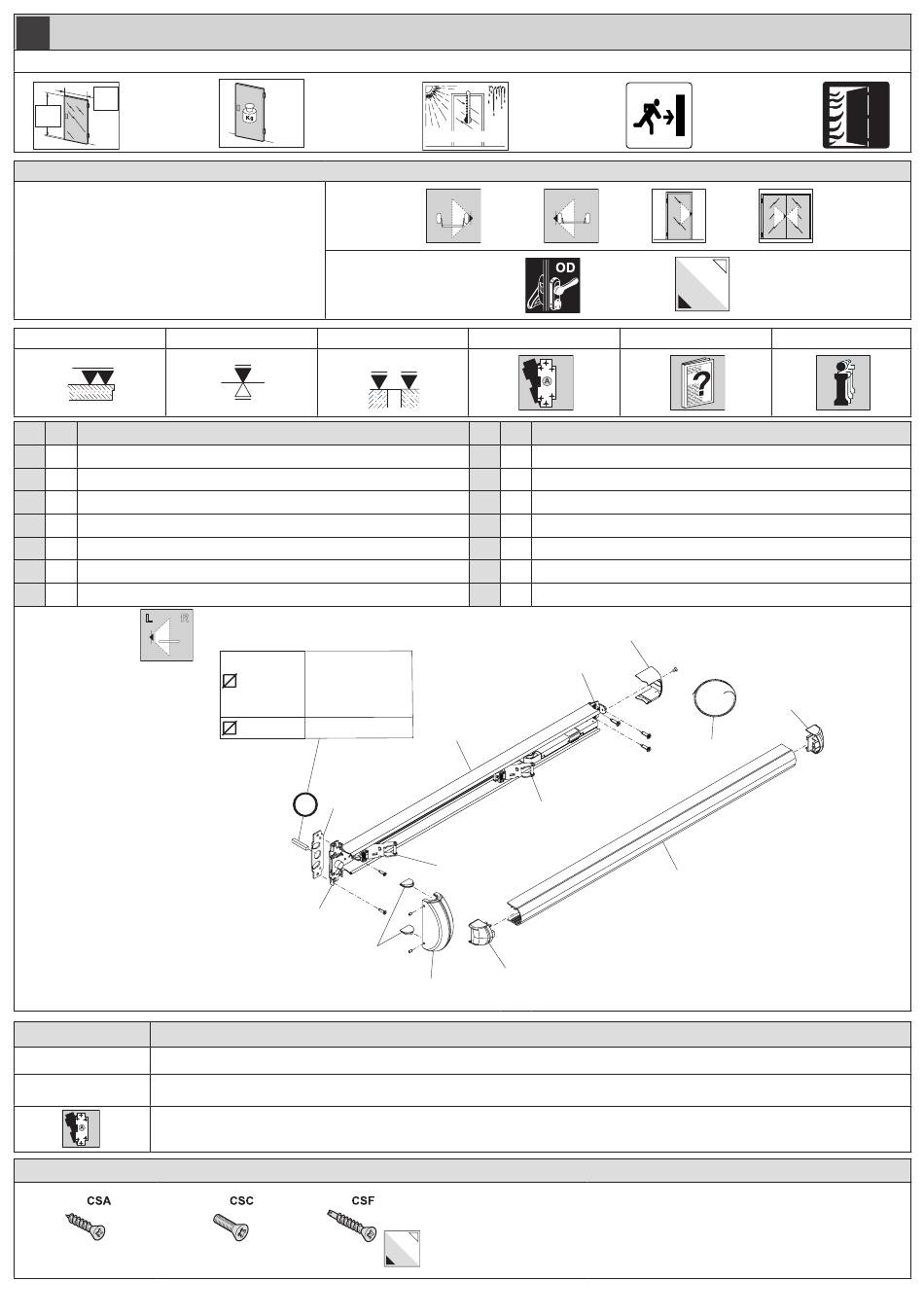

"eFAST TOUCH MORTICE" SERIES PANIC EXIT DEVICE - Installer's instruction sheet
EN
Item 59751 - To be installed with a panic function mortice lock.
Limit values prescribed by the UNI EN 1125 standard with extension. This product is certified for use on standard and/or fire doors.
Max.
1,6 m
Max.
3,5 m
Right-handed door (R).
Left-handed door (L).
Single leaf door (1).
Double leaf door (2).
Use of outside access devices (OD).
Optional part supplied on request (OPT).
Check flatness
Ref. Q.ty
Main case
1
1
Rear support
2
1
Front bracket
3
1
Rear bracket
4
1
Connecting rod
5
1
Main cover
6
1
Main cover plug
7
2
L
Ref.
A
Main case
D
Rear support
The templates must be cut out and are included in the instruction sheet on page 11.
Q.ty = 7
> 200
(400 max)
Place
COMPONENTS
07083-5X-0
= 9 mm
07083-75-0
07083-70-0
= 8 mm 07085-76-0
13
8
1
7
Small hardware items used
Q.ty = 5
+50 °C
-10
SYMBOLS
L
R R
L L
Align
Use template
Ref. Q.ty
Spindle
8
1
Secondary cover
9
1
Bar
10
1
Rear bar plug
11
1
Front bar plug
12
1
Plate
13
1
Connecting cable
14
1
5
4
3
12
6
Templates used to position:
O
P
T
1
R
1
O
P
T
See notes
COMPONENTS
9
2
14
10
2
See instructions
11

Advertisement

loading
Need help?

Need help?

Do you have a question about the eFAST TOUCH MORTICE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CISA eFAST TOUCH MORTICE Series
