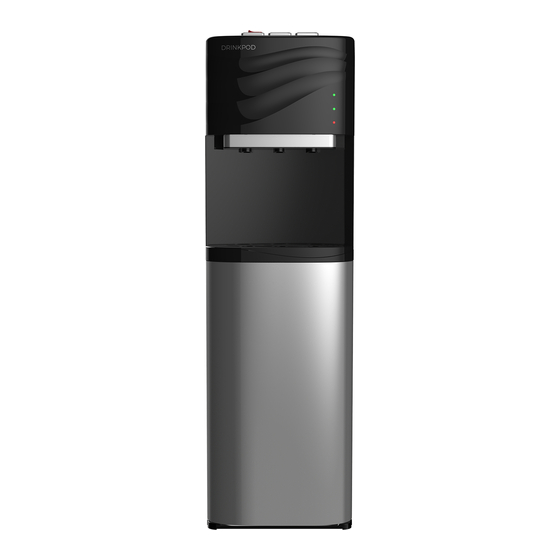

- Page 1 Use & Care Guide English Drinkpod 100 Series Freestanding Purifier·Dispenser Model: SW5K Customer Assistance 1-844-374-6576 www.drinkpod.com Drinkpod and the Drinkpod logo are the registered trademarks of Drinkpod, LLC. All Rights Reserved.
-
Page 3: Table Of Contents
Issue #5: My Water 100 Series’s Hot Mode isn’t hot. Issue #6: My Water 100 Series’s Cold Mode isn’t cold. 17 Issue #7: My Water 100 Series is beeping or lights are flashing. 17 Issue #8: My Water 100 Series is leaking water. -
Page 4: Important Safety Instructions
10. Do not install the machine in a location exposed to direct sunlight. Never store or expose your Drinkpod 100 Series in an environment less than 32°F. 12. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 5 Getting To Know Your Drinkpod 100 Series GETTING TO KNOW YOUR DRINKPOD 100 SERIES Getting To Know Your Drinkpod 100 Series 1...
- Page 6 Getting To Know Your Drinkpod 100 Series Located behind panel Located behind coils Getting To Know Your Drinkpod 100 Series 2...
- Page 7 Filters - Assorted filter cartridges. See more in “Filter Details” on page Leak Detection Sensor - Detects internal leaks. If triggered, disables water flow. Cold Mode Power Switch - Toggles power for water cooling system. Getting To Know Your Drinkpod 100 Series 3...
-
Page 8: Filters
Drain Port - Port for draining water for vacations, storage, moving, etc. Accessory Output Port - Port to connect accessory appliances (i.e. icemaker). Source Input Port - Port that connects to water source to provide water to 100 Series. Filters Shown above is the correct order (first four) each filter should always be installed in your Drinkpod 100 Series. - Page 9 This is followed by a UF membrane (2nd stage) that greatly reduces sub micron contaminants, like bacteria, colloids, and large organic molecules, down to 0.02 microns. The use of this filter is not recommended for this appliance. Getting To Know Your Drinkpod 100 Series 5...
-
Page 10: Technical Specifications
Lifespan: 1425 gal / 12 - 18 months Pod Filter #4 Details Post Carbon Block Material: Coconut Based Flow Rate: 0.79 gpm Pore Size: 7 microns Lifespan: 950 gal / 6 - 12 months Getting To Know Your Drinkpod 100 Series 6... - Page 11 Drinkpod 100 Series. These issues may include, but are not limited to: dry heating, low flow, water sloshing, etc. Drinkpod are in now way obligated to provide technical support, warranty service or replacement for any parts or components not included with your 100 Series, excluding OEM replacement filters.This guide will explain how to use, maintain, and troubleshoot your new...
-
Page 12: Powering On/Off Your 100 Series
100 Series prior to using the appliance. Powering On/Off Your 100 Series Be sure to never plug in your 100 Series, or power on either temperature mode before you’ve connected a proper water source, and enabled water flow. - Page 13 Polishing Scrub you can skip ahead to “Step 9” on page 5. Disconnect the tubing running between our 100 Series’s Source Input Port 1/4 in. Quick Connect Shutoff Valve you just shutoff, and place end of the tubing into the container to catch any water that drains back.
- Page 14 14. Place your container below the center dispenser one last time, and press the Ambient Mode Button to repressurize the system. Once water is steadily dispensing, you can stop. 15. Finally, plug 110v Power Cord back into the electrical outlet. You’re finished! Maintaining Your Drinkpod 100 Series 10...
- Page 15 Storing & Relocating Your Drinkpod 100 Series At some point, you may need to store or relocate your Drinkpod 100 Series. Should one of these situations be the case for you, below are a few simple steps to prevent any damage from occuring.
- Page 16 Leaving Your Drinkpod 100 Series (Vacation) If you plan to take a trip, and leave your Drinkpod 100 Series for more than a few days, We highly recommend following the steps below prior to leaving. This will help prevent any damage from occuring, the rare possibility of leaks, and returning to poor tasting water.
- Page 17 Drinkpod 100 Series backwards (no more than 45 degrees), allowing the water to drain from the appliance. 11. Once you’ve drained as much water as will come out from your 100 Series, reinsert the blue silicon drain plug, and reattach the transparent plastic cap and screw.
- Page 18 Troubleshooting Your Drinkpod 100 Series TROUBLESHOOTING YOUR DRINKPOD 100 SERIES Troubleshooting Your Drinkpod 100 Series 14...
-
Page 19: Issue #2: My Filter Lifespan Seems Very Short
Solution 2: Something may be restrictng water flow. Is a section of tubing pinched? Are all of the valves between your water source and the 100 Series open as far as they’ll go? Solution 3: Your filters may need replaced. Filters will slowly become more clogged by the contaminants they filter out, slowing water flow. - Page 20 Troubleshooting Your Drinkpod 100 Series Issue #4: My Drinkpod 100 Series’s Hot Mode won’t dispense. Solution 1: Slide Child Safety Switch to unlock Hot Mode Button before pressing the button. This is a two-step child protection sequence. Solution 2: Check water source line is turned on at source connection and water is flowing into the of 100 Series.
- Page 21 Issue #7: My Drinkpod 100 Series is beeping or lights are flashing. Solution 1: When your Drinkpod 100 Series’s beeping and/or the status lights are blinking (sometimes all 3 or just one red light), it means that the Leak Detection Sensor detected water and shut down the system as a pre-caution against flooding.
- Page 22 Troubleshooting Your Drinkpod 100 Series Issue #8: My Drinkpod 100 Series is leaking water. Solution 1: Follow the leak to its source. There may be a section of tubing that has a loose connection that requires reattaching. Check by pushing tube inwards till it stops, then pulling outward (if Quick Connect/has sleeve) to ensure it is properly gripping.
-
Page 23: Notes
Notes NOTES Notes 19... - Page 24 Notes Notes 20...
-
Page 25: Warranty
Damage to or failure of this appliance resulting from installation not performed by Drinkpod authorized service agents, including installation that was not in accord with electrical, gas or plumbing codes. - Page 26 ® Customer Care Hotline For technical support, warranty repair service, or to order replacement parts. 1-844-374-6576 www.drinkpod.com S/N STICKER GOES HERE...
