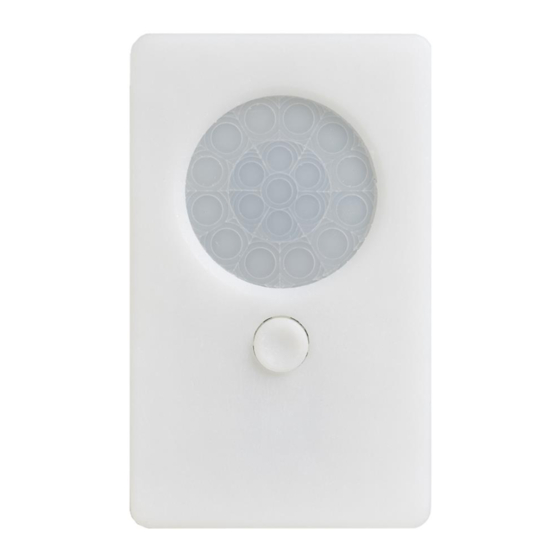

Acuity Brands sensorswitch SFR Series Programming Instructions

Occupancy sensor

PROGRAMMING INSTRUCTIONS

PLEASE READ ALL 4 STEPS BEFORE PROGRAMMING

Enter a specific programming function by pressing button the number of times as

the desired function number from the tables on the reverse (e.g., press twice for

function 2, Occupancy Time Delay).

The selected function's current setting will then be read out in a sequence of LED

flashes (e.g., five flashes for 10 min). To change setting, proceed to step 3 before

sequence repeats 3 times.

While the sensor is flashing back current setting, interrupt it by pressing button the

number of times for the new desired setting as indicated in the particular function's

detailed table (e.g., press seven times for 15 min). Sensor will begin to flash new

setting as confirmation.

Once new setting has flashed back three times, sensor will exit programming

mode and LED will revert to flashing when occupancy is detected.

Note: To exit programming mode without saving or to change to a different function, wait

for blink back sequence to repeat 3 times then return to step 1.

OCCUPANCY SENSOR

Technical Support: 1.800.727.7483

DOC# IC1-002

Date Code 1611
