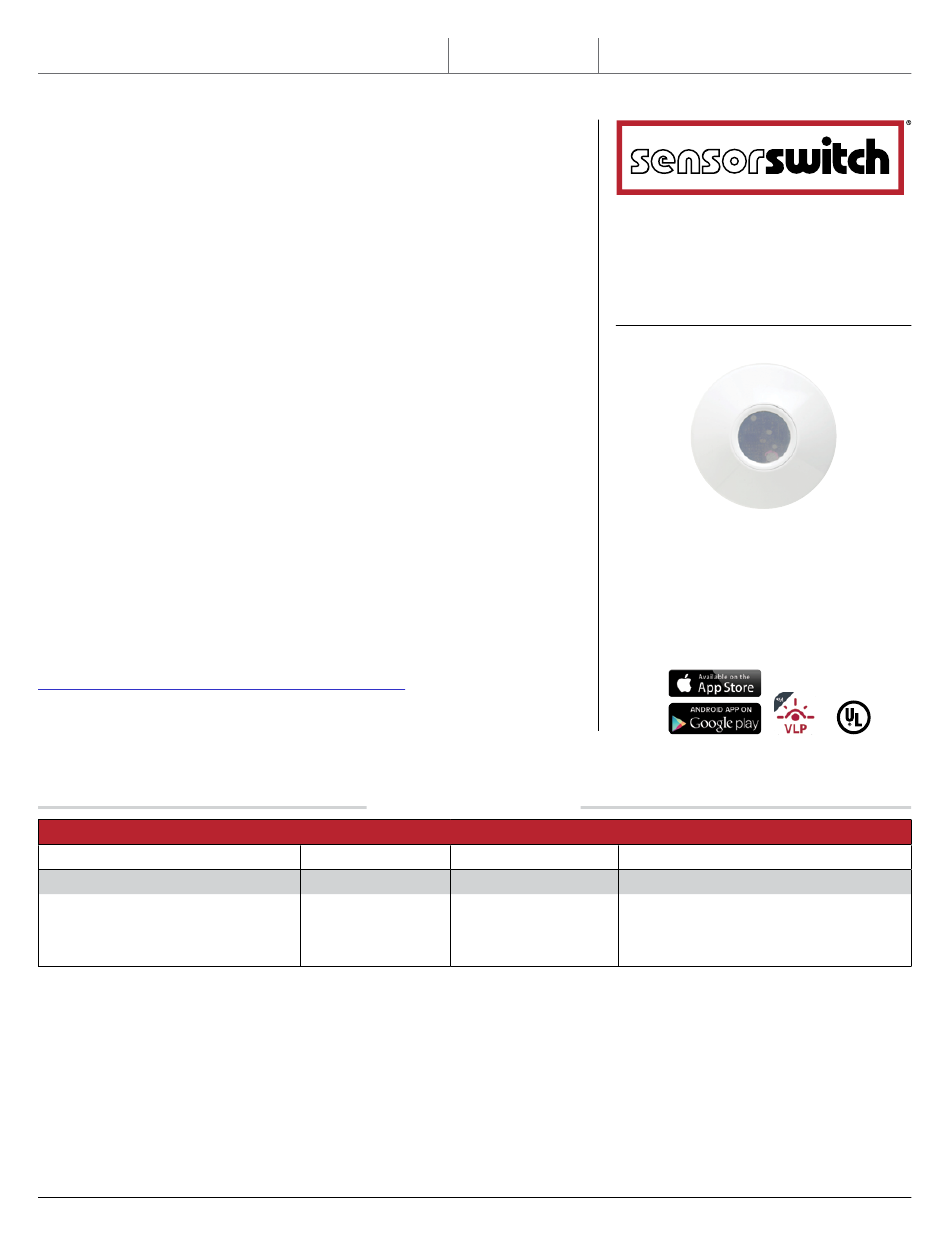

OVERVIEW

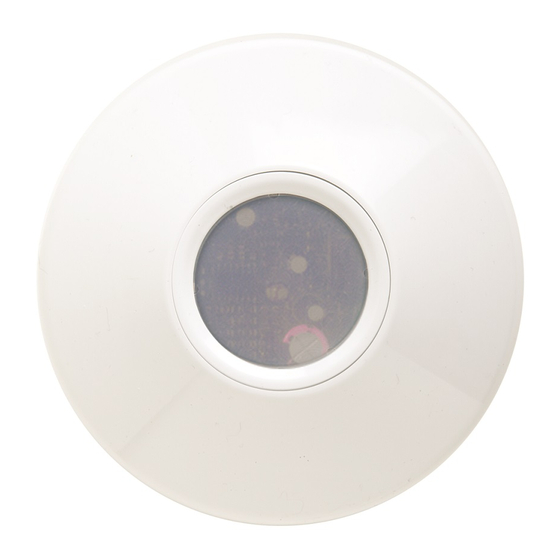

The CM-ADC Series of Automatic Dimming Control sensors provide continuous control of
dimmable ballasts for daylight harvesting applications. Ideal for public spaces with windows like
vestibules, corridors, or bathrooms; the CM-ADC works by monitoring daylight conditions in a
room, then controlling a 0-10 VDC dimmable ballast so as to insure that adequate lighting levels
are maintained. To add full On/Off switching to the dimming control provided by the CM-ADC,
see the Technical Data Sheet on the CM-PC-ADC sensor. Additionally with the Dual Zone (-DZ)
option, a second customized controlled output is provided. All units are powered by 12 to 24
VAC/VDC. With optional flash programming via the Sensor Switch VLP mobile device application,
the user can easily change time delay, on mode and photocontrol settings.
FEATURES
•
Automatically Dims/Brightens 0-10
•
VDC ballasts as daylight changes
•
Capable of finding optimum set-point
•
•
Programmable via simple push-button commands
•
Dimming sinks up to 20 mA
•
Green LED Activity Indicator
•
100 Hr Lamp Burn-in Timer Mode
Warranty
Five-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Actual performance may differ as a result of end-user environment and application.
Specifications subject to change without notice
CM ADC
CM ADC
Series
CM ADC
Automatic Dimming Control Sensor
- Ceiling Mount, Low Voltage
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitybrands.com/sensorswitch
© 2014-2019 Acuity Brands Lighting, Inc. All rights reserved. Rev. 01/21/19
Date:
ORDERING INFORMATION
Dual Zone
Visible Light Programming
[blank]
Single Zone
[blank]
DZ
Dual Zone
VLP
1
Project:
CM ADC
Automatic Dimming
Control Photocell Sensor
Temp/Humidity
None
[blank]
Standard
Visible Light
LT
Low Temp/ High Humidity
Programming
C
US LISTED
Example: CM ADC LT
Notes
1. Not available with DZ option
CM ADC
1 of 3
